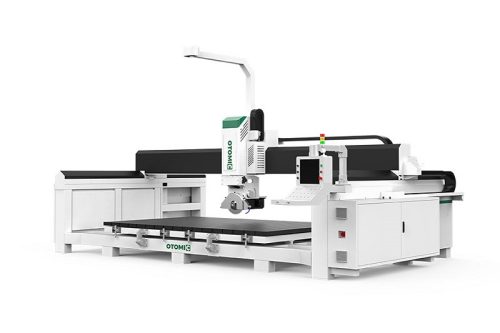

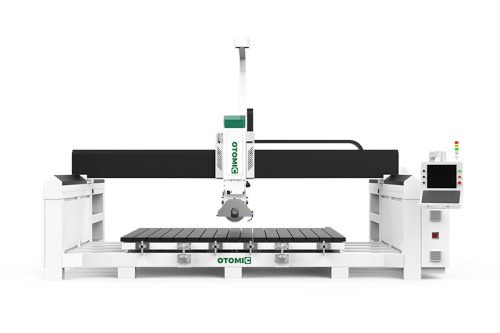

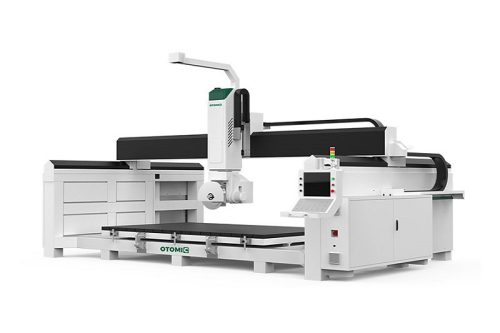

The 4 axis bridge saw is a versatile tool used for cutting granite, marble, and other stone materials. Known for its efficiency and precision, it is an ideal choice for the stone processing industry.

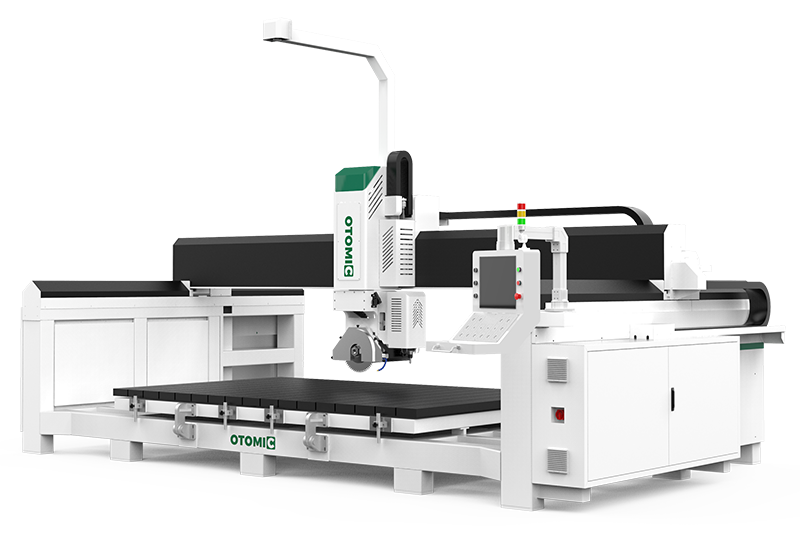

The 4 axis bridge saw machine is specifically designed for diverse processing needs. Equipped with four main shafts for automated processing, it can perform cutting, milling, and other processes on granite, marble, and various stones. Known for its high cutting efficiency, it can produce high-quality stone workpieces. It is warmly welcomed and widely used in Saudi Arabia, Riyadh, Ras Tanura, Duba.
For more information about the 4-axis bridge saws, please feel free to contact us.
Flexible Spindle: The machine is equipped with four spindles that can rotate 80°, enabling flexible processing of stones of various shapes and sizes.
Automated Processing: The machine features an automated system configuration that saves manpower and time, greatly enhancing production efficiency and accuracy.
Various Cutting Capabilities: The milling cutter spindle can perform edge profiling, grooving, drilling, and other processing tasks. It can cut up to a maximum thickness of 100mm.
Bridge Cutting: The bridge design secures the material to prevent misalignment, facilitates the movement of stone, and ensures processing precision and accuracy.
| ES4-3220 4 Axis Bridge Saw | ||
| Travel | 3 axis | 3200*2000*200mm |
| C axis | ±360° | |
| A axis | 0/45° | |
| Speed | X axis | 30mmin |
| Y axis | 30mmin | |
| Z axis | 10mmin | |
| Servo motor | X axis、Y axis | 2KW HANYU absolute value servo motor |
| Z axis | 2KW HANYU absolute value servo motor（with brake） | |
| C axis | 1KW HANYU absolute value servo motor | |
| Guide | Y axis | Taiwan 30# |
| X axis | Taiwan 30# | |
| Z axis | Taiwan 30# | |
| Rack | X axis、Y axis | 2M |
| Worktable | Structure | squared timber |
| Size | 3200×2000mm | |
| Flip angle | 0-85° | |
| Reverse weight | 800KG | |
| Saw blade | Size | 360mm |
| Maximum thickness | 60mm | |
| Screw | Z axis | 3210 |
| Reducer | X/Y axis SHIMPO reducer | |
| Saw blade motor | 15KW Saw blade motor (2930r/min) | |
| Inverter | 18.5KW Fuling inverter | |
| Controller | Blue Elephant customized control system（CAM software） | |
| Low-voltage apparatus | Schneider | |
| Air Pressure | 0.6-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Machine size | 5.85m×4.5m×3.6m | |
| Machine weight | 3.5t | |
The 4 axis bridge saw, equipped with a camera, an 85° workbench, and a 360° cutting head, is capable of processing stone from multiple angles. It finds wide applications in the home decoration industry, kitchen countertop processing, bathroom countertop finishing, and more in Fujairah.
4 axis CNC bridge saw machine can cut and shape countertops, offering high cutting power and ensuring processing quality.

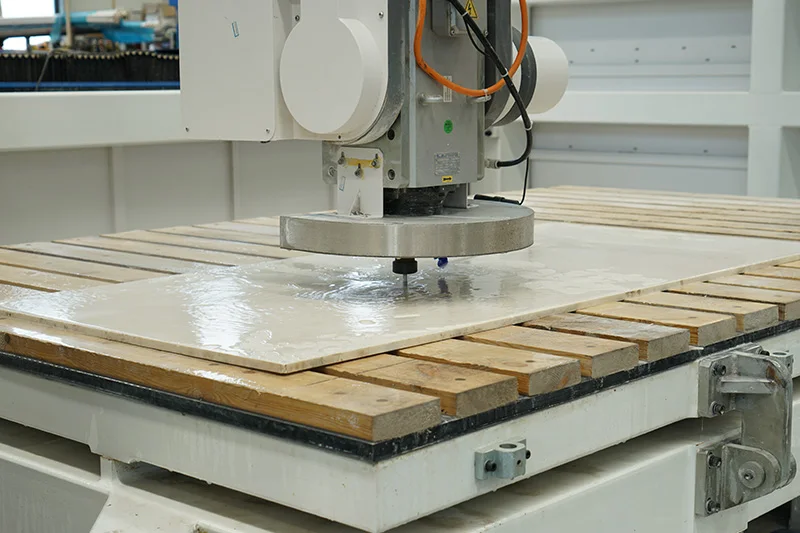

It's automated system works in tandem with the spindle to accurately cut stone, making it suitable for cutting materials of different shapes and sizes.
It can finely process complex patterns in architectural elements, as well as perform precise cutting, thereby improving the quality of construction stone processing.
The machine, equipped with advanced accessories, has high operating power and sufficient power. It can quickly process monuments, memorial halls, etc., thereby improving processing efficiency.
The bridge cut saw, with its rotatable workbench and four spindles, allows for more flexible work, making it easier to process materials from multiple angles.
With 15 years of history, we are a reputable manufacturer known for providing top-quality CNC wood machines. Our long-standing presence in the industry speaks to our commitment to producing reliable and high-performing machines.
The 4 axis bridge saw machine can cut marble, quartz stone, granite and other stone materials, and is used to carve stone sculptures, tombstones, kitchen and bathroom countertops, etc. It can also be used in construction, including cutting stone, concrete bricks, slabs, ceramic tiles, etc.
Blue Elephant bridge saw machine is equipped with built-in CAM software and Lanxiang customized stone CNC machine tool dedicated control system. The interface is user-friendly, easy to learn and operate.
