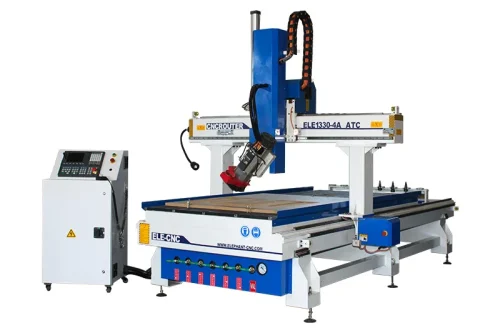

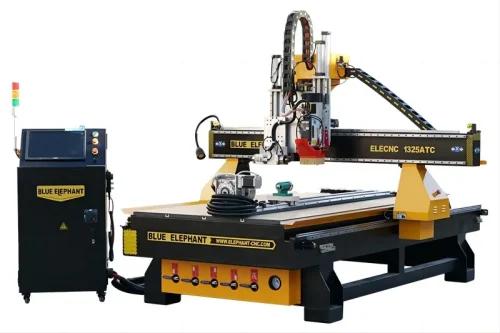

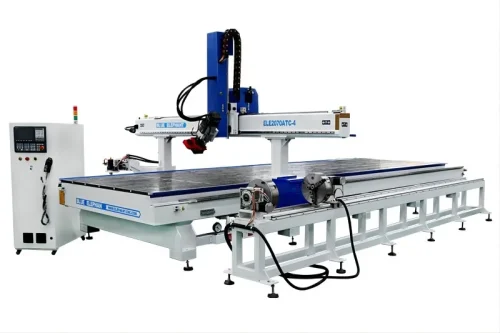

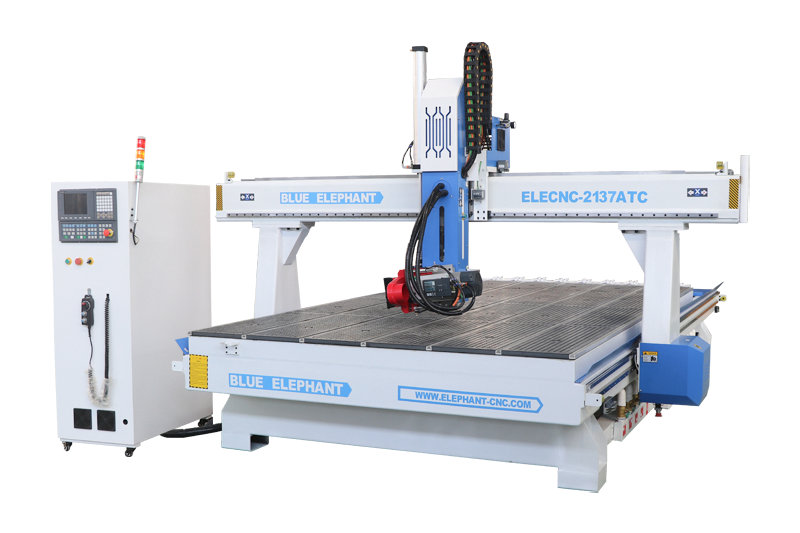

The 4 axis CNC router is engineered for crafting 3D objects. It's capable of handling a variety of materials including wood, MDF, foam, and acrylic. The router comes in models featuring a rotary axis and ATC.
The 4 axis CNC router features a swingable 4-axis spindle, enabling it to engrave in various directions, process 3D materials with flexibility, and finely carve complex patterns. Most specifications can be customized, providing you with the flexibility to choose based on your specific project requirements. The machine is very popular in Saudi Arabia, Dammam, Tabuk, Duba.
If you want to know more details about this type of machine, you can contact us by phone, email or online.
Powerful Drive: The 4-axis spindle is equipped with a high-power drive system, capable of engraving and cutting 3D cylindrical shapes.
High Precision: Utilizing advanced ball screws, the operation is smoother and the processing accuracy is higher.
High Efficiency: With a vacuum pump and vacuum workbench, the six working areas can be processed separately or simultaneously, improving production efficiency.
Dust Removal and Cleaning: A new type of dust collector is installed to automatically remove dust, keep the spindle and workbench clean, extend the service life, and reduce physical harm to workers.
| Serial Number | S20190725W |

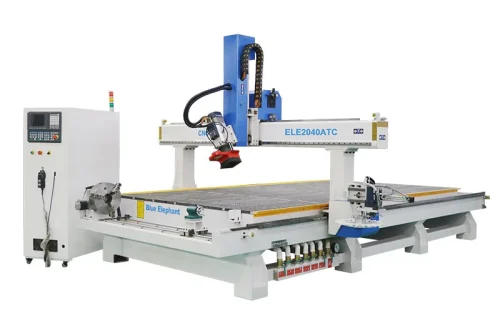

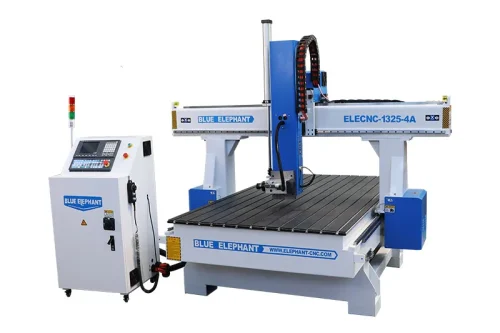

| Model | ELECNC-1325 4 Axis, 1530 4 Axis, 2030 4 Axis, 2040 4 Axis, etc. |
| Working area | 1300 x 2500mm, 4x8ft, 5x8ft, 5x10ft, 6x12ft, etc. |
| Spindle | 4 Axis air-cooling / water-cooling spindle |
| Inverter | 11KW Fuling inverter |
| Tool magazine | optional |
| Control system | Taiwan LNC with MPG handle wheel |
| Motor and driver | Servo motors and Servo drivers |
| Switch | Japan OMRON |
| Working Table | Aluminum T-slot & vacuum table |
| limit switch | Japan OMRON limit switch |
| Lubrication system | 1.5L Auto oil lubrication system |
| Voltage | 110-450V 3Phase 50-60HZ |
| Vacuum pump | 7.5KW vacuum pump, two stage ,air-cooled , two impeller |
| X,Y,Z Transmission | Taiwan J &T Helical rack and gear box , 1.25M ,Taiwan PMI #25 Rail
Taiwan PMI #25 Linear Bearing& Taiwan TBI Ball Screw #2505 |
| Cable | Shanghai Cardiff cable,CE ,UL certification |
| Dust collector | Complete 1.5KW new type dust collector , CE certification, equal as 4KW old type |
| Tool sensor | Auto tool sensor |
The 4-axis CNC engraving machine, known for its high speed, efficiency, and ability to process complex 3D patterns with high precision. The machine passes through Jubail Commercial Port and is widely used in fields such as furniture production, woodworking, decoration, and industrial manufacturing. It can also serve as an auxiliary processing tool for panel furniture.

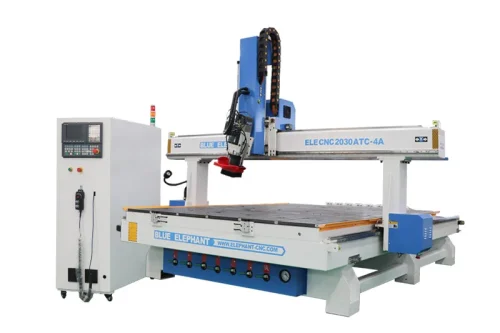

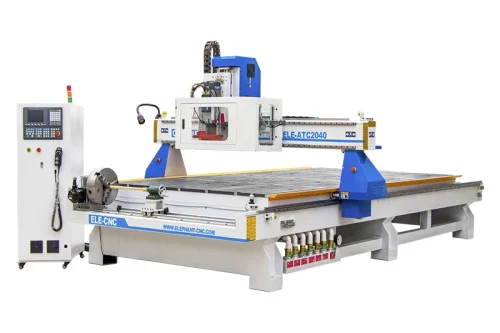

Equipped with a rotating spindle and an automatic tool changer, it’s ideal for high-precision and complex machining, making it perfect for crafting intricate 3D workpieces.

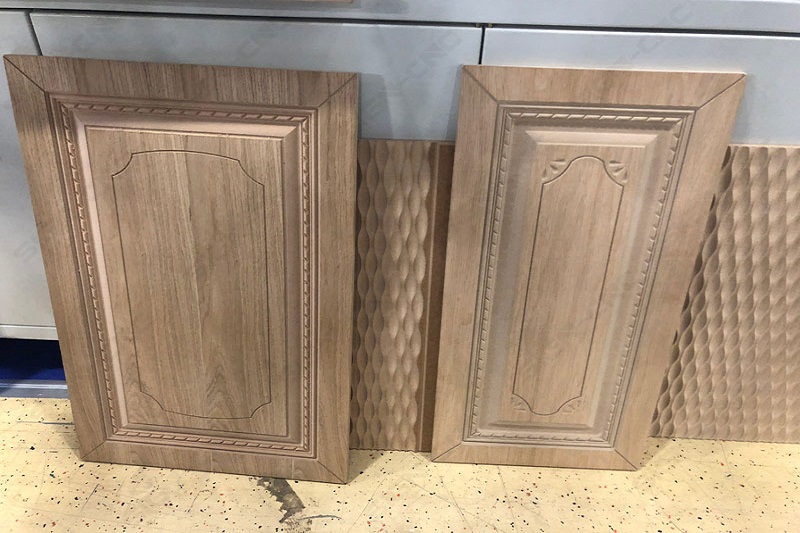

The 4-axis spindle can process a variety of angles and shapes, making it widely used in the manufacturing of cabinets, tables, chairs, doors, windows, and other furniture pieces.

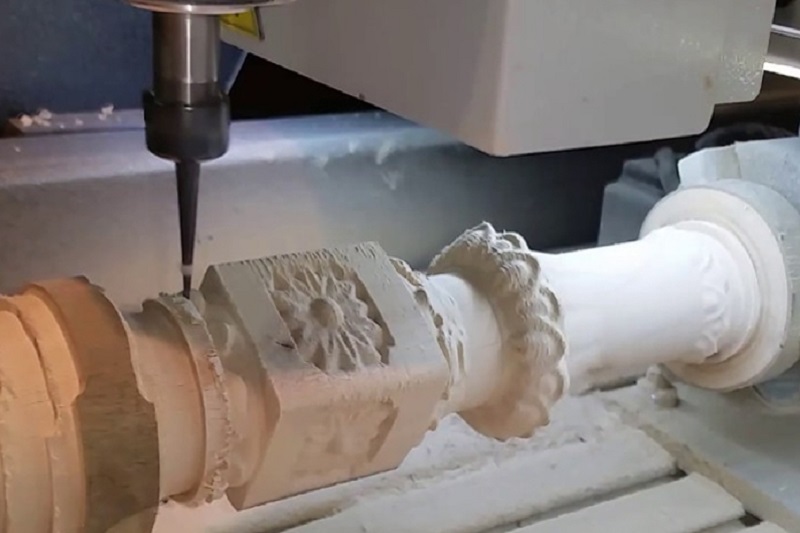

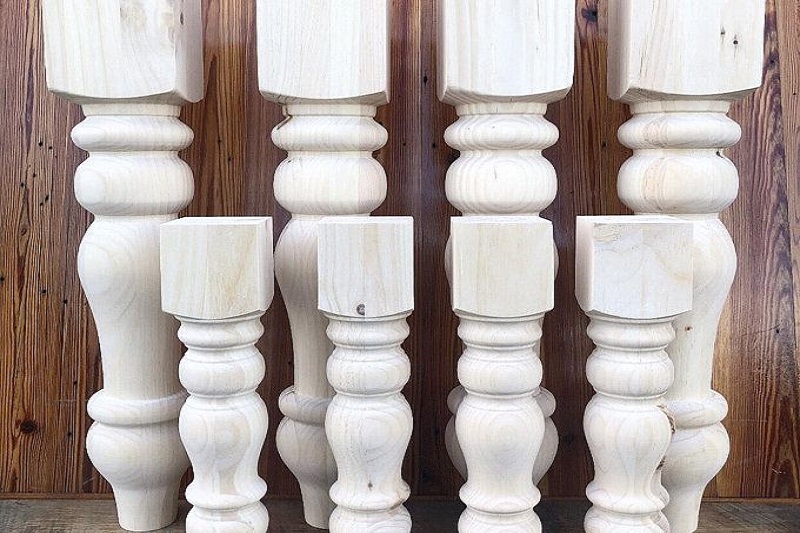

The 4 axis CNC router can shape wood into circular and cylindrical forms, making it useful in crafting computer desks, wooden railings, table legs, and more.

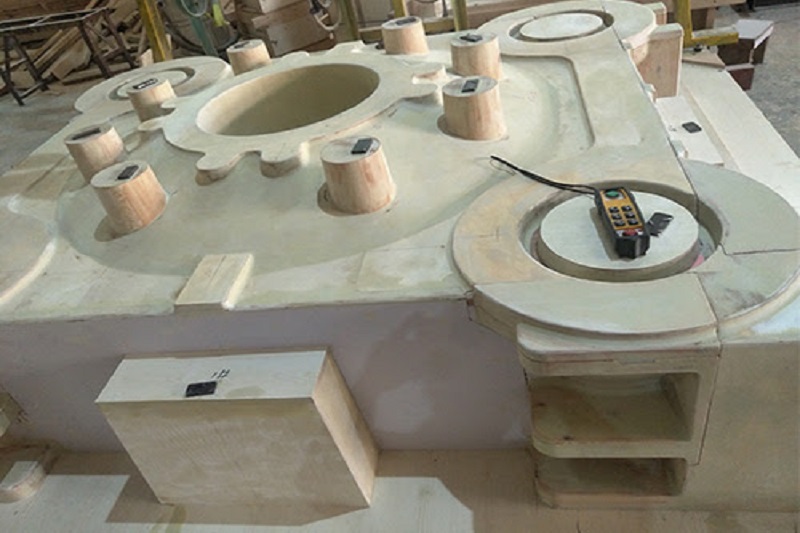

The 4 axis CNC router can perform processing tasks in various industrial fields such as sign making, automotive interiors, and stairs.

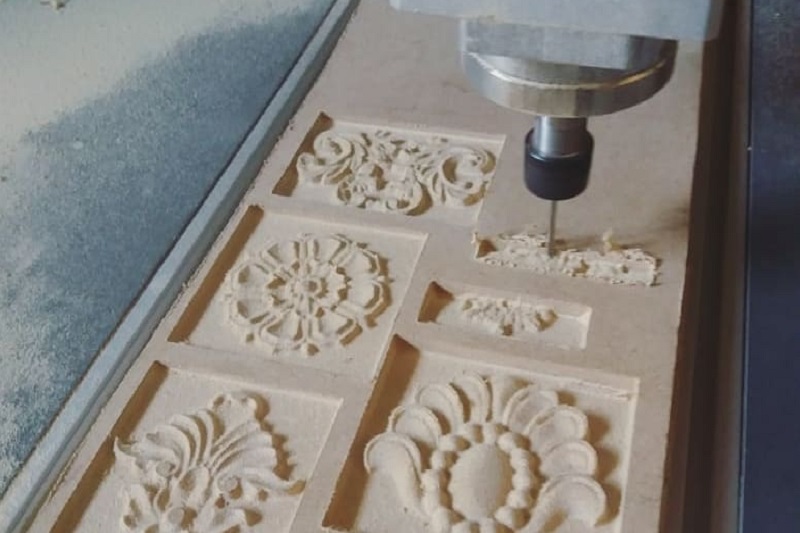

The 4 axis CNC router can process a wide range of materials such as density board, plexiglass, acrylic, MDF, plastic, and soft metal, making it ideal for decorative applications.
Except for wearing parts, the entire machine has a one-year warranty.
The 4-axis CNC router machine has four processing directions of X, Y, Z, and A axes, which can realize the processing of three-dimensional objects. It can also be used in cabinet doors, solid wood doors, computer desks, craft window processing and other fields, as an auxiliary to the panel furniture production line machine.
The true fourth axis is the axis of rotation, allowing the cutting head to rotate around the X, Y, and Z axes. It is capable of continuous rotation, meaning it can spin 360 degrees without stopping. A true fourth axis is also called a rotary table or trunnion table.
The 3-axis CNC machine moves in the X, Y, and Z directions. It can cut and engrave on the three sides of the workpiece. The 4-axis adds a rotation axis, the A-axis, allowing rotation on the A-axis. A 5-axis model has two additional axes, either A, B or C depending on the machine configuration, allowing rotation on two of the three axes.
