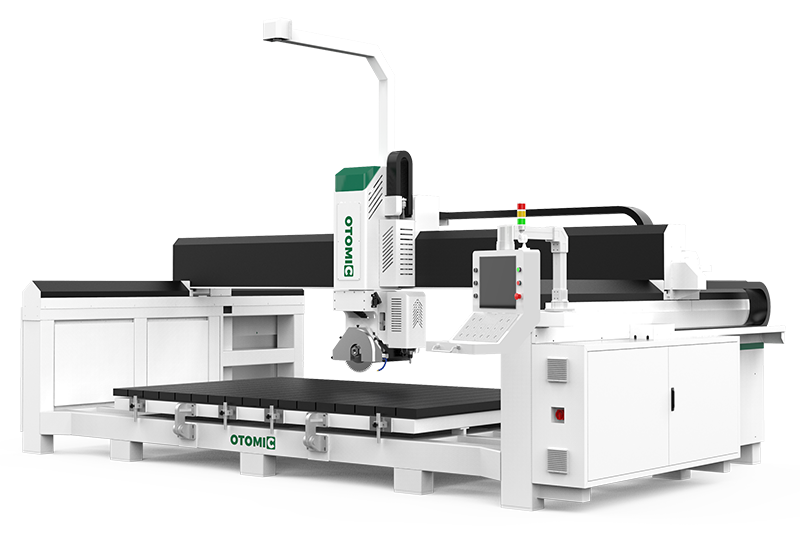

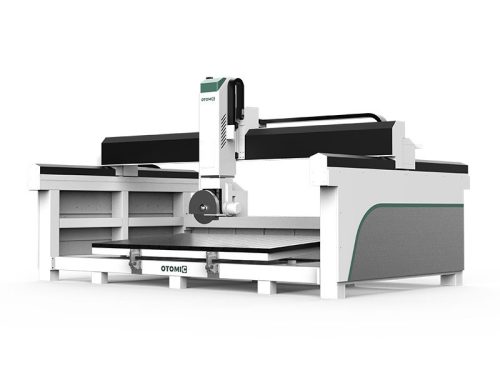

The 5 axis bridge saw is a robust cutting machine specifically designed for stone cutting. It is capable of performing 90-degree bevel angle cuts on materials such as marble, granite, and ceramic tiles.
The 5-axis bridge saw machine, equipped with five spindles and internationally renowned brand components, is capable of performing a variety of processes and cutting at multiple angles. It ensures accurate and efficient processing of different shapes and types of stone. It is well received and warmly welcomed in Saudi Arabia, Jubail, Yanbu, Khobar.
If you’re in need of a more powerful and efficient cutting machine, the 5-axis bridge saw is an excellent choice.
Sturdy and durable: The bridge, slide rails and tool holder are made of cast iron, which are strong and durable, with low vibration during processing and higher overall stability.
Automatic cutting: With built-in programming system, the machine will automatically work according to the set program, greatly improving production efficiency and saving manpower.
Flexible and convenient: The A-axis cutting head can be tilted 90 degrees, and the C-axis can be rotated 360 degrees, making processing of special-shaped materials more flexible.
Five-axis high efficiency: Multiple spindles are installed, which can perform various processing techniques such as chamfering, arc, special-shaped cutting, milling, and edge grinding.

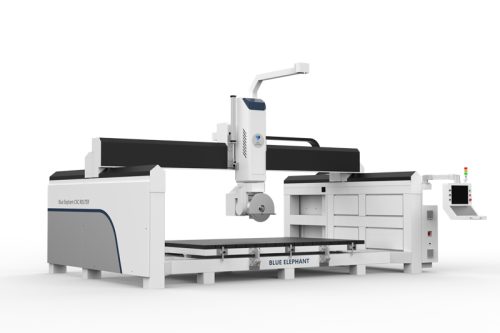

| ES5-3220 5 Axis Bridge Saw Machine for Granite Stone | ||
| Working travel | X, Y, and Z | 3200*2000*400mm |
| C axis | ±360° | |
| A axis | 0-90° | |
| Moving speed | Xaxis | 30m/min |
| Yaxis | 30m/min | |
| Zaxis | 15m/min | |
| Servo motor | Xand Y | 1300W absolute servo motor |
| Zaxis | 1300W absolute servo motor with brake | |
| A and C | 1000W absolute servo motor | |
| Guide rail | X, Y, and Z: # 30 | |
| Rack | X、Y | 2MT-WIN |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-80° | |
| Max. weight for turning | 800KG | |
| Saw | Dimension | 450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210PREYP |
| Reducer | X/Y: Japan SHIMPO | |
| Saw motor | 11KW motor, rated: 3000r/min | |
| Inverter | 15KW BRICH | |
| Control system | Blue Elephant customized system (built-in CAM software) | |
| Low-voltage electronics | French SCHNEIDER | |
| Working air pressure | 0.7-0.8Mpa | |
| Voltage | 380V/3P/50HZ | |
| Overall dimension | 5.85×4.5×3.3m | |
| Weight | 5.5ton | |
The 5 axis bridge saw can realize various types of special-shaped cutting, arcs, chamfering, etc. at any angle. It is widely used in kitchen and bathroom, decoration, stone carving, signage, handicrafts, construction and other industries. It is an ideal machine for stone processing in Ras Tanura.
Bridge cutting saws have the advantage of high-precision processing and can cut kitchen and bathroom countertops, etc., and are suitable for use in stone kitchen and bathroom applications.
It can process complex materials and meets the requirements of the decoration industry for material processing.
The multi-spindle can be rotated and tilted to facilitate the processing of sculptures of different types and sizes.
It can realize the bevel cutting process and process a variety of more artistic and refined signs.
Stone processing materials are mostly used in the construction field, and bridge cutting saws can process different building elements.
The 5-axis bridge saw is the most versatile as it can cut stone anywhere around the vertical axis. The frame of the bridge saw is composed of a bridge, so it is called a bridge saw. It moves on the X-axis and Y-axis at both ends through the motor.
The 5-axis bridge saw machine is an advanced CNC cutting equipment, usually used for processing stone, marble, granite, ceramics and other materials. Compared with traditional cutting equipment, 5-axis bridge saw machines have higher precision, wider cutting capabilities and a higher level of automation.
1. Adopts self-developed five-axis bridge saw head and high-rigidity cast rotating bracket.
2. Using high-precision RV reducer, the saw head rotation accuracy is better. The mobile suction cup combined with CAM software makes it easier to fix the material and prevent the saw blade from overcutting.
3. The workbench can rotate up to 80 degrees, which facilitates the loading and unloading of stones and saves manpower.
4. The control system has built-in CAM software, which can easily make drawings and generate paths, making it easier to operate.
