Description

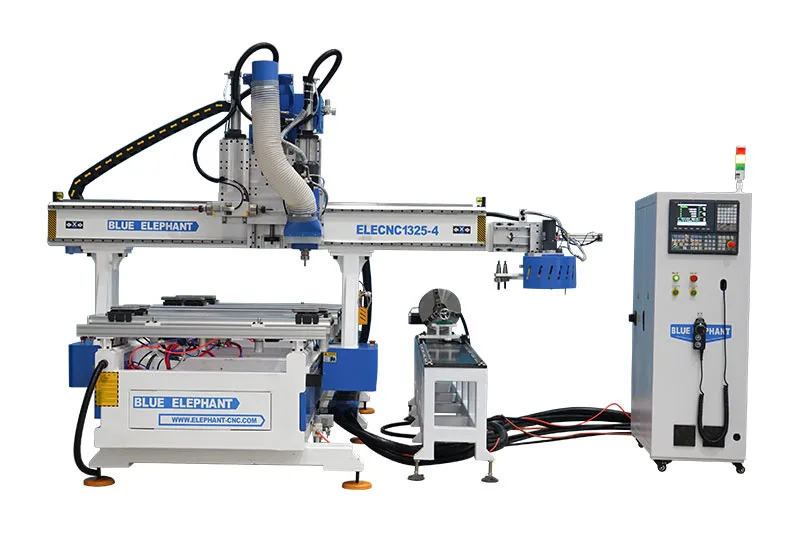

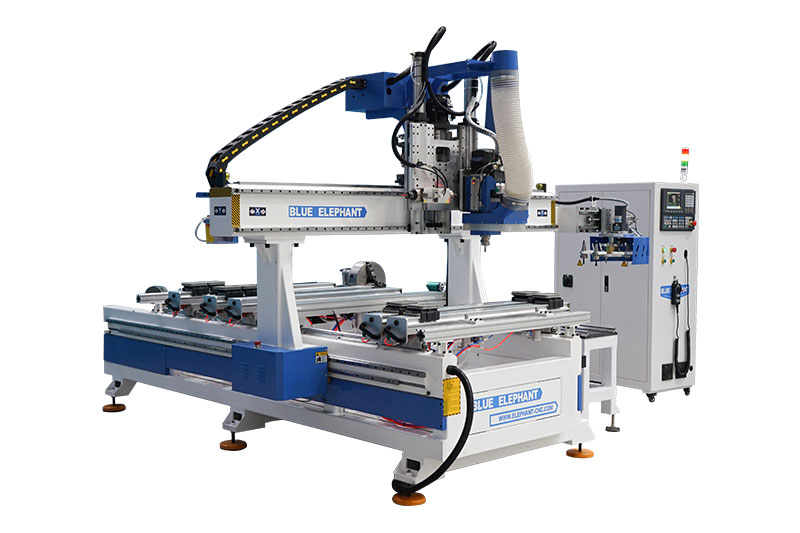

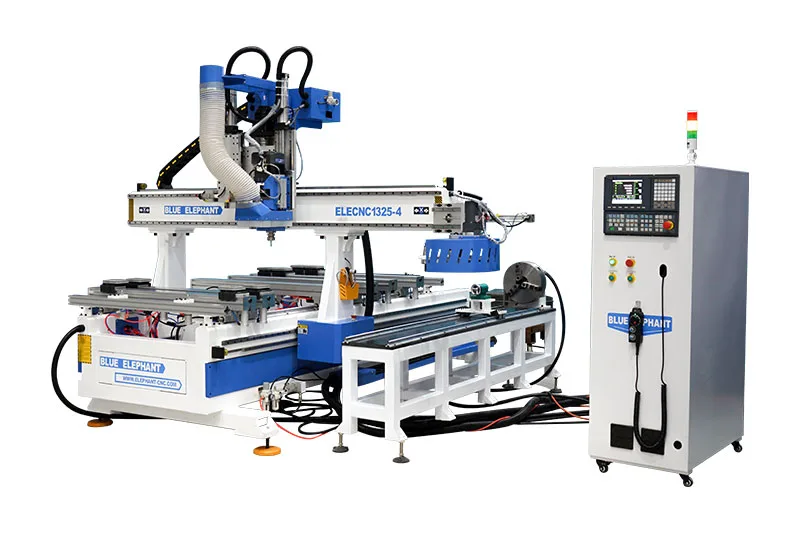

The Blue Elephant 1325 ATC CNC router machine is a versatile machine equipped with a rotary device and an air-cooled spindle, designed for efficient and precise machining. With a Syntec 6MB 4-axis control system and a German PTP workbench, this router ensures ease of use and high performance, making it ideal for a range of applications from furniture making to mold engraving. It passes through Jordan, Port of Aqaba, Saudi Arabia, and Ajman.
Features
- The 1325 ATC CNC router machine features upgraded servo motors and drives for enhanced efficiency and performance.

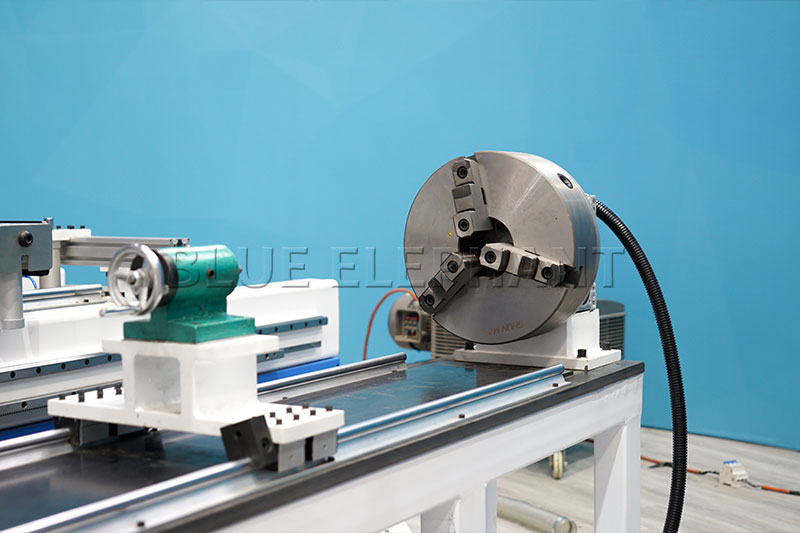

- It includes a movable rotating device, making it highly suitable for intricate engraving tasks.
- Equipped with a rotary-type tool changer, it operates twice as efficiently as ordinary machines.
- Constructed with thickened and enlarged materials, this router ensures greater durability and longevity.
Parameters
| Working area | 1300x2500x200mm effective working area |
| Spindle | 9.6kW HSD air cooling spindle |
| Spindle speed | 24000 RPM |
| Inverter | 11kW Taiwan Delta inverter |
| Tool magazine | 8pcs carousel tool magazine |
| Control system | Syntec 6MB 4 axis control system |
| Motor and driver | Japan YASKAWA |
| Switch | SCHNERDER |
| Working Table | Schmalz PTP working table, 6 lines |
| Limit switch | Japan OMRON limit switch |
| Reducer | Japan Shimpo reducer |
| Lubrication system | Automatic lubrication |
| Voltage | 380V, 50Hz, 3 phase |
| Vacuum pump | German Becker pump |
| X,Y,Z Transmission | X, Y are equipped with spiral gear rack pinions, and Z axis is equipped with TBI ball screw, which is more durable. |
| Frame structure | Heavy-duty structure |
| Tool sensor | Automatic tool sensor |
| Command Language | G Code |
| Guarantee | 12 months |
