Description

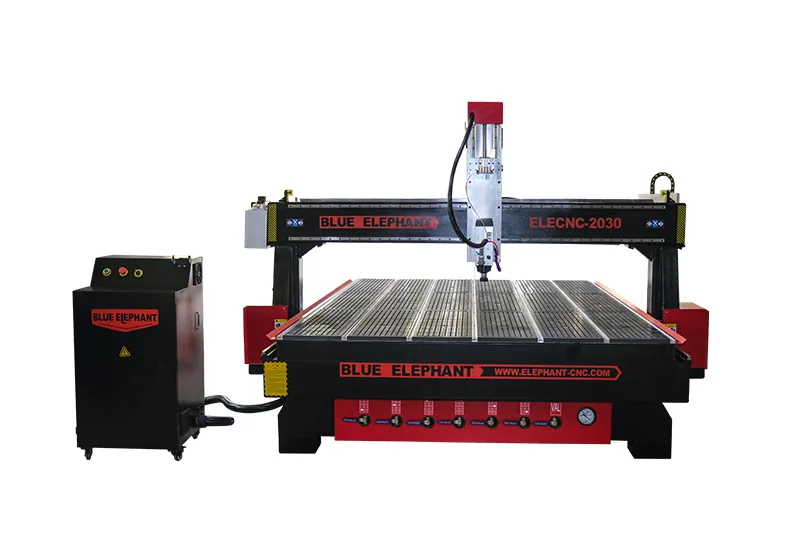

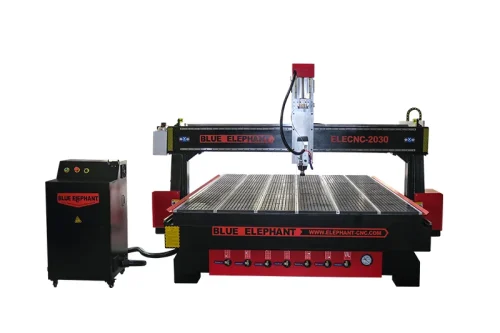

Our 3 axis engraving machine is a high-efficiency model featuring three spindles. It’s equipped with a flexible DSP A11 handle controller and a double-sided independent chassis for machine protection. The machine boasts a thickened welded steel tube fuselage, a rigid gantry, and robust supports. It is hot selling in Oman, Sohar, Salalah, Muscat.
Features
- On Sale: This product is currently available at a discounted price.
- Customizable: We offer model and accessories customization to provide you with exclusive services.
- Lifetime Support: All purchased products come with lifetime technical support.
- Quality Construction: The machine features a precise welding structure and a heavy-duty machine tool body for durability and performance.
Parameters
| Serial Number | S20191022C |
| Model | ELECNC-2030 |
| Working area | 2000x3000x400mm |
| Spindle | Italian HSD 6.0KW Air Cooling spindle |
| Inverter | 7.5KW DELTA inverter |
| Control system | DSP A11 handle controller with USB port |
| Motor and driver | Stepper motor FL118 and YAKO2811 bigger driver |
| Working Table | T-slot and Vacuum working table |
| limit switch | Japan OMRON limit switch |
| Lubrication system | Auto Oil Mist Sprayer |
| Voltage | 380V/50HZ/3PH |
| Vacuum pump | 7.5KW Water Circulation Vacuum Pump |
| X,Y,Z Transmission | Helical rack gear for X, Y axis, Taiwan TBI ball screw for Z travel |
| X,Y,Z Rail | Taiwan PMI linear guide and rails, 20# |
| Machine tool frame structure | A precise welding machine structure, it is a heavy-duty machine tool body. |
| Dust collector | 3.0KW double bags dust collector |
| Software Compatibility | Artcam 2012 software for free |
