Description

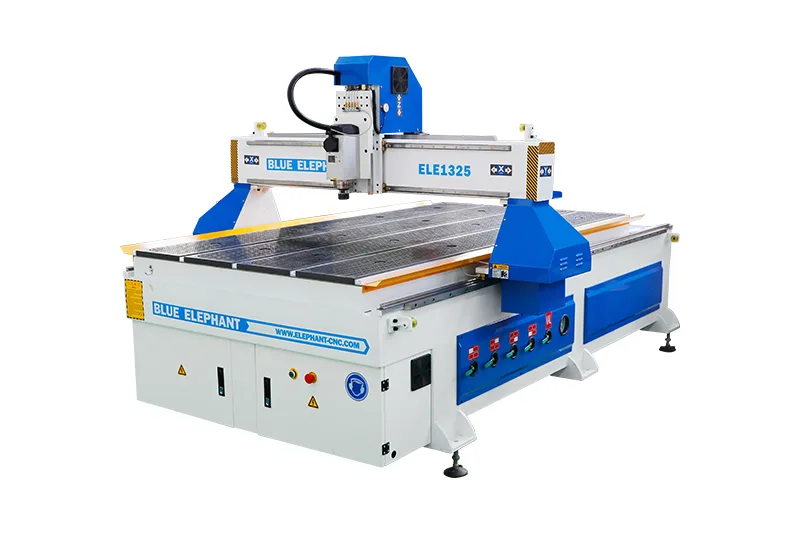

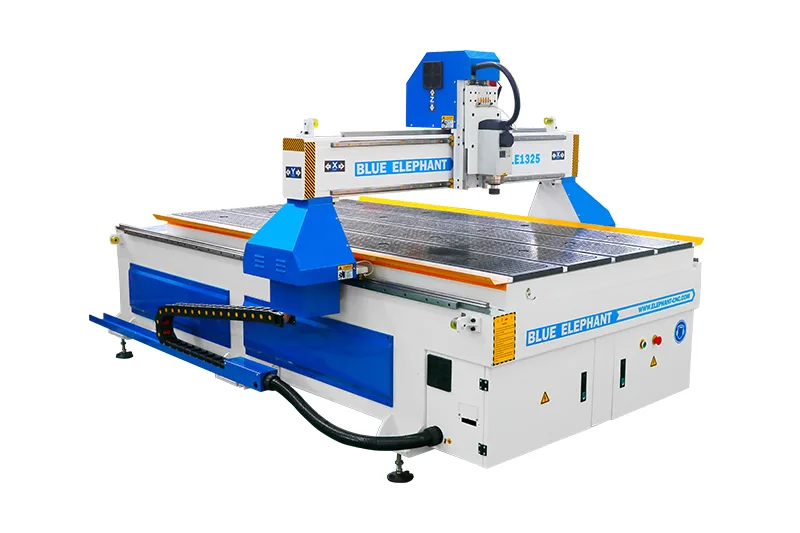

This is a versatile 1325 3D Wood CNC Router Machine, equipped with a user-friendly DSP A11 control system and an adjustable screw design to ensure precision during operation. It’s an excellent choice for beginners due to its easy-to-use handle. It is hot selling in Jordan, Aqaba, Bahrain, United Arab Emirates.
Features

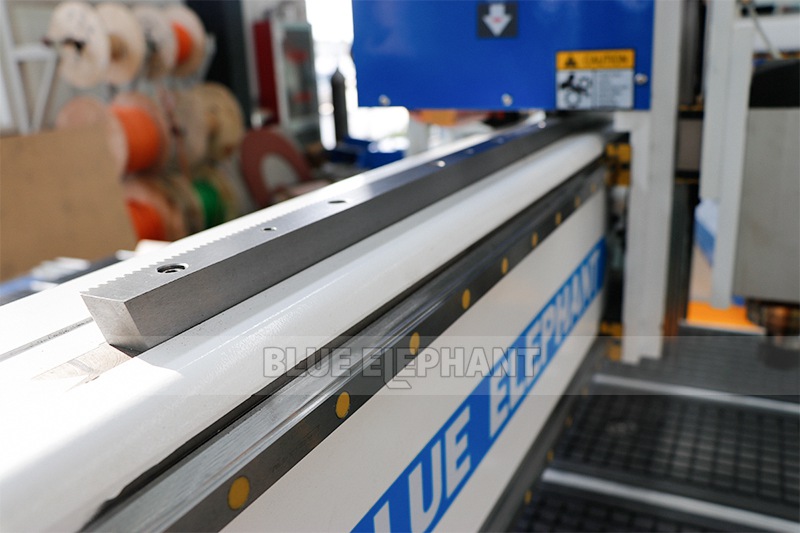

- High Precision and Durability: The machine offers high precision and a long lifespan, thanks to its rack and pinion transmission system.
- Fast Speed: It operates at a high speed, enhancing productivity.
- Wide Application: It’s widely used in the wooden furniture industry, advertising industry, handicrafts, molds, and more.
- Easy Operation and Installation: The machine is easy to operate and install. We also provide usage training upon delivery.
Parameters
| X,Y,Z Working Area | 1300*2500*200mm |
| Color | White and Blue (can be Customized) |
| Working Voltage | 380V/3PH/50Hz (option) |
| Table | Vacuum table with 4 zones |
| Control System | DSP A11 control |

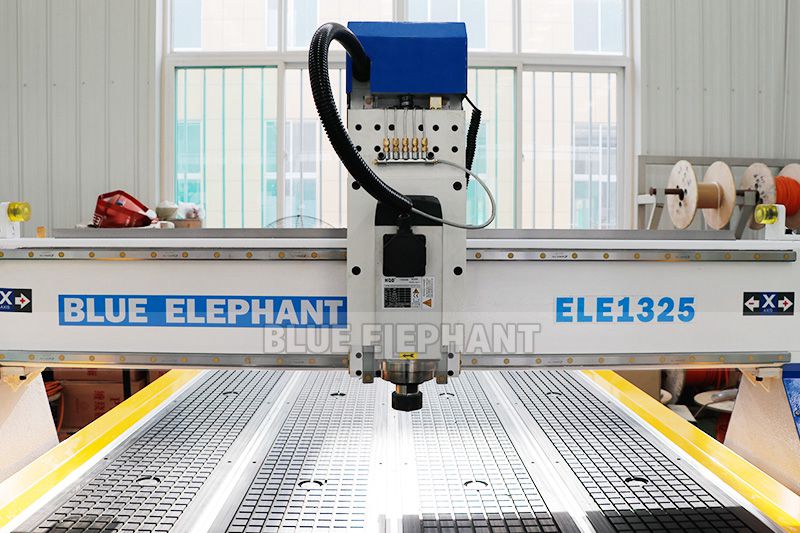

| Spindle | HQD 4.5kw air cooling spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | 5.5 KW Fuling inverter |
| Drive Motors | FL118 Motor and Leadshine 860H |
| Frame | New Type Heavy Duty Body |
| Lubrication | Manual Lubrication System |
| Gantry structure | Steel Gantry |
| Option | Automatic Oil Mist Cooling |
| X, Y Structure | ABBA/PMI 20# Guide Rails |
| Z Structure | TBI Ball Screw Ball Screw Transmission |
| Tool Sensor | Semi-Automatic Tool Sensor |
| Limited Switch | Japan Omron Limited Switch |
| Wire | High Soft Shjeld with Copper Wire to Protect Against Static Electricity |
