Description

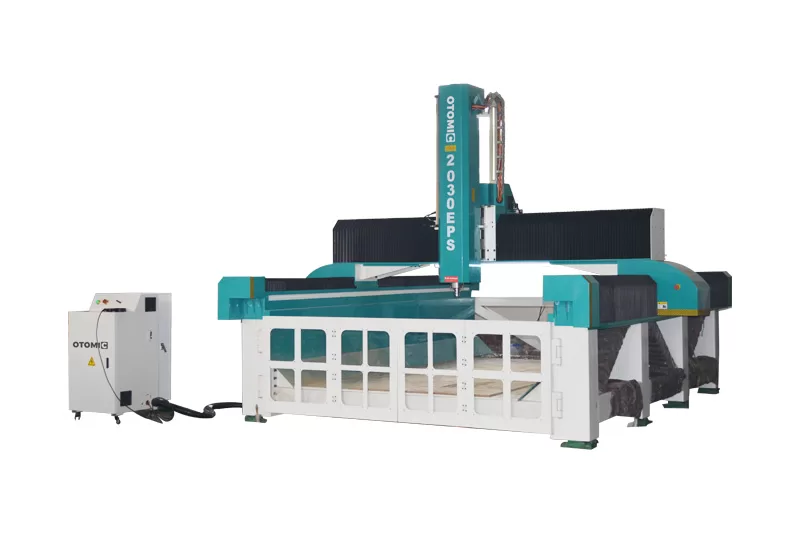

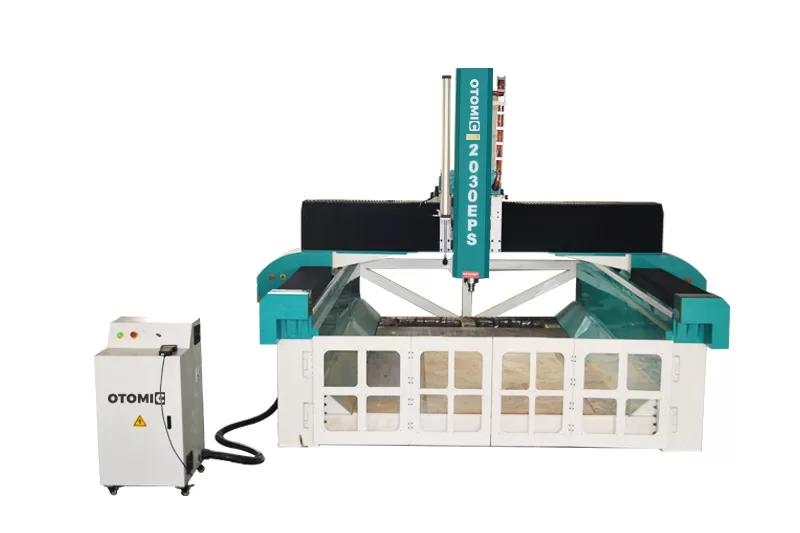

The EPS foam CNC cutting machine is a large, heavy-duty cutting machine secured with screws for stability for sale. Composed of advanced global components, it offers robust processing power, ensuring high production efficiency. This machine is the ideal choice for processing large workpieces. It is hot selling in Oman, Sohar, Salalah, Muscat.
Features
- Powerful Water-Cooled Spindle and 4-Axis Control System: Provides sufficient operating power, reduces processing time, and improves overall efficiency.
- Dust Cover Protection: Shields the spindle and keeps the workbench clean, aiding in machine maintenance and extending its lifespan.
- Stable Split Structure Design: Reinforced with screws to minimize vibration during operation, resulting in more stable and accurate processing.
- Large Effective Working Area: Accommodates the processing of large materials, making it suitable for extensive foam material projects.
Parameters
| Descriptions | Parameters |
| X,Y,Z Working Area | 2000x3000x900mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
| X,Y,Z Repositioning Accuracy: | ±0.01mm |
| Table Surface | 20# Iron flat table |
| Frame | Divided structure ,Fixing with screws |
| Y Structure | Helical rack gear , 4pcs HIWIN inear guide |
| X,Z Structure | HIWIN #35 Linear guide |
| Max. Power Consumption | 12KW |
| Max. Rapid Travel Rate | 40000mm/min |
| Max. Working Speed | 30000mm/min |
| Spindle Power | 7.5kw |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 1.3KW YASKAWA servo |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
| Command Language | G Code |
| Operating System | NK 105 |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER32 (20mm) |
| X,Y Resolution | <0.01mm |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
