Description

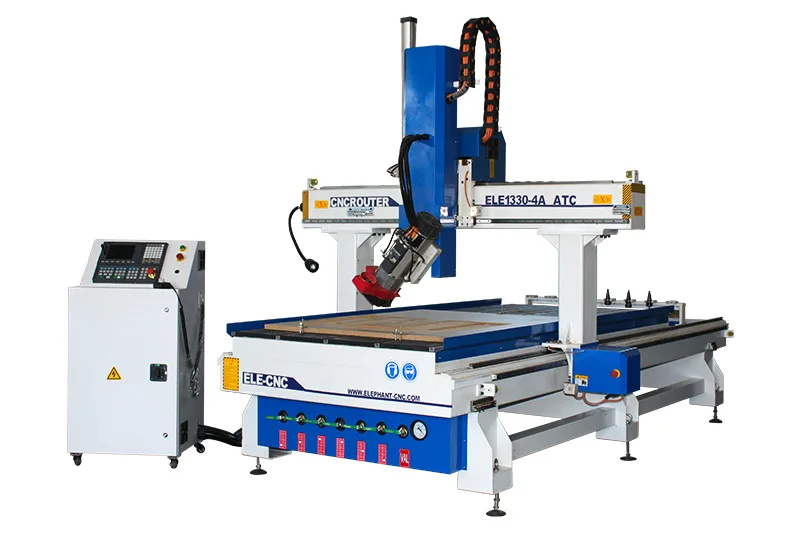

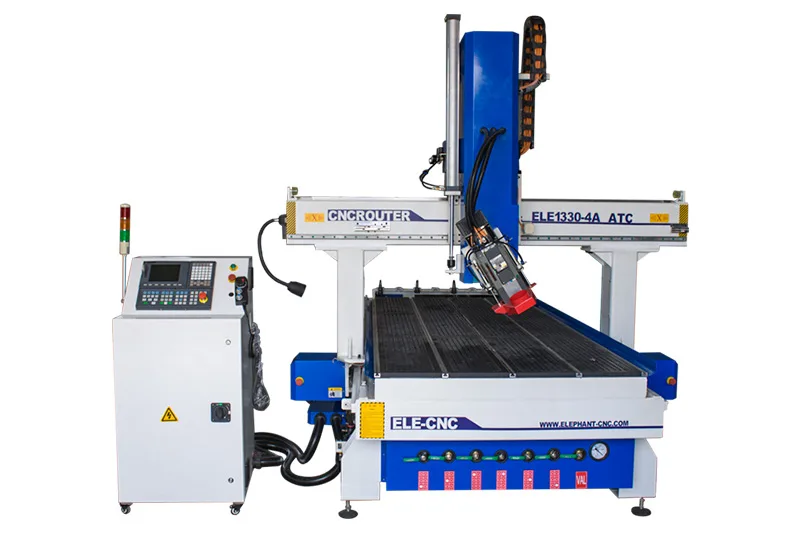

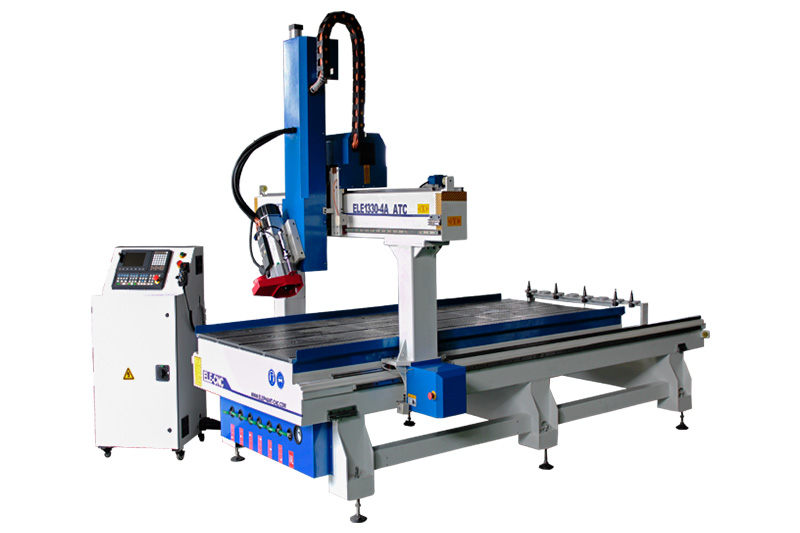

The 4-axis CNC machine is a cost-effective solution for intricate and refined pattern engraving. This 4-axis CNC router features an automatic tool changer, utilizing different tools to process variously shaped materials. The machine incorporates a range of international brand accessories, ensuring the overall quality of the machine. It is hot selling in Syria, Latakia, Tartus, Oman.
Features
- The heavy-duty frame structure has been processed by heat treatment such as annealing. It is strong, durable and has good load-bearing ability, which can meet the needs of processing heavy materials.
- Equipped with Taiwan SYNTEC/LNC controller and 9kwATC spindle, the machine operates quickly and can flexibly process 3D workpieces and side grooving.
- A dust removal system can be configured to keep the machine clean and tidy, which is conducive to creating a dust-free workshop.
- Equipped with 5 cylinders and vacuum pumps, the exhaust cooling effect is good, which is beneficial to the normal operation of the machine.
Parameters
| Model | ELECNC1330 4 Axis ATC |
| X,Y axis travel | 1300x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 600mm, option: 400mm, 500mm, 700mmetc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Tool magazine | lineartype auto tool changer Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2, Y3) |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
