Description

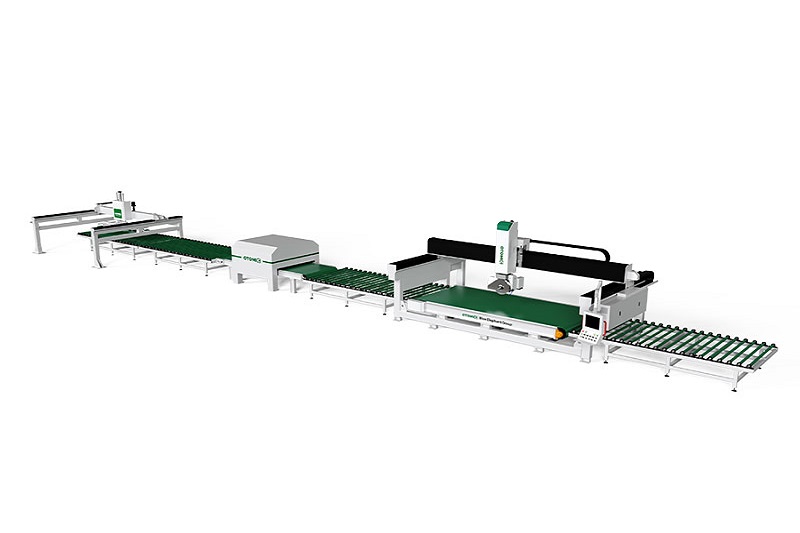

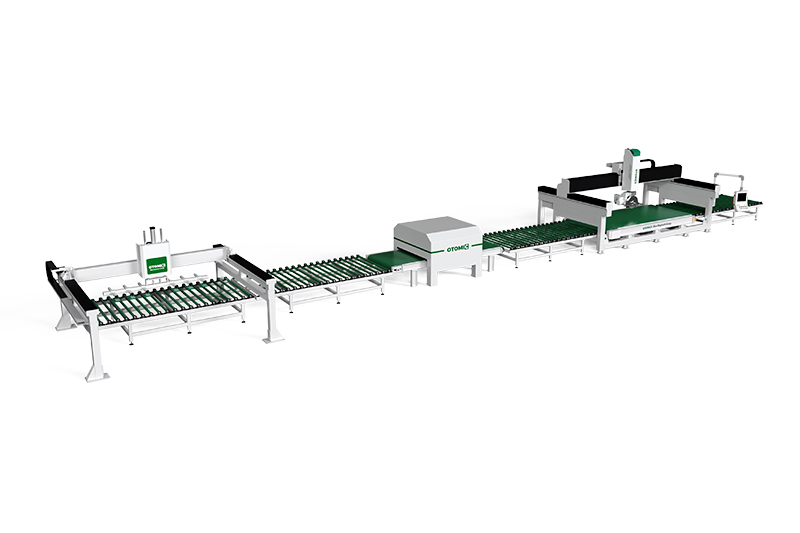

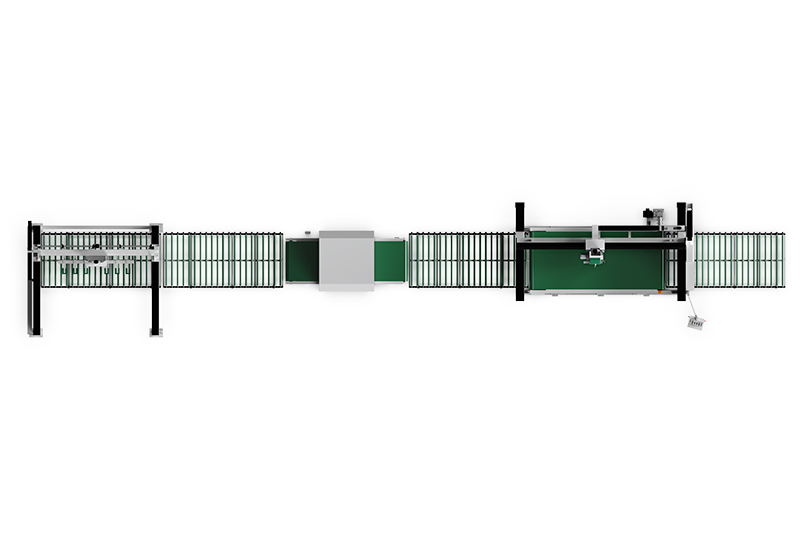

The CNC stone saw is a highly automated production line that includes a loading machine, a five-axis bridge cutting machine, and an unloader. This economical and popular cutting machine offers a fully automatic loading machine that transports the stone to the five-axis bridge cutting machine, saving time and effort. The five-axis bridge saw machine can automatically take pictures, position, and cut according to the settings, ensuring accurate and intelligent cutting. The unloader can automatically unload materials, saving manpower and improving efficiency. It is sold in Saudi Arabia, Yanbu, Ras Al-Khair and passes through Yanbu Commercial Port.
Features
- The fully automatic control system and integrated production line simplify the production process and achieve high production efficiency.
- The AI automatically sets the knife, positions, and cuts according to the settings, saving loading and unloading time and labor costs.
- The average cutting speed can reach 25m/min, indicating fast processing speed and higher cutting efficiency.
- The three-body integration operates smoothly, ensuring processing quality and making the workpieces smoother and more precise.
- The machine has stable performance, reliability, and durability, is suitable for processing irregular materials, and offers high cost performance.
Parameters
| QX3400-5X-SP Quartz Stone Cutting Production Line | |||
| Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm |
| C axis | ±365° | ||
| A axis | 0-90° | ||
| Maximum thickness | 80mm | ||
| Moving speed | 25m/min | ||
| Spindle | 22kw water cooling spindle, 4000rpm | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Worktable (optional) | Max. weight for feeding | 1500kg | |
| Max. speed for feeding | 10m/min | ||
| Saw | Dimension | 450mm | |
| Size | 6000×3500×3600mm | ||
| Loader | Working travel | X, Y, and Z | 3500*4000*1000mm |
| A axis | 0-90° | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Moving speed | 25m/min | ||
| Max suction size | 3200×1200mm | ||
| Min suction size | 300×150mm | ||
| Power | 8kw | ||
| Weight | 3000kg | ||
| Machine size | 5000×5800×3800mm | ||
