Description

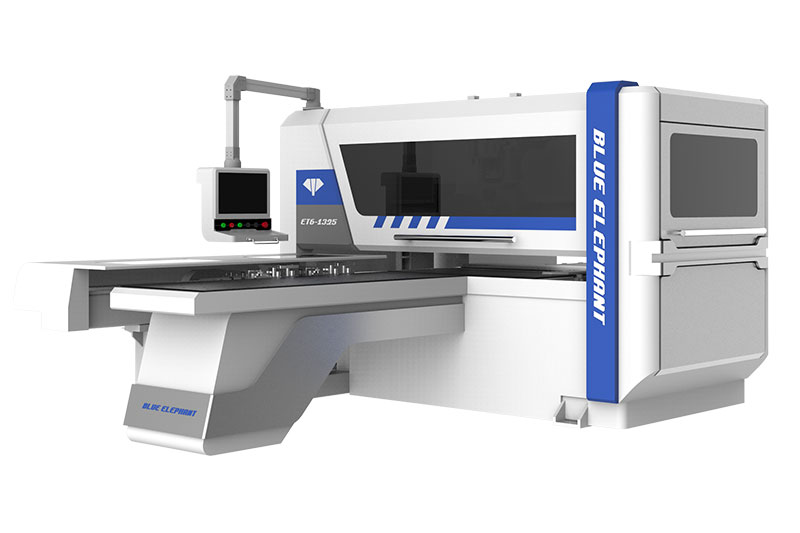

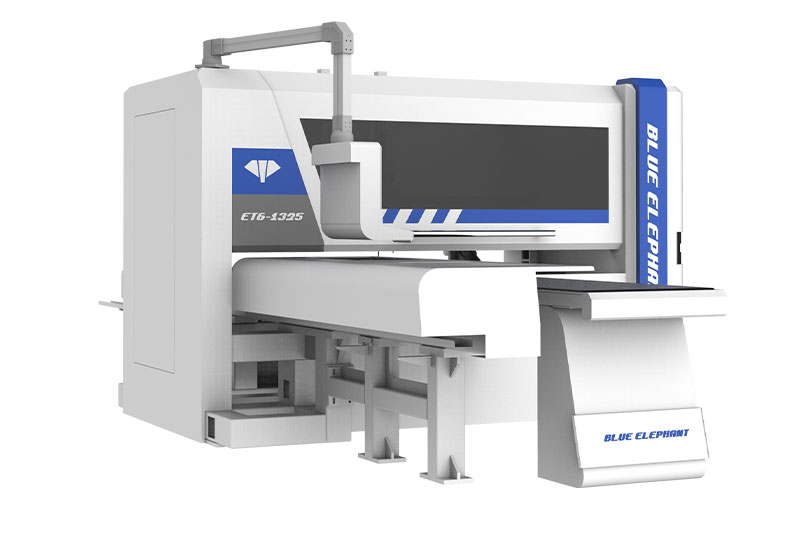

Introducing our latest six-sided CNC drilling machine wood, designed to automate board feeding and positioning, enhancing drilling accuracy and preventing edge banding from being scratched. This advanced machine is perfect for high-precision wood drilling tasks.
This CNC drilling machine wood streamlines the drilling process, making it ideal for the efficient production of customized panel furniture. This machine is widely used in Ankara, Turkey, and Jeddah, Saudi Arabia.
Features
- Comprehensive drilling: Capable of drilling holes on the front, back, and four sides simultaneously, eliminating the need for manual turning and saving time.
- High stability: Produces smaller errors and offers higher processing accuracy, ensuring more stable and reliable results.
- Integrated automation: Connects with other equipment to achieve automated, intelligent production, optimizing the efficiency of customized panel furniture manufacturing.

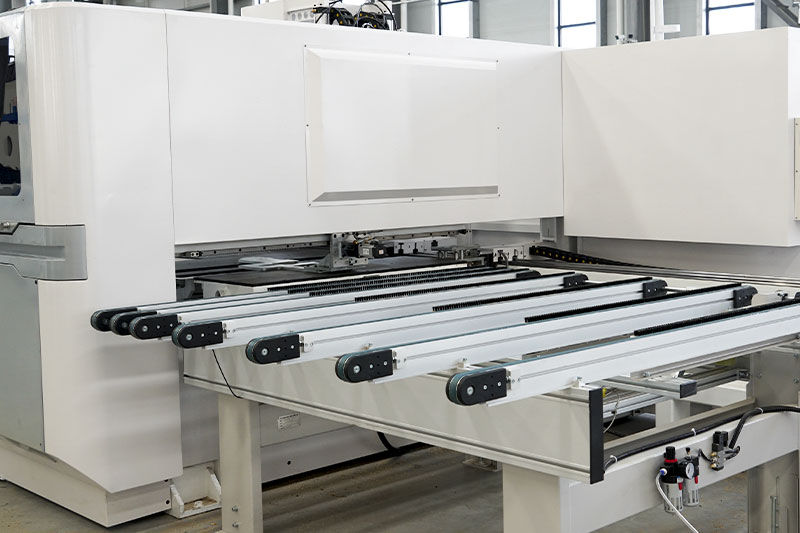

- Smooth operation: The pneumatic floating bead work surface allows easy movement of boards without scratching, enhancing overall usability.
Parameters:
| Model | ET6 |

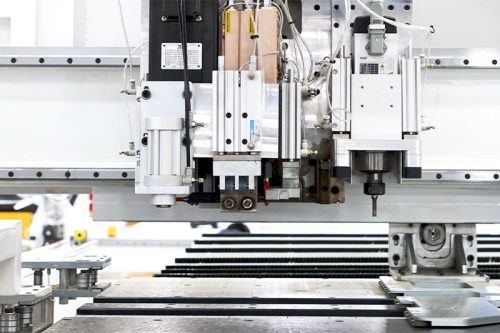

| Vertical spindle unit | 10(X axis)+7(Y axis) |
| Horizontal spindle | 8(X axis)+2(Y axis) |
| Milling Motor power | 2.2kw+1.9kw |
| Min.width of work-piece | 40 mm |
| Max.width of work-piece | 1200 mm |
| Min.length of work-piece | 150 mm |
| Max.length of work-piece | 2400 mm |
| Max.thickness of work-piece | 40 mm |
| Min.thickness of work-piece | 10 mm |
| X-axis | 110 m/min |
| Y-axis | 70 m/min |
| Z axis | 30 m/min |
| U axis | 110 m/min |
| V axis | 70 m/min |
| W axis | 30 m/min |
| A axis | 50 m/min |
| Working table height | 950 mm |
| Total power | 15kw |
| Weight | 3800 kg |
| Operation area size | 4850*2703*1850 mm |
| Overall dimensions | 4850*2703*1850 mm |
PS:All the working area and specifications can be customized according to your requests.
