Description

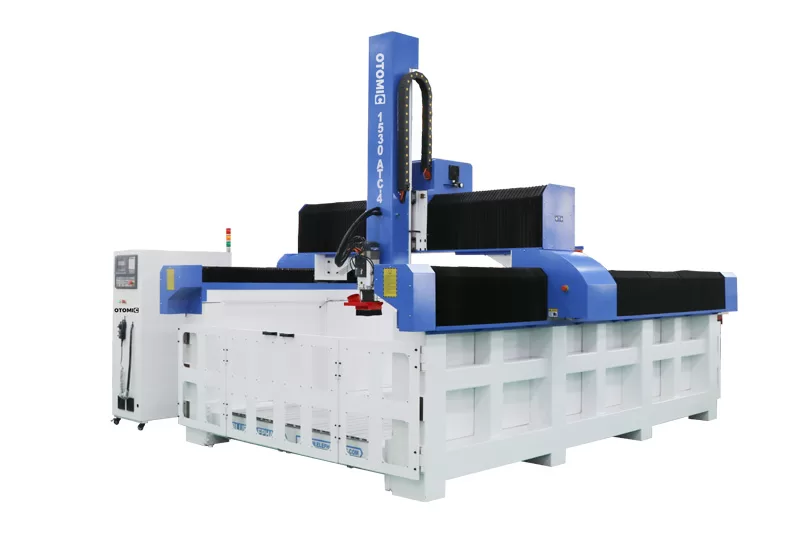

The CNC foam cutter is a four-axis foam engraving machine, ideal for creating wooden airplane models, non-metal molds, and more. With a spindle that rotates 180° and an automatic tool changer, it offers exceptional flexibility and efficiency. The z-axis height can be increased, and working dimensions can be customized to meet specific needs. It is popular in Iran, Hormozgan Province, Oman and passes through Bandar Abbas.
Features
- Smooth Operation: High-precision ball screws and an automatic lubrication system ensure smoother and faster operation, reducing issues such as sticking or slowdowns.

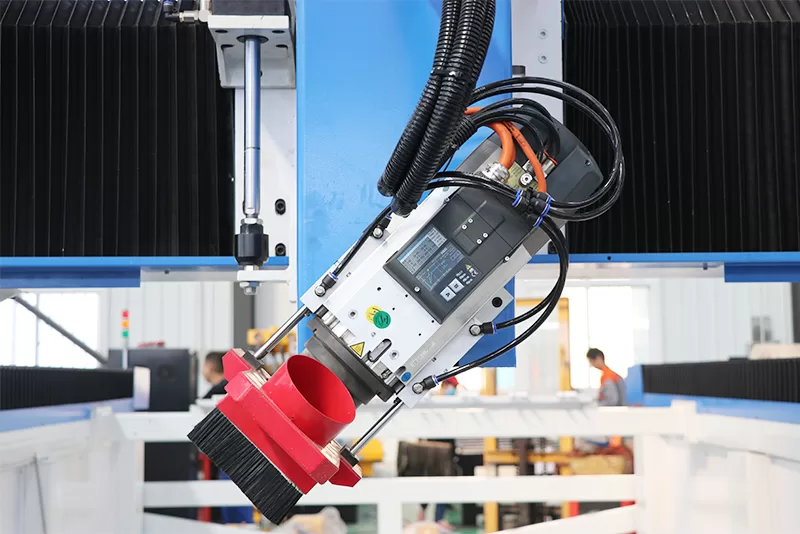

- High-Precision Spindle and Reducer: Equipped with a 9.6KW Italian ATC air-cooled spindle and a fourth-axis precision reducer for enhanced transmission accuracy and high-precision, flexible processing.
- Reliable Motors and Drivers: Features original Japanese servo motors and high-power drivers, providing low noise, high speed, and long service life.
- Customizable Z-Axis: The z-axis can be optionally increased for greater versatility, making fine processing of large workpieces easier.
Parameters
| Model | ELECNC1530 EPS |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 1100mm,option: 900mm,1000mm,1200mm, etc |
| Spindle type | Italy 9.6kw ATC air cooling spindle |
| Inverter type | 11KW Delta inverter |
| The 4thaxis | cycloidal pinwheel precision reducer, with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |

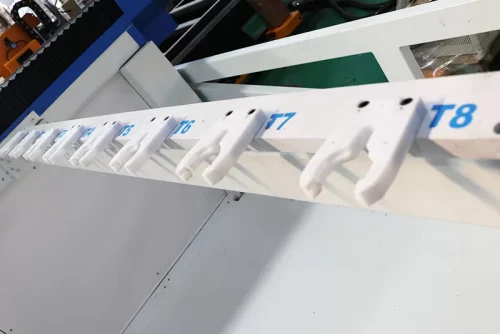

| Tool magazine | Linear type auto tool changer 8pcs Option: carouseltype auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |

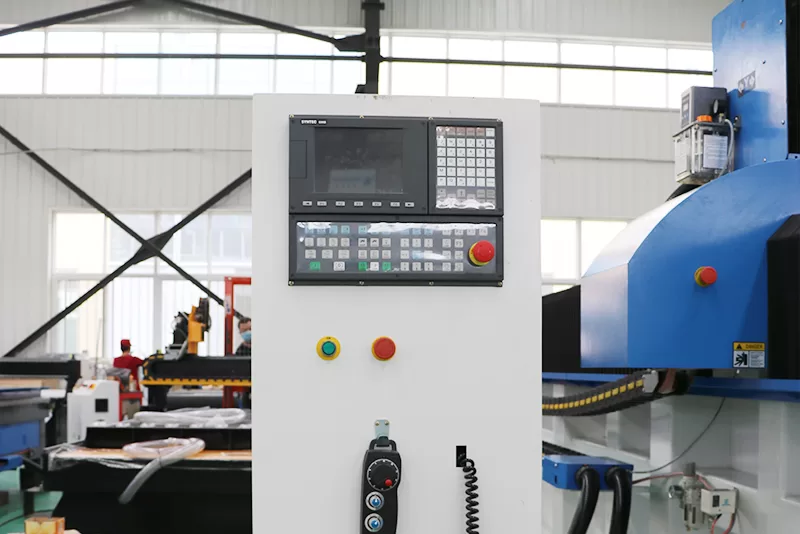

| Control system | Taiwan Syntec control system |
| Driving system | Original Japan YASKAWA 850W servo motor and 1000W driver |
| Machine structure | EPS machine structure |

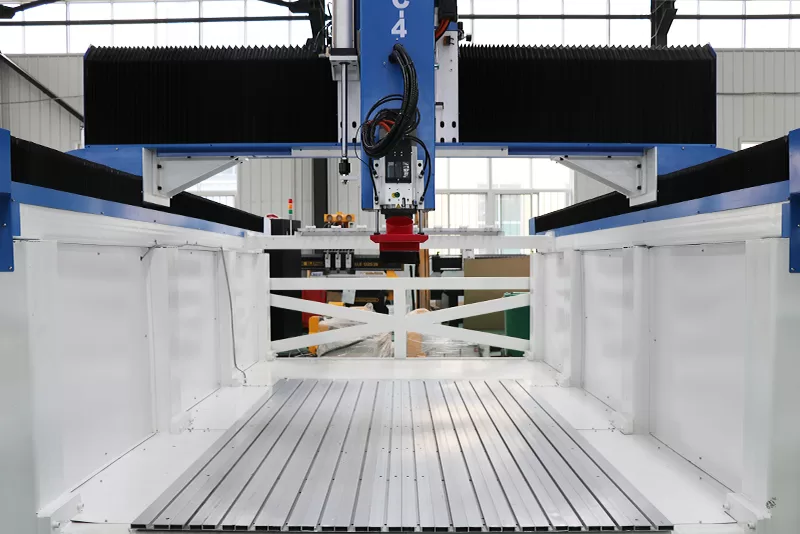

| Work table | T-slot working table |
| Linear guide | Taiwan linear guide#30 |
| Transmission | X, Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, Powemill, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
