Description

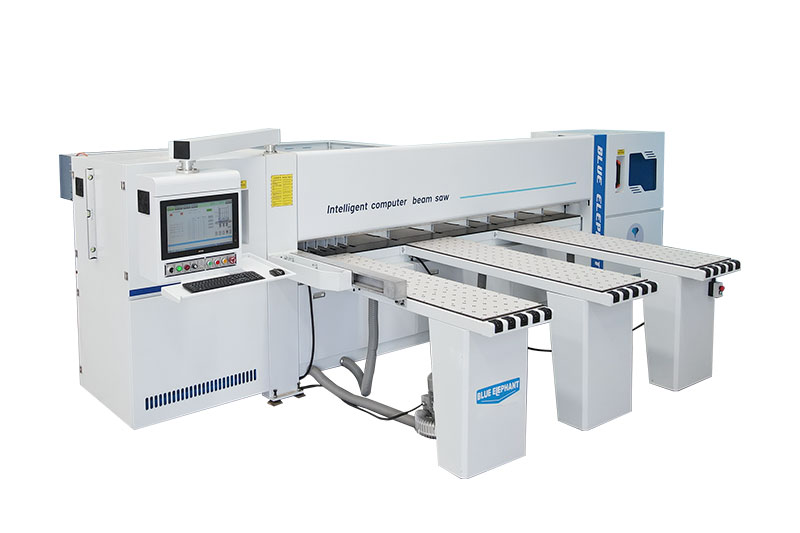

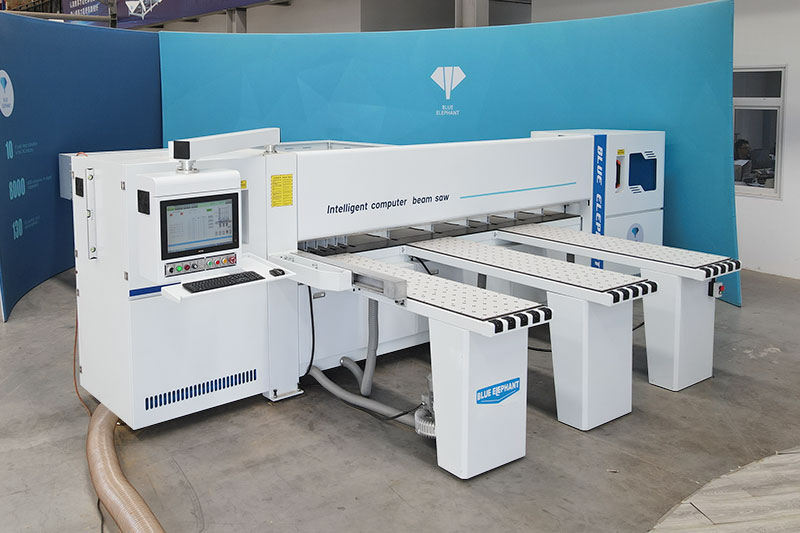

The high-speed CNC panel saw offers a spindle speed of 4800 rpm and exceptional stability. Operated by computer-controlled machinery, it ensures high safety by keeping workers’ hands away from cutting tools, requiring only material loading and unloading. It passes by Aqaba.
This CNC panel saw is ideal for precision cutting, enhancing efficiency and safety in various woodworking applications. We have many customers in Shuwaikh, Kuwait, Saudi Arabia, and Salalah.
Features
1. Precise cutting: The CNC panel saw delivers exact cuts every time, reducing material waste and saving costs.
2. Time-saving: Continuous operation without manual blade switching allows the machine to run at full speed, maintaining optimal performance for extended periods.
3. Easy operation: With its memory function, the CNC panel saw can store and recall commands, making repeated operations simple and efficient.
4. Excellent support: We offer free training services to ensure you can operate the panel saw without any issues.
Parameters
| Model | ELECNC-380 |
| Overall dimension | 6400x6300x1800mm |
| Cutting length | 3700mm |
| Cutting thickness | 100mm |
| Main saw blade diameter | 350mm |
| Main saw blade revolving speed | 4800rpm |
| Groove saw blade diameter | 180mm |
| Groove saw blade revolving speed | 6900rpm |
| Forward speed of carriage | 100m/min |
| Backward speed of carriage | 150m/min |
| Main saw motor | 16kW |
| Groove saw motor | 2.2kW |
| Auto feeding motor | 1.5kW (AC, servo) |
| High-press ventilating motor | 2.2kW |
| Total power | 23kW |
| Auto feeding speed | 100m/min |
| Air pressure | 5-7kg/cm2 |
| Platform height | 950mm |
| Control switch | Schneider |
| PLC | Fatek |
| Converter | Invt |
| Screen | Fatek |
| Contactor | Schneider |
| Pneumatic elements | Hengtong |
| Solenoid valve | AirTac |
| Motor | Igarashi |
| Servo control system | Invt |
| Linear guide rail | SLM |
