Description

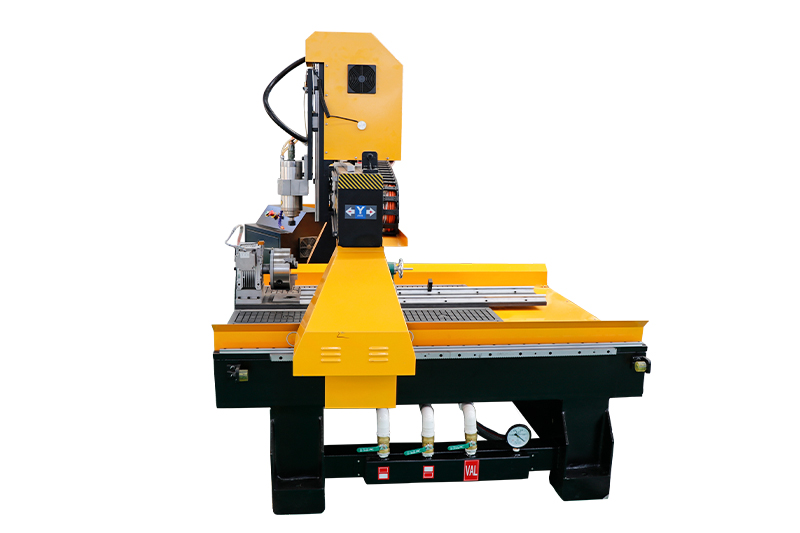

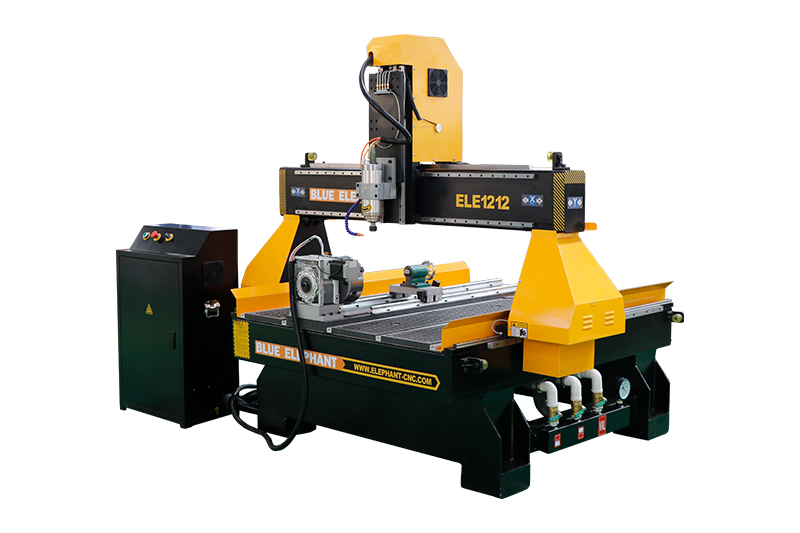

The Blue Elephant ELECNC-1212 is a versatile CNC router machine with rotary axis, designed for small-scale wood carving projects. Featuring a 1.5L automatic lubrication system and a 5.5kw water circulation vacuum pump, this machine ensures durability and ease of use. It is hot in United Arab Emirates, Abu Dhabi, Fujairah and passes through Khalifa Port.
Features
1. Ideal for processing cylindrical workpieces like chair frames, stair frames, and Roman columns.
2. Customizable machine color and rotating device to fit specific needs.
3. Equipped with a vacuum work surface for strong adsorption and stability.
4. Heavy-duty welded frame and gantry provide a robust and durable structure.
Parameters
| Descriptions | Parameters |
| Model | ELECNC-1212 |
| Brand | BLUE ELEPHANT |
| Working size | 1200*1200*400mm |
| Working Voltage | 220V, 3Ph, 60Hz (optional: 380V) |
| Control system | Mach 3 control system |
| Spindle | 3kw Changsheng water cooling spindle |
| Spindle speed | 0-24000rpm |
| Inverter | 3.7 kw Fuling inverter |
| Motor | FL118 stepper motor |
| Driver | Leadshine 860H driver |
| Traveling speed | 15m/min |
| Working speed | 12m/min |
| Table surface | Vacuum and T-slot table |
| Lubrication system | Manual lubrication system |
| Structure | This wood carving machine uses a heavy-duty welded frame and gantry. |

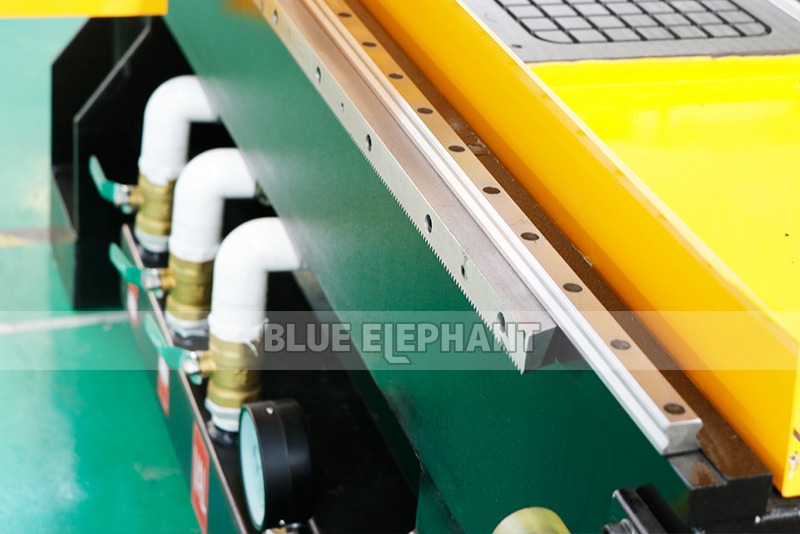

| Transmission | The machine uses a gear rack driver for the X and Y axes, and uses a Taiwan TBI ball screw transmission. |
| X, Y, Z Rail | ABBA / PMI Linear Guide 20# |
| Control box | Independent control box |
| Tool sensor calibration | Automatic tool sensor calibration |
| Vacuum pump | 5.5kw water circulation vacuum pump |
