Description

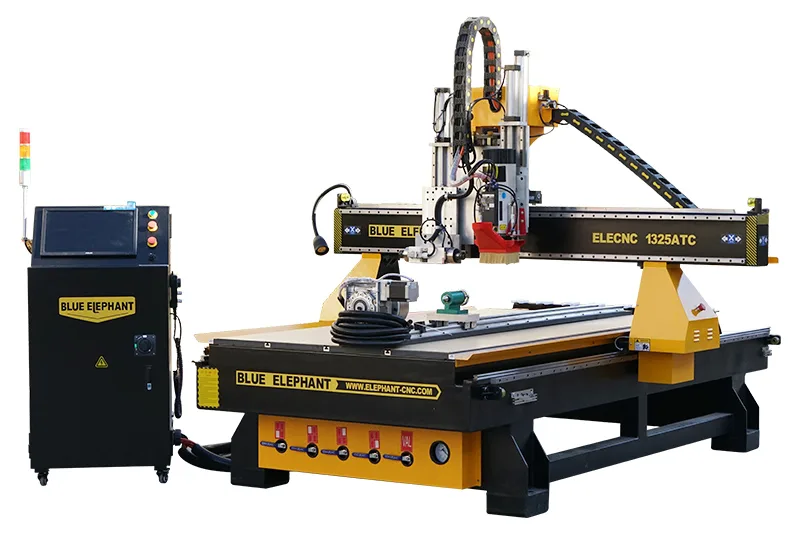

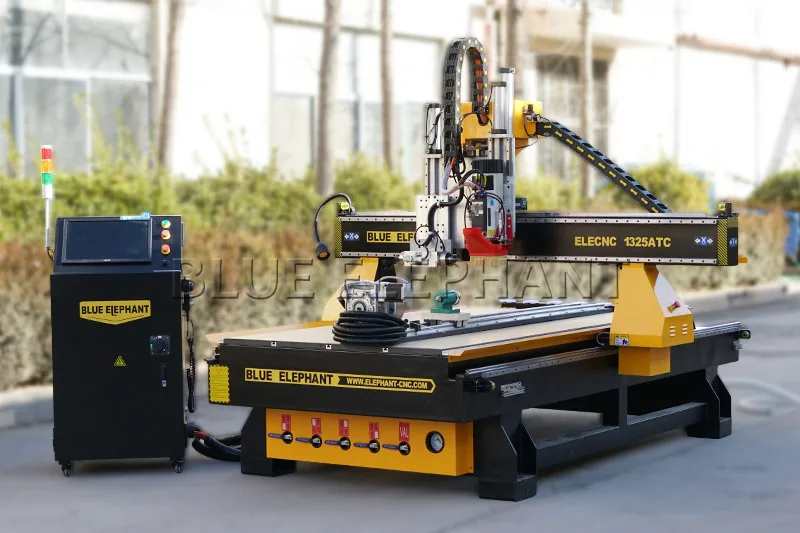

The CNC wood router 1325 with rotary is designed for both flat and cylindrical 3D engraving, offering versatility and high efficiency. This 4-axis CNC machine is a cost-effective solution, meeting the demands for diverse applications with its robust features and high buying volume. It is hot selling in Lebanon, Beirut, Tripoli, Syria.
Features
- Equipped with a 9kw HQD air-cooled ATC spindle and a 3.5KW horizontal spindle for comprehensive machining capabilities.
- Advanced four-axis linkage motion control provides excellent maintainability and usability.
- Capable of processing flat, cylindrical, and polyhedral workpieces, including human statues and 3D sculptures.
- Enhanced anti-interference properties, verified through multiple CE tests.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300*2500*300 mm |
| Control system | Belongs to the MW2200 control system, and comes with a computer screen, offering strong visibility. |
| Working Voltage | 380V, 3phase, 50Hz (Option) |
| Spindle | This machine uses a 9kw HQD air-cooled ATC spindle and a 3.5KW horizontal spindle. |
| Inverter | 11kw Fuling inverter |
| Motor and driver | Leadshine 750W servo system |
| Table Surface | Vacuum and T-slot table |

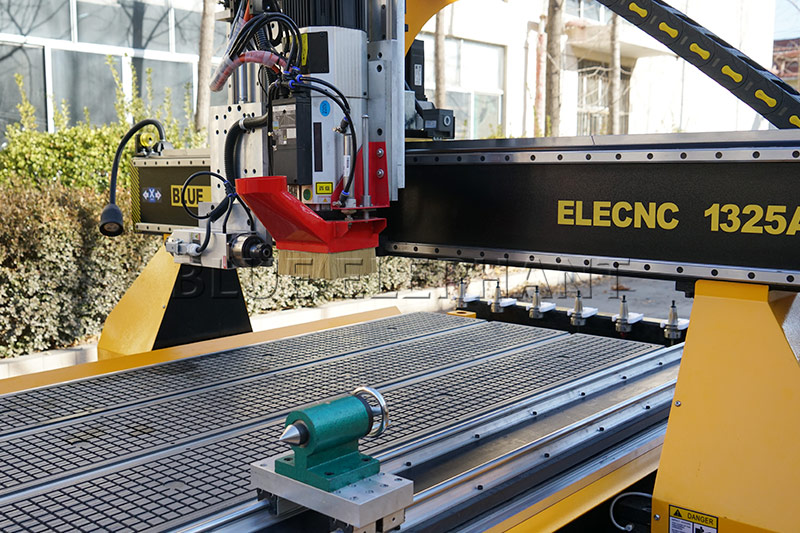

| Rotary device | 200mm diameter rotary device |
| X,Y axis | The X-axis uses Taiwan PMI 25, and the Y-axis uses a square rail. |
| Z axis | It uses a Taiwan TBI ball screw. |
| Vacuum pump | 2Kw dry vacuum pump(Double segment)*2 |

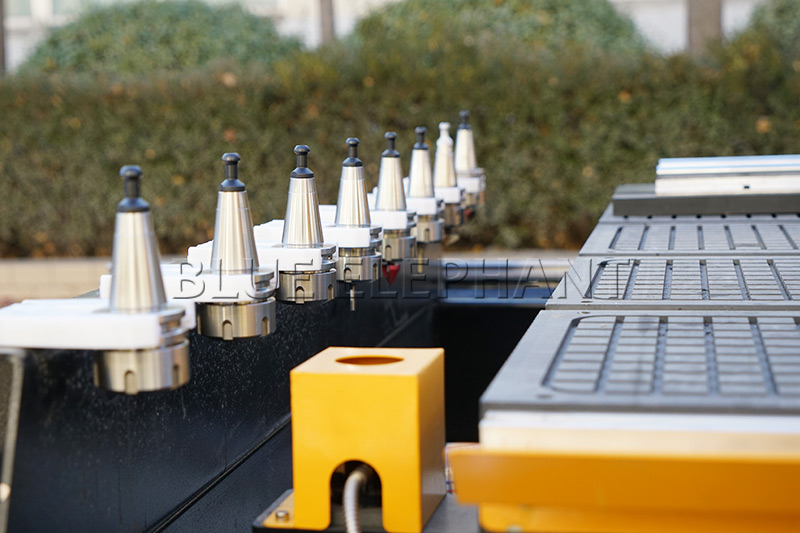

| Tool change | linear tool change magazine |
