Description

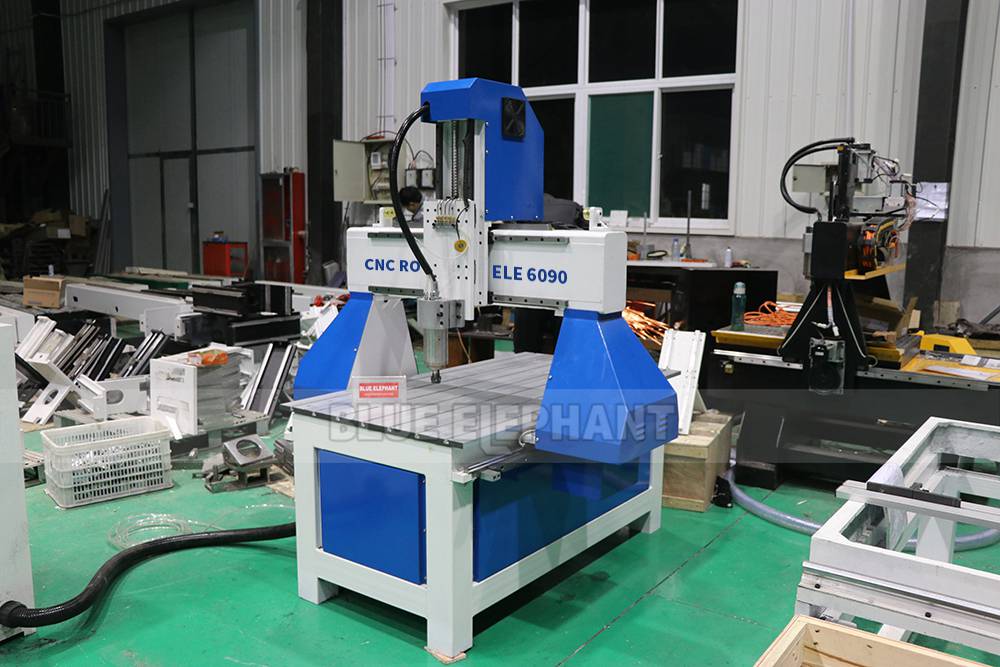

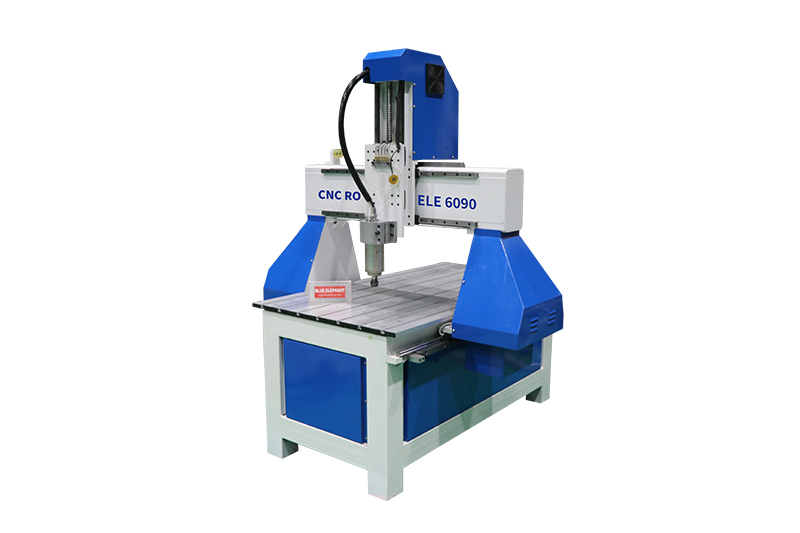

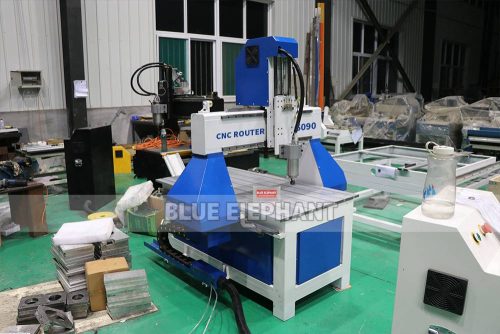

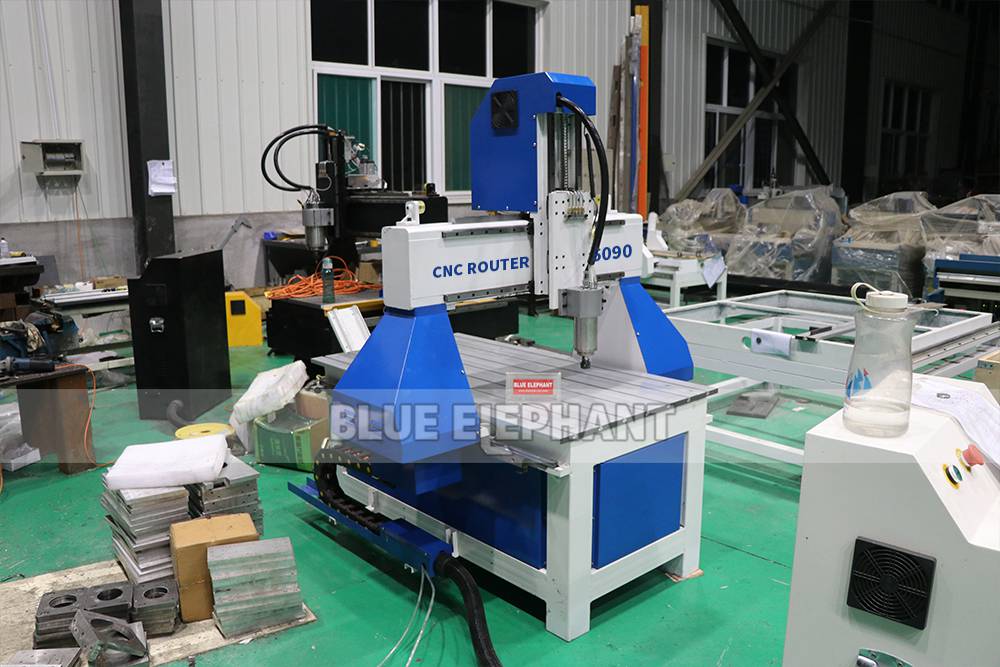

Experience the convenience of a mini desktop 3 axis CNC wood router. Equipped with a Fuling frequency converter, it offers a high degree of automation. Its T-slot workbench ensures easy operation, and it operates under a Weihong control system. It is hot selling in Saudi Arabia, Riyadh, Khobar, Taif.
Features
- Compact Size: With dimensions of 600900300mm, the Z-axis height can be customized to fit your needs.
- Precision: This small, high-precision three-axis CNC milling machine delivers accurate results.
- Lightweight: Its frame steel structure makes it lighter and easier to transport.
- Versatility: It’s suitable for processing a variety of wood materials.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 600mmx900mmx300mm |
| Control System | Weihong Control System |
| Table Surface | T-slot Table with PVC protection |
| X,Y,Z Structure | Z axis TBI Ball Screw ,#20 ABBA linear guideX,Y axis #20 ABBA linear guide ,Helical rack gear |
| Spindle Power | 2.2kw Changsheng water Cooling Spindle |
| Spindle Speed | 24000RPM |
| Drive Motors | FL118 450B stepper motor and YAKO driver |
| Inverter | 2.2kw Fuling Inverter |
| Working Voltage | AC220V/1PH/50HZ |
| Operating System | ARTCAM |
| Body structure of machine | Frame structure |
| Gantry structure | Steel gantry |
| Control box | Independent control box |
