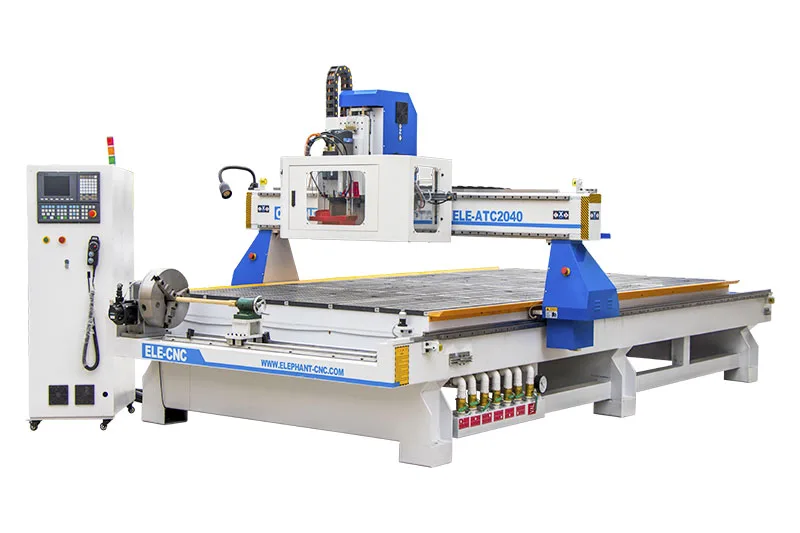

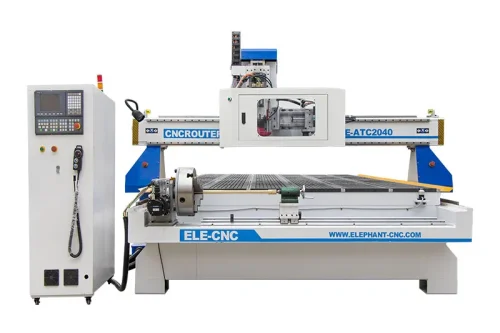

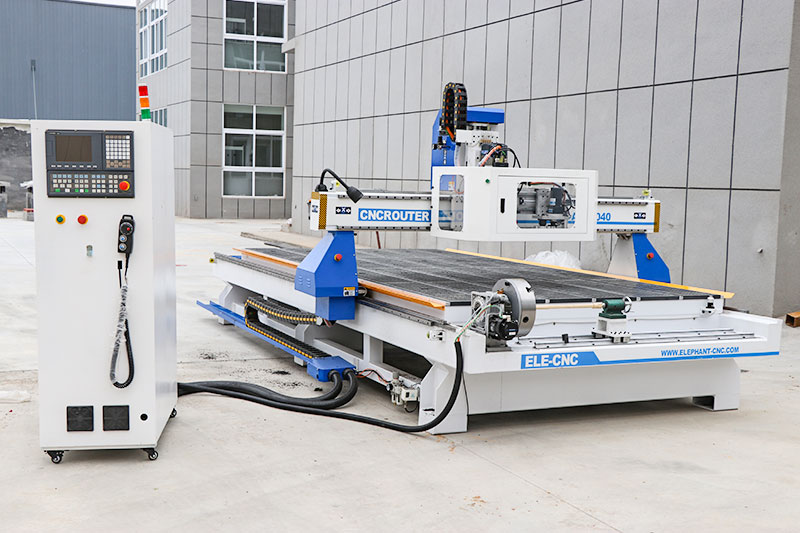

Description
The 4 axis CNC lathe machine is an ATC woodworking CNC engraver outfitted with a user-friendly computer panel. This machine employs a new control and drive system, offering enhanced processing power. It is equipped with a cooling spray and dust collector, enabling the machine to operate for extended periods. It is hot selling in Lebanon, Beirut, Tripoli, United Arab Emirates.
Features
- The machine features a user-friendly computer panel, offering convenient visual operation and a high degree of automation.
- It utilizes advanced control systems and drives, ensuring high processing efficiency and quality.
- The machine is equipped with 12 tool magazines for automatic tool changing and a movable gantry, facilitating the flexible processing of complex multi-dimensional workpieces.
- The machine includes a new 1.5kw double-pack dust collector paired with an automatic cooling sprayer, which aids in cooling the machine, timely dust removal, and extending its service life.
Parameters
| Descriptions | Parameters |
| Model | ELECNC-2040ATC |
| Working size | 2060*4000*200mm |
| Color | White and Blue (customizable) |
| Working Voltage | 380V, 3Phase, 50Hz |
| Control system | SYNTEC control system |
| Spindle | 9kw Italy HSD ATC air cooling spindle |
| Inverter | 11kw Delta Inverter |
| Motor & Driver | 850w Japan YASKAWA servo motor and 1kw driver |
| Table surface | T-slot and vacuum working table |
| Lubrication system | Auto Lubrication system |
| Automatic tool magazine | 12 |
| Gantry structure | Gantry moving |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Transmission | X,Y rack and pinion drive, Z Taiwan TBI ball screw |
| Rail | ABBA 25# |
| Mist cooling sprayer | Automatic oil mist cooling sprayer |
| Vacuum pump | 2 sets 5.5kw water circulation vacuum pump (380V, 3Phase, 50Hz) |
| Dust collector | 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz) |
| Tool sensor | Automatic tool sensor calibration |
| Rotary device diameter | 300mm |
PS:All the working area and specifications can be customized according to your requests.
