Description

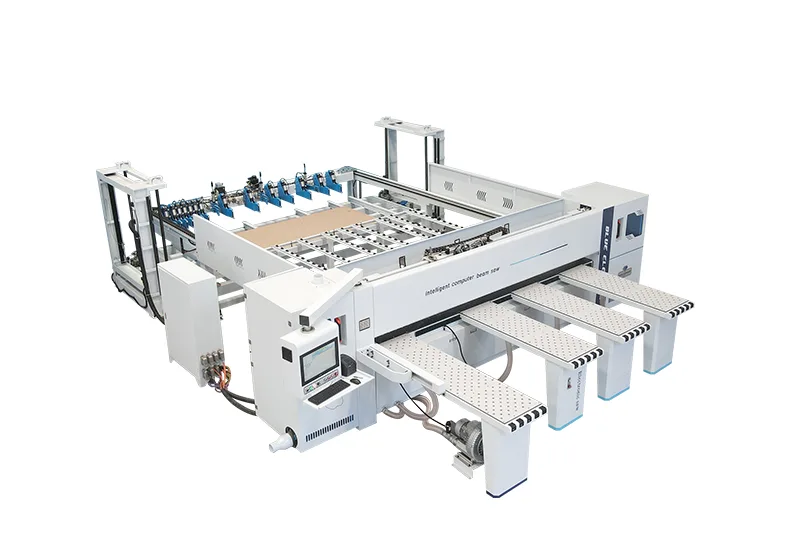

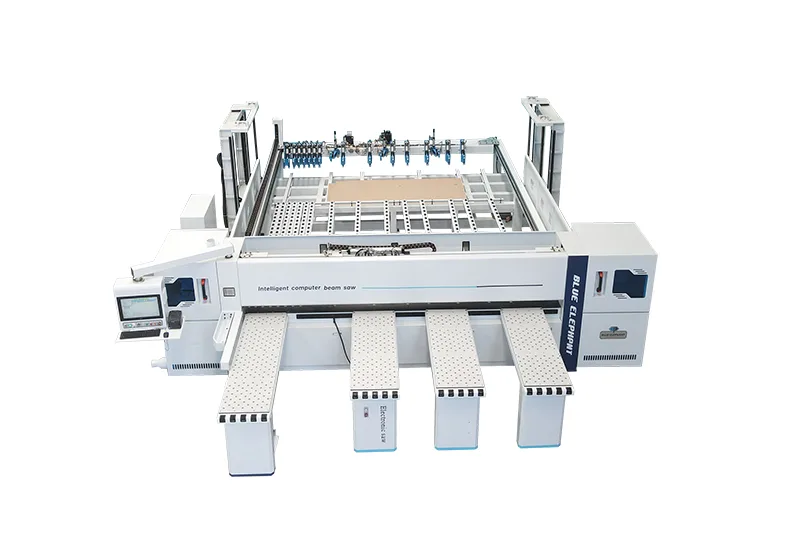

This rear-loading computerized panel saw machine is ideal for mass production in the furniture industry. It offers high-speed, precise cutting, making it perfect for quickly and accurately processing panels.
Designed for efficiency and reliability, this panel saw machine minimizes errors and maximizes productivity, suitable for large-scale operations. It is popular in Izmir, Turkey, Yemen, and Jubail.
Features
- High Cutting Accuracy: Achieves ±0.15mm precision with a cutting thickness up to 100mm, utilizing CNC intelligent control to reduce errors.

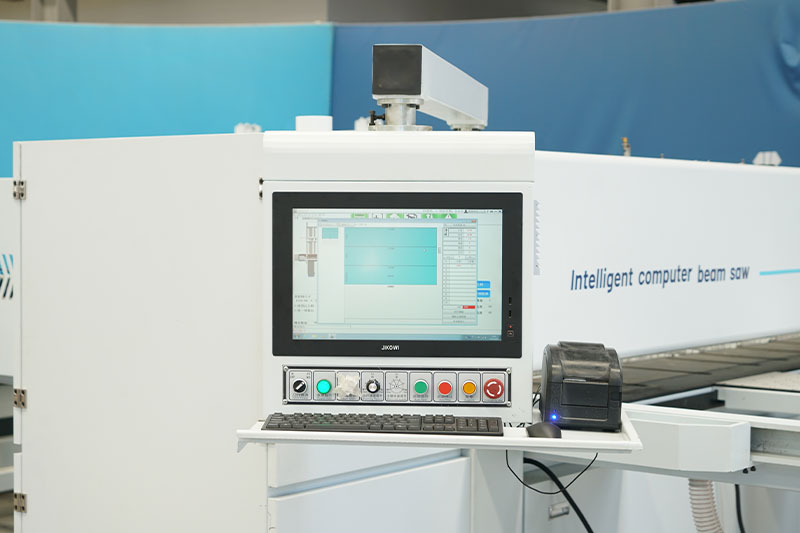

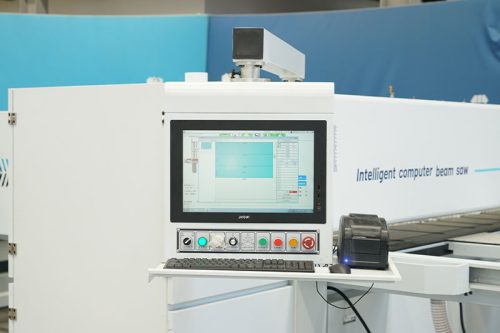

- Advanced Control: Equipped with high-performance limit switches for precise saw stroke control and a self-diagnostic function for easy troubleshooting.
- Stable Structure: The machine’s base is welded from steel plates, providing exceptional stability.

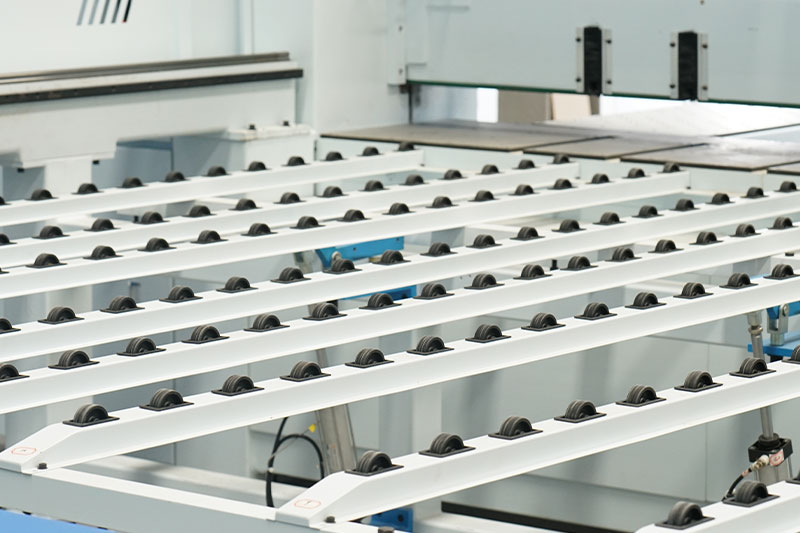

- Efficient Feeding: Uses circular motion guide rail feeding to improve accuracy and reduce workload, enhancing overall production efficiency.
Parameters
| Model | ELECNC-330C |
| Overall dimension | 5900x5800x1800mm |
| Max. cutting length | 3300mm |
| Max. cutting thickness | 100mm |
| Positioning accuracy | ±0.02mm |
| Cutting accuracy | ±0.15mm |

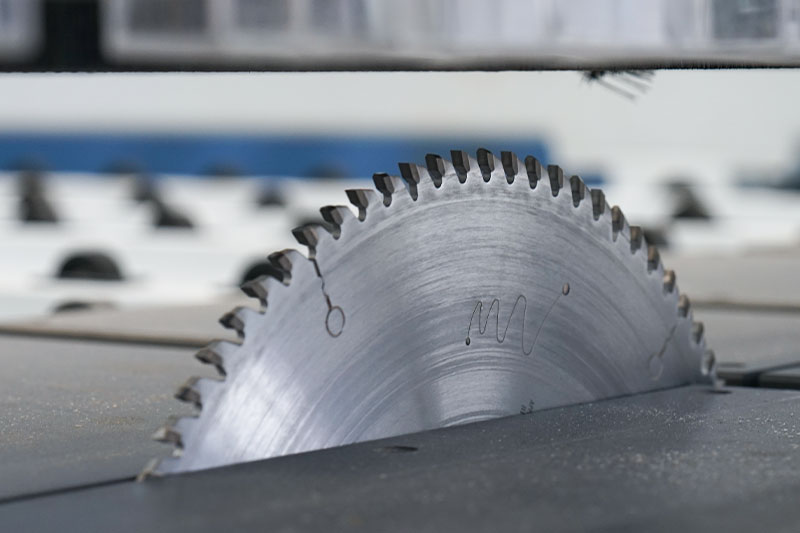

| Main saw rotating speed | 4100r/min |
| Max. auto feeding speed | 100m/min |
| Groove saw rotating speed | 6200r/min |
| Main saw motor | 15kW |
| Groove saw motor | 2.2kW |
| High pressure fan | 2.2kW |
| Total power | 23kW |
| Air pressure | 0.6-0.8MPA |
