Description

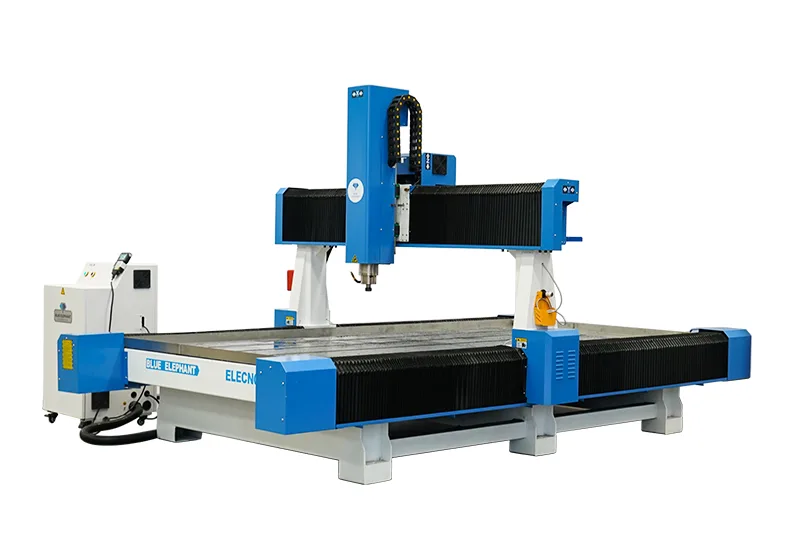

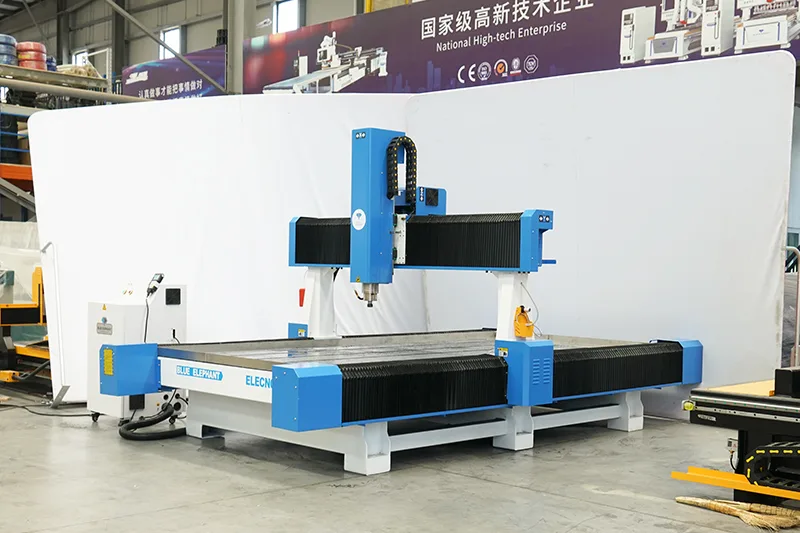

This custom stone carving machine is capable of performing various processes such as cutting and carving for sale. Equipped with a powerful horizontal saw and a water-cooled spindle, it ensures long-term, efficient operation. It is hot selling in Saudi Arabia, Riyadh, Jeddah, Khobar.
Features

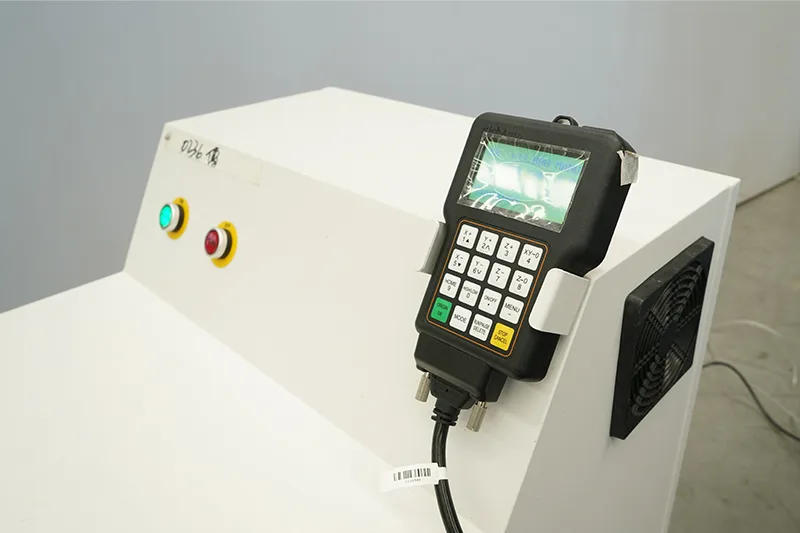

- Precision Control: The DSP A11 control system ensures precise cutting and accurate carving of workpieces.

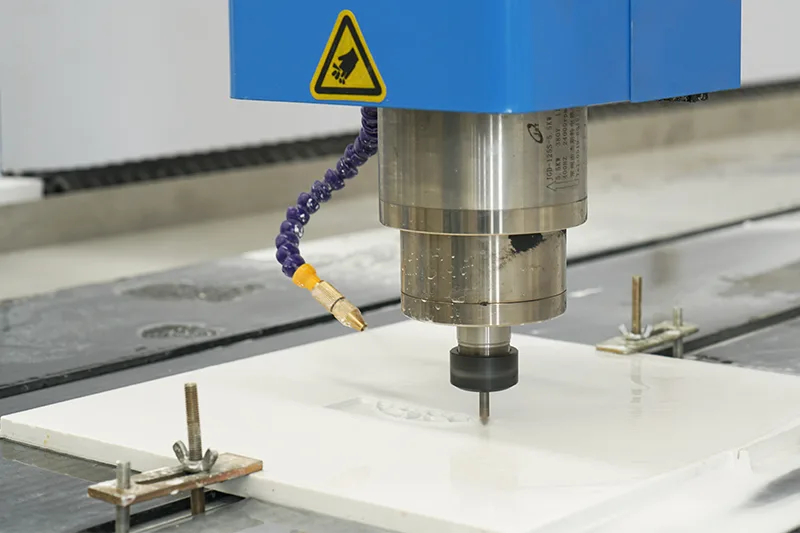

- Enhanced Cooling: The water-cooled spindle efficiently manages heat, extending the machine’s operation time.
- User-Friendly Design: The optional dust cover promotes a dust-free workshop, safeguarding worker health.

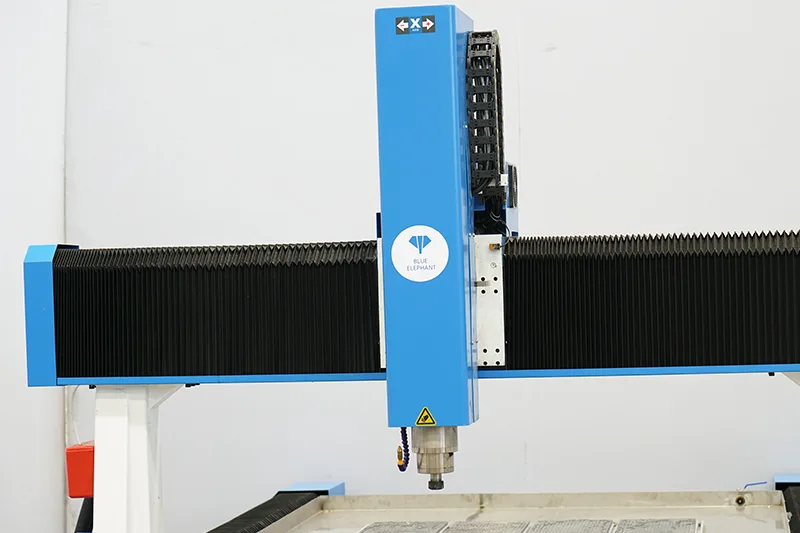

- Robust Structure: Heavy-duty body with quenching treatment ensures durability and stability during operation.
Parameters
| Model | ELECNC1228 |
| X, Y axis travel | 1200*2800mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 200mm, 300mm, etc |
| Spindle type | 5.5kw water cooling spindle |
| Inverter type | 7.5kw Fuling inverter |
| Control system | DSP A11 |
| Motor & Driver | 850w Leadshine servo motor and driver |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T- slot with PVC working table |
| Linear guide | Taiwan Linear guide, # 25 |
| Limit | Japan Omron limit |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| X,Y,Z Working Area | 1200*2600*400mm |
| Table Surface | T- slot with PVC working table |
| Spindle | 5.5kw water cooling spindle, 24000rpm |
| X, Y Structure | Taiwan linear guide 25# |
| Z Structure | Taiwan TBI ball screw |
| Motor and driver | 850w Leadshine servo motor and driver |
| Inverter | 7.5kw Fuling inverter |
| Control System | DSP A11 control system |
| Dust cover | 3 axis dust cover |
