Description

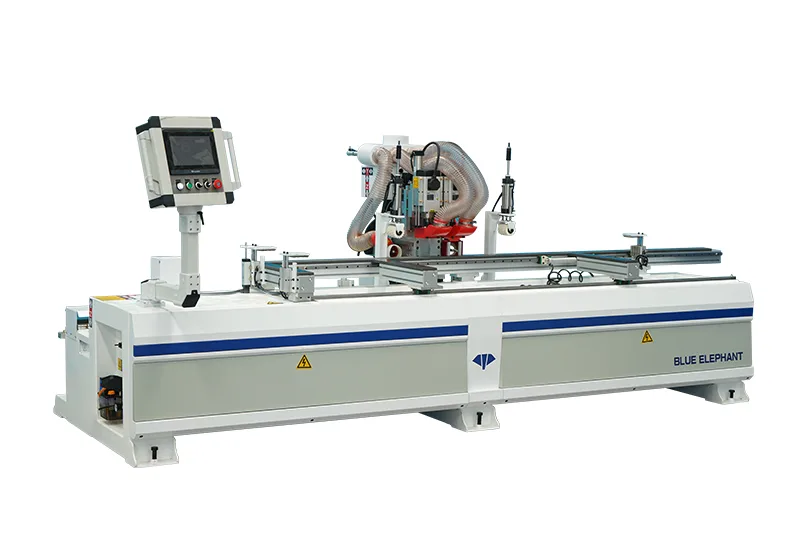

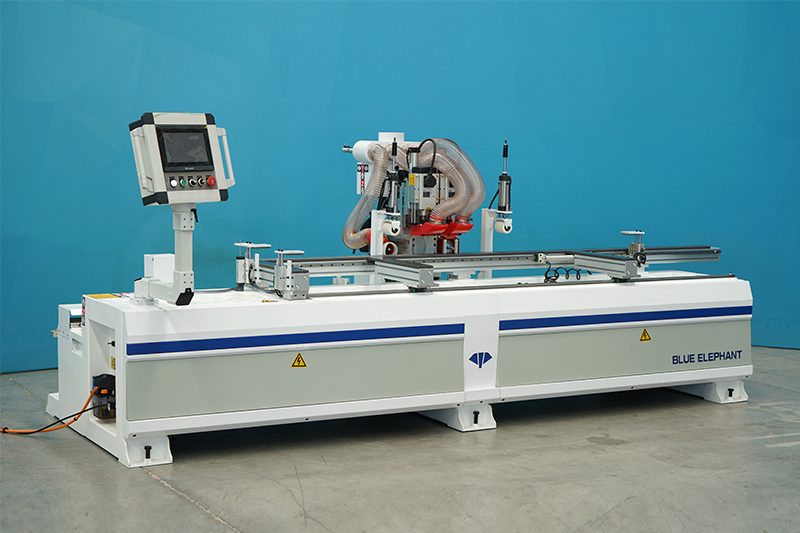

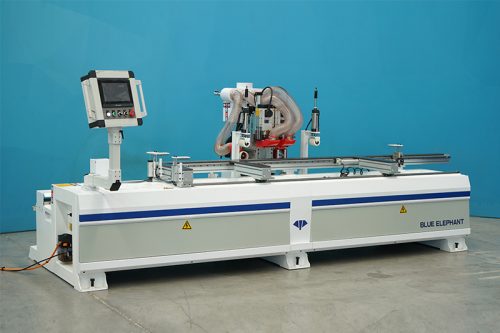

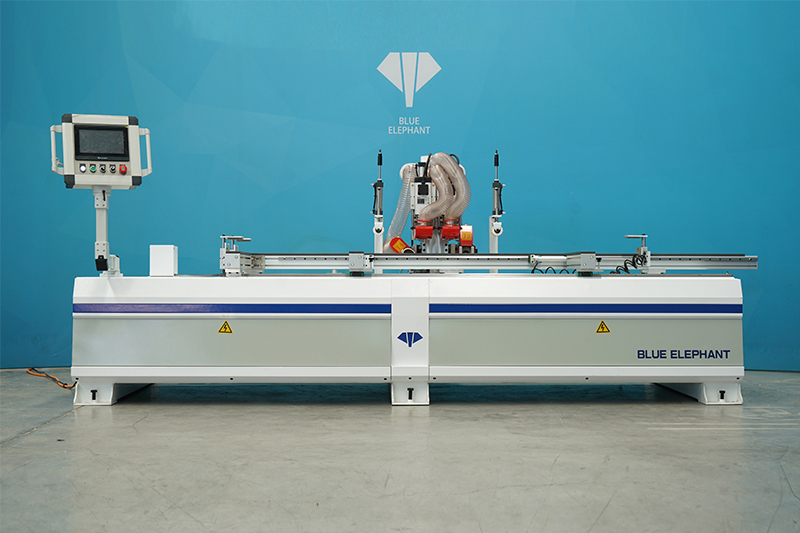

Step up your woodworking game with our state-of-the-art CNC door lock machine. Engineered for precision and ease of use, this machine is a game-changer for door manufacturing.
With dual vertical and horizontal spindles, it offers versatile drilling, milling, and trimming capabilities to streamline your production process. This machine is hot selling in Beirut, Lebanese Republic, Kuwait, United Arab Emirates.
Features

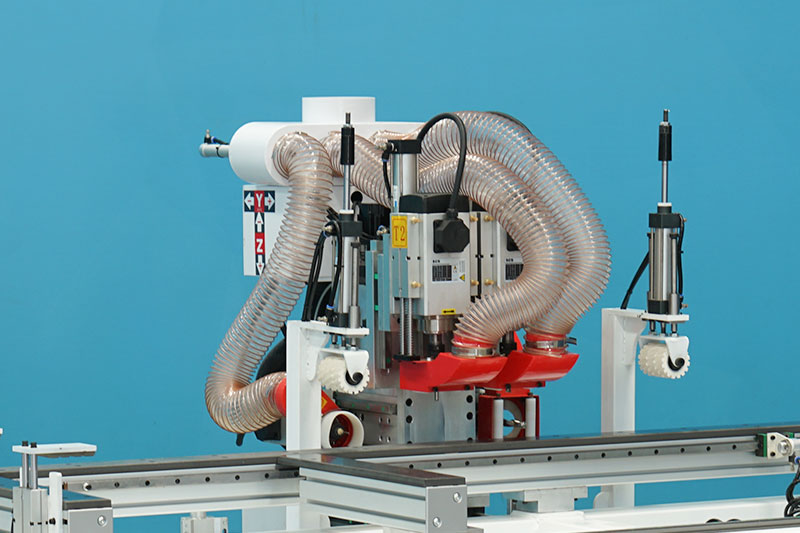

- Precision Engineering: Equipped with four robust spindles of varying powers (3.5KW, 6KW, 3.5KW, and 2.2KW), our door lock machine can handle a variety of drilling and milling tasks with high accuracy.
- Stable Performance: The solid square steel bed construction minimizes vibration, ensuring stable and reliable machine operation.
- Premium Components: High-quality accessories, including an oil-water separator, extend the lifespan and performance of each component.
- Customized Support: Our commitment to service includes complimentary equipment maintenance, upgrades, and software training.
Parameters
| Dimension | 3600x1300x1450mm |
| Worktable height | 750mm |
| Power of 4 spindles | T1 vertical spindle for boring:3.5KWT2 vertical spindle for milling: 3.5KW
T3 side spindle for milling: 6KW T4 side spindle for trimming: 2.2kW |
| Max. travel of each spindle | T1: 2500x90x70mmT2: 2600x90x70mm
T3: 2700x100x70mm T4: 2400x90x70mm |
| Spindle rotating speed | 18000RP m/min |
| Max. processing size | 2800x1000x70mm |
| Idling speed | 10-100m/min |
| Processing speed | 10-80m/min |
| Motor | 750W servo motorx3 |
| Inverter | 7.5kw |
| Lubrication | Automatic lubrication system |
| Ball screw | #25 Taiwan high-precision ball screw |
| Guide rail | #25 Taiwan Linear guide |
| Bearing and bearing seat | Taiwan High precision bearing |
| Cable | High flexible double shielded wire |
| Reducer | Planetary Reducer |
| Rack | high precision rack gear |
