Description

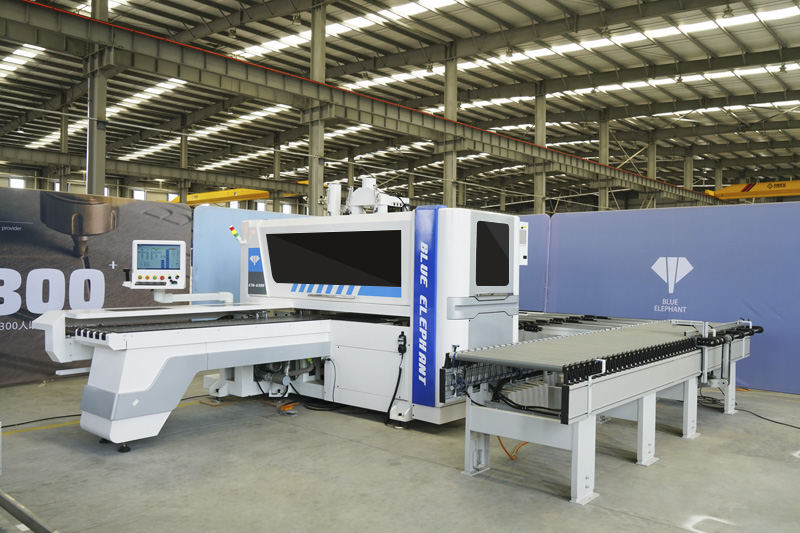

This CNC Drilling Machine efficiently processes holes and grooves on six sides of panel furniture, featuring a return table for enhanced usability. It is a highly efficient and convenient solution for drilling tasks in furniture production. Its user-friendly interface and advanced features make it an indispensable tool. It is popular in Riyadh, Saudi Arabia, and Abu Dhabi, and passes by Jebel Ali Port.
Features
- High precision: Completes all hole positions in a single setup, ensuring higher accuracy for panel furniture.
- Versatile use: Can be used alongside CNC cutting machines, crucial for large-scale and batch production of customized panel furniture.
- High speed: Equipped with 12 vertical top drills, 8 horizontal drills (dual sets), and 9 bottom vertical drills, significantly boosting production efficiency.
- Easy operation: The Blue Elephant custom system allows for quick data import and straightforward operation, streamlining the drilling process.
Parameters:
| Model | ET6D |
| Working size | 1300x2500mm |
| Spindle type | 3.5KW Air Cooling Spindle*2 |
| Number of tools | 12 Vertical top drilling+8 horizontal drilling*2 +9 bottom vertical drilling |
| Control system | Blue Elephant Custom System |
| Driver system absolute | e servo motor |
| Transmission | Taiwan helical rack |
| X axis Travel speed | 120m/min |
| Y axis Travel speed | 80m/min |
| Re-positioning accuracy | ±0.03mm |
| Software | Blue Elephant Custom System |
| Working voltage | 220V /380V/ 50-60HZ |
| Machine overall size | 5832*2727*2367mm |
