Description

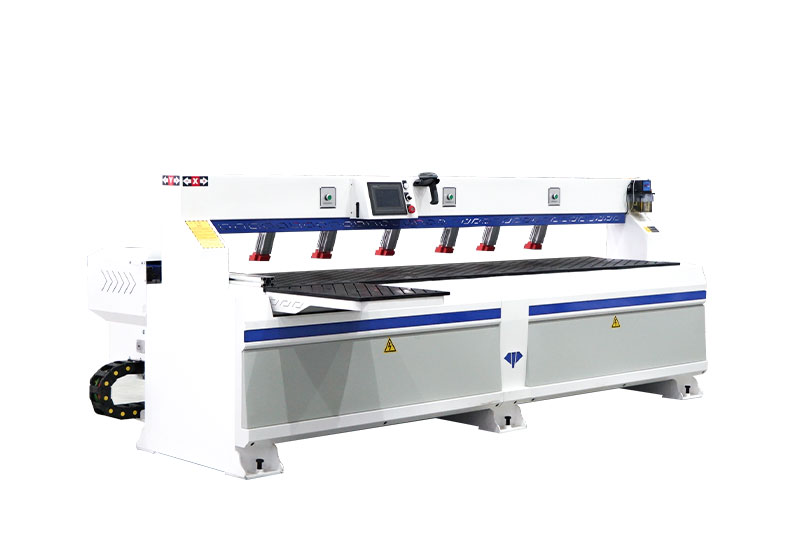

This dual head CNC side hole drilling machine seamlessly switches between multiple drilling modes, offering intelligent and precise hole drilling for various process needs. It’s designed to enhance efficiency and accuracy in woodworking projects.
With advanced laser scanning technology, this side hole drilling machine ensures precise hole placement, making it an essential tool for high-quality wood processing. It passes through the Islamic Republic of Iran, Kuwait, Saudi Arabia, and Ras Al-Khair.
Features
- Intelligent drilling: Automatically drills holes without requiring board size adjustments, thanks to laser scanning that accurately locates and determines drilling positions.
- High safety: Features customized limits and high safety protection for secure operation.
- Convenience: No need for barcode scanning; simply place the board, and it will start drilling immediately, providing quick and efficient performance.
- Versatility: Capable of handling side holes, dowel holes, blind holes, positioning slots, slots, and hidden parts, making it a versatile addition to any woodworking shop.
Parameters:
| Model | ELE200 |
| Spindle | 2.2kw *2 |
| Spindle speed | 0-18000RPM/MIN |
| Traveling speed | 100m/min |
| Working speed | 80m/min |
| Effective travel of table | 2800mm |
| Height of table | 750mm |
| Drive and motor | Dongling servo motor and drive |
| Sensor | BANNER |
| Controller | Luolunchi code scanning and laser scanning system |
| Guild | #20 square rail |
| Rack | Taiwan JUELI |
| Screw | TBI |
| Whole size | 3300*1250*1300mm |
PS: All the working areas and specifications can be customized according to your requests.
