Description

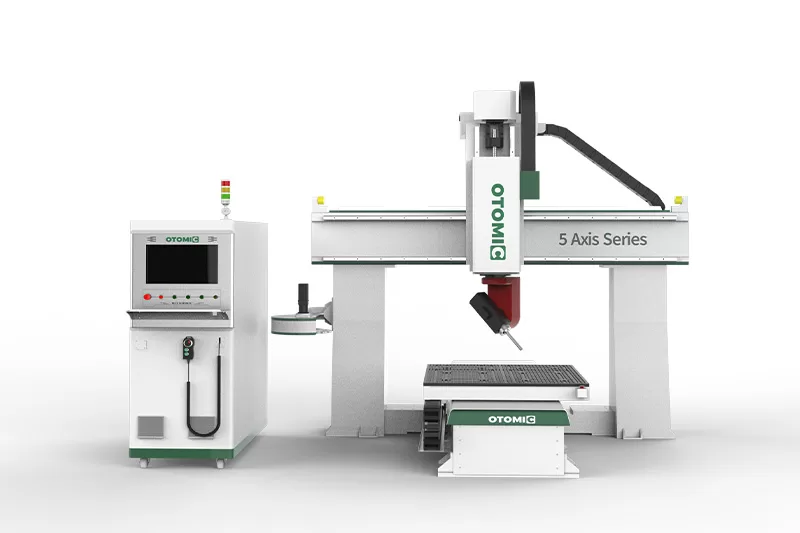

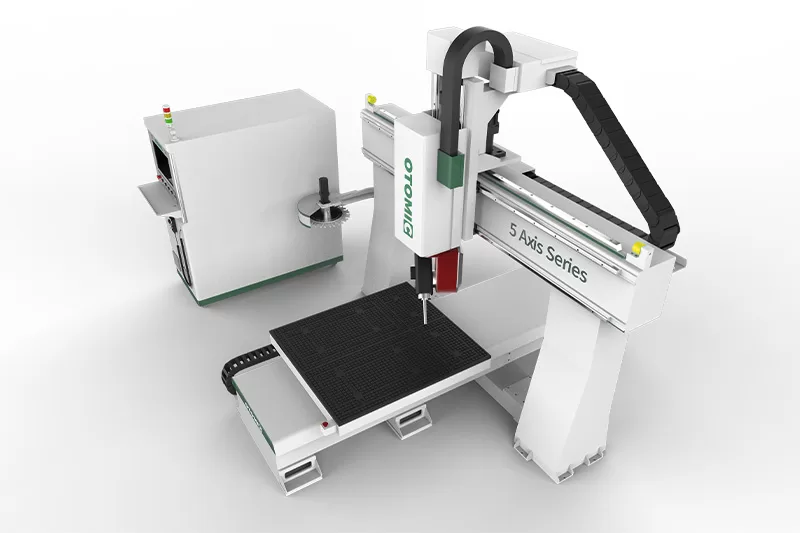

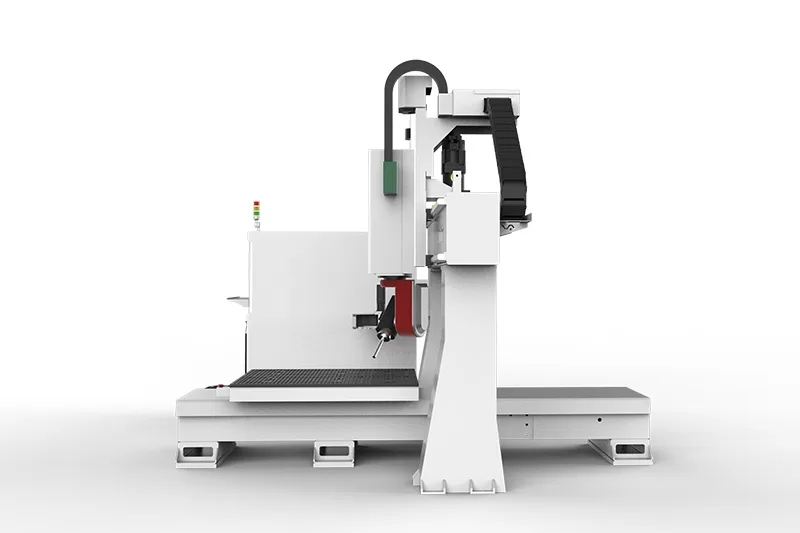

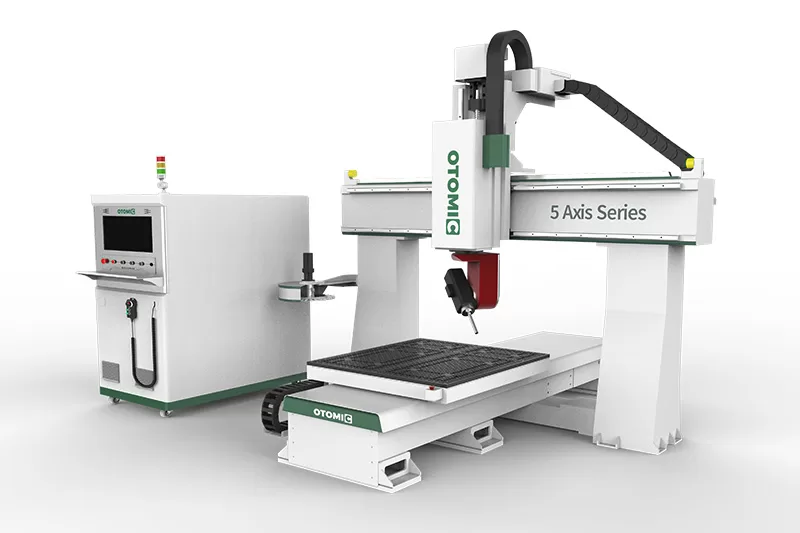

The five axis CNC machine is an entry-level 3D processing machine ideal for beginners. The standout feature of this five-axis CNC machine is its movable worktable that can move forward and backward, providing more flexible operation. Equipped with world-class advanced accessories such as servo motors, it can achieve three-dimensional processing of workpieces and is applicable in industries like 3D foam model processing. It is hot in Saudi Arabia, Riyadh, Yanbu and passes through Yanbu Commercial Port.
Features
- The machine is compact in size, occupying a small area, thus saving space.
- It features fixed gantry beams and a movable workbench, making the processing of workpieces more convenient and flexible.
- The machine uses world-class famous brand accessories, ensuring good quality and high-precision processing.
- It is equipped with a turntable tool changer and a 5-axis control system, making it suitable for engraving 3D foam, statues, and more.
Parameters
| Model | ELECNC1212-5A |
| X,Y axis travel | 1200X1200mm |
| Z axis travel | 500mm |
| Spindle type | 12kw water cooling spindle，24000RPM |
| Inverter type | 15kw Fuling inverter |
| Tool magazine | Carousel tool changer with 12pcs magazine |
| Tool holder with collet | HSK F63 tool holder |
| Control system | Syntec 610-E5 5 axis control system with RTCP functions |
| Driving system | X, Yaxis 1.8kw; Z axis 1.3kw Japan Yaskawa servo motors |
| Reducer | Japan Shimpo |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot & Vacuum working table (2 zones) |
| Linear guide | Taiwan 30# Linear guide |
| Transmission | Taiwan TBI screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill software |
| Command language | G Code |
| Working voltage | 380V 3PH 50HZ |
PS: All the working area and specifications can be customized according to your requests.
