Description

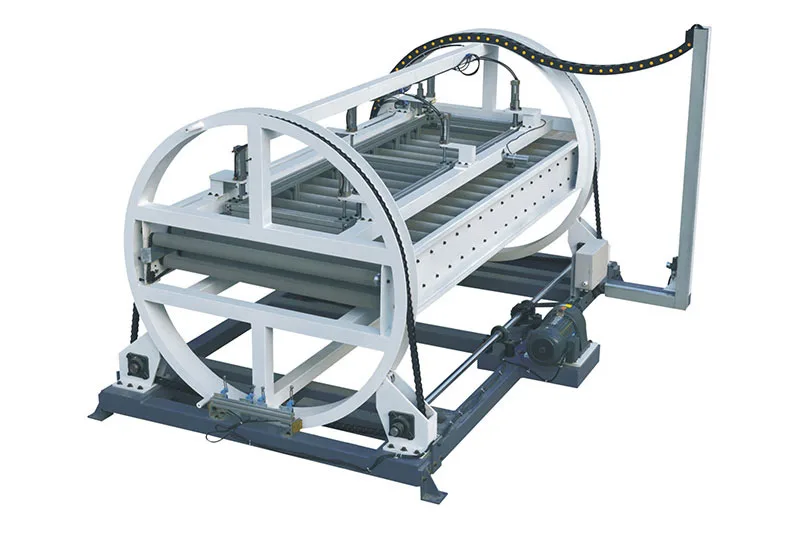

The Cylindrical Plate Turning Machine is designed to meet the engineering turning needs of plates with varying specifications, ensuring safe and stable transportation. As an essential auxiliary equipment in panel furniture production lines, it enhances operational efficiency and reliability. It passes by Shuwaikh, Kuwait, and Gaza Port.
Features
1. Versatile Rotation: The machine can rotate workpieces to any desired angle without slipping or reversing, providing flexibility and reliability in handling different plate sizes and weights.
2. Safe Operation: Operators can control the machine from a safe distance, with workpieces securely clamped on both sides for easy lifting and lowering, minimizing manual handling risks.
3. High Efficiency: By automating the plate turning process, the machine significantly improves turning efficiency and reduces operational costs, making it a valuable addition to any production line.
4. Hydraulic Control: The hydraulic system ensures smooth and safe operation, allowing for precise 180-degree rotations and enhancing overall productivity.
Parameters:
| Model | FQ-HFBJ24 |
| Workpiece length | 1500-2440 mm |
| Workpiece width | 300-1220 mm |
| Workpiece thickness | 10-60 mm |
| Max workpiece weight | Max.50 kg |
| Working air pressure | 0.4-0.6Mpa |
| Working voltage | 380V/50Hz |
| Feeding height | 820-900 mm |
