Description

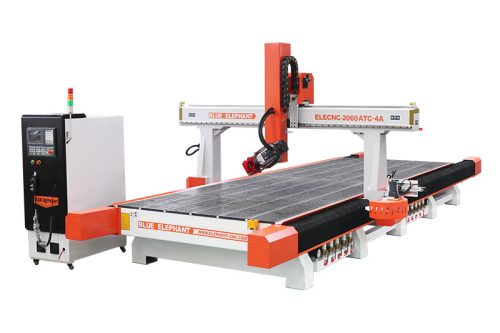

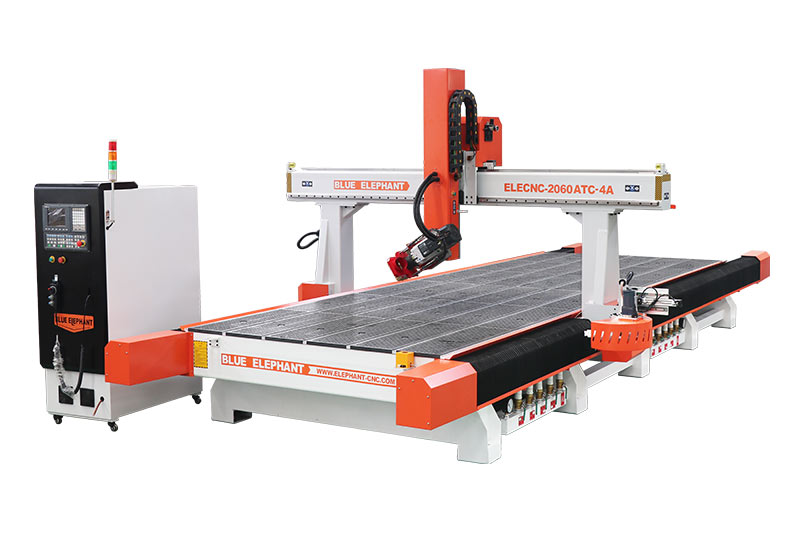

The ELECNC-2060ATC is a state-of-the-art 4 axis CNC wood carving machine designed for intricate 3D performance. Featuring a large workbench size of 2000x6000mm, imported ball screws, and a robust carousel tool change system, this machine ensures high cutting accuracy and stability for various complex engraving and cutting tasks. This machine sells well in Muharraq, Bahrain, Saudi Arabia, and passes through Bandar Abbas.
Features
- Capable of both plane engraving and three-dimensional processing, suitable for intricate 3D work.
- Heavy-duty, quenched fuselage reduces vibration and enhances machine strength and longevity.

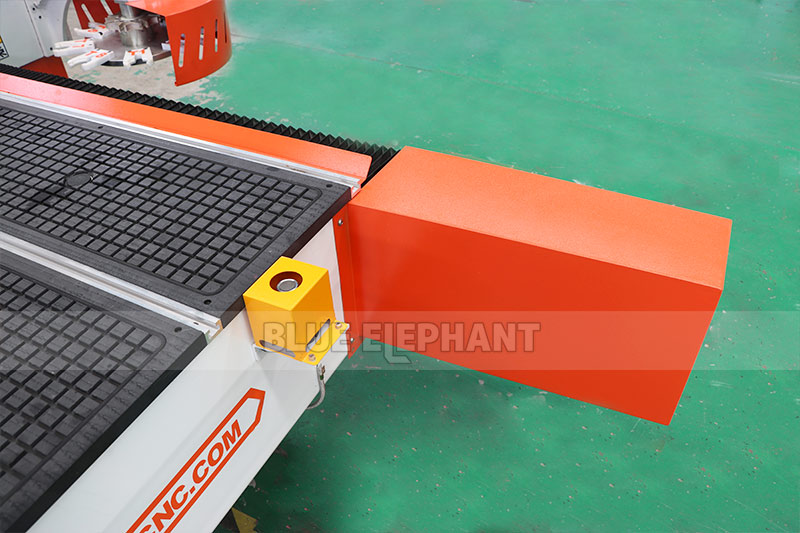

- Vacuum workbench ensures stable plate processing without damaging the material.
- Equipped with an Italy HSD ATC air cooling spindle and Japan YASKAWA motor and drive for superior performance.
Parameters
| Description | Parameter |
| Serial number | S20190723C |
| Model | ELECNC-2060ATC |
| Effective Working area | 2000x6000x600mm (optional) |

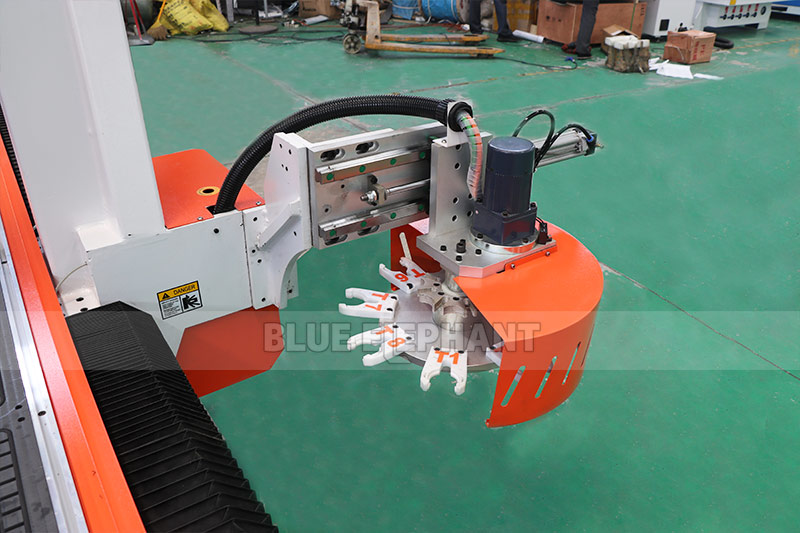

| Tool magazine | Carousel tool magazine with 8 tools |
| Spindle | Italy HSD ATC air cooling spindle |
| Motor and drive | Japan YASKAWA motor and drive |
| Control system | Syntec control system |
| Inverter | Taiwan Delta 11kw B inverter |
| Reducer | Japan Shimpo reducer |
| Transmission | X,Y-helical rack pinionZ axis with TBI ball screw |
| Structure | Welded machine structure |
| Tool sensor | Auto Tool sensor system |
| Lubrication | Auto Lubrication system |
| Guide and rails | Taiwan PMI Linear guide and rails |
| Table surface | T-slot and vacuum table combined |
| Cable | Shanghai Cardiff |
| Limited switch | Japan Omron limited switch |
| Voltage | 220~380V / 50~60Hz (customized) |
| Guarantee | 12 months |
| Spare parts | High soft shield with copper wire to protect against static electricity |
