Description

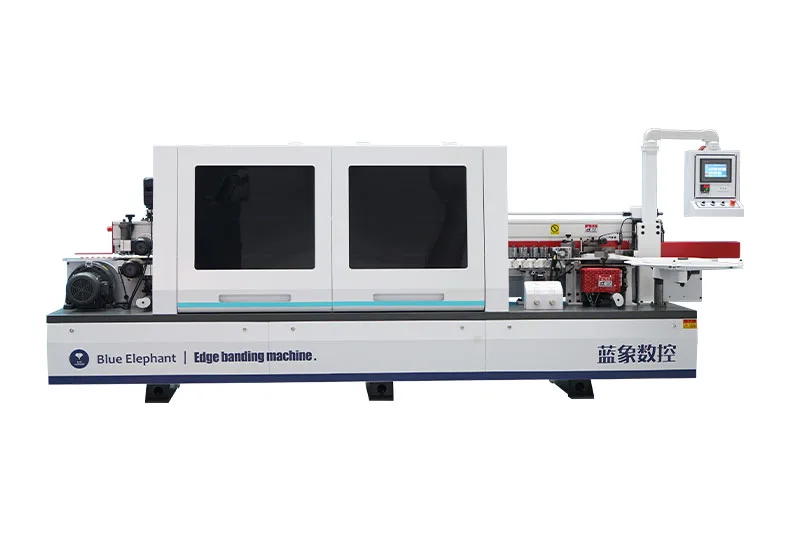

This automatic edge bander machine is extensively used in the furniture production industry and can be customized to meet various needs. It is designed for ease of use, providing fine edge sealing, a smooth feel, and seamless sealing lines, making it ideal for high-quality furniture production.

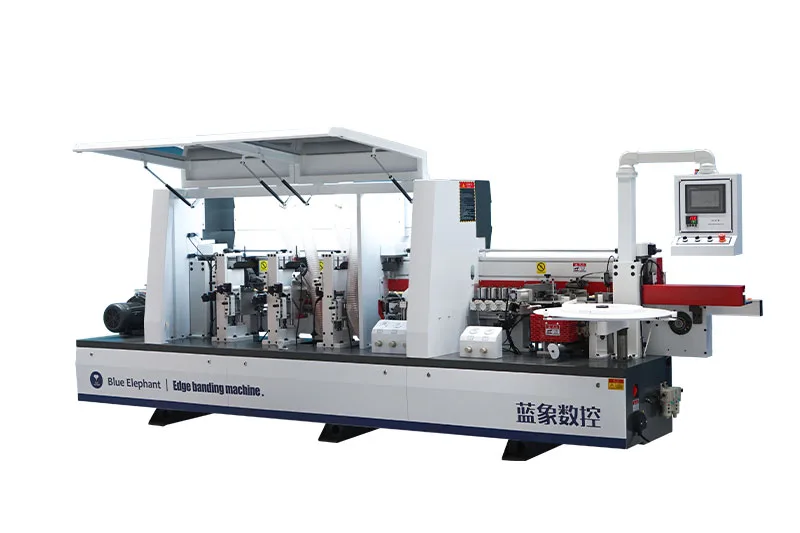

Equipped with a fully enclosed safety cover and an imported travel switch, this machine ensures worker safety during operation. It can handle different materials such as MDF, blockboard, and plywood, performing functions like glue coating, edge sealing, trimming, scraping, and polishing in a single process. It is a hot item in Ankara, Turkey, Ras Tanura, Khobar Port.
Features
- High-Performance Motor: Utilizes a UFC high-speed motor with a maximum power of 10kw, enhancing processing accuracy.
- Safety Features: Comes with a closed safety guard and an imported travel switch to ensure worker safety.

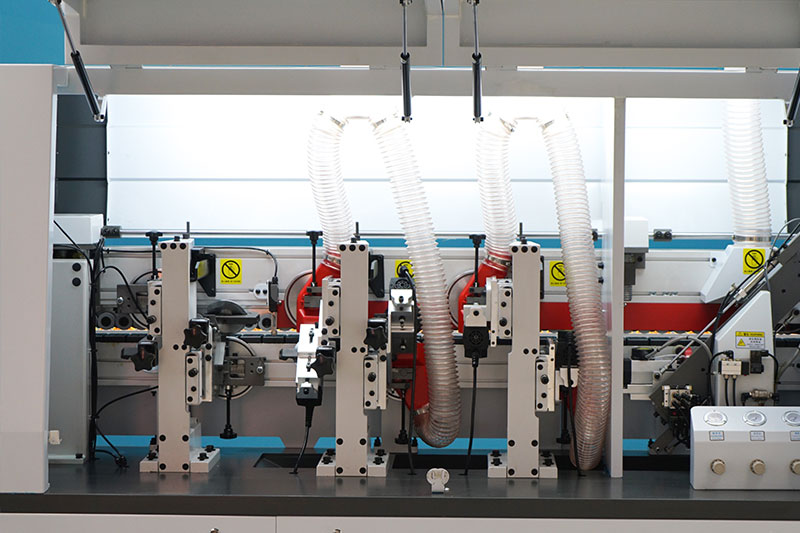

- Versatile Processing: Capable of processing MDF, blockboard, plywood, and other materials, performing multiple functions at once.
- Easy Maintenance: Designed for simple and convenient maintenance, with dedicated online and offline support.
Parameters
| Model | E-60 |
| Machine Size | 4780x970x1800mm |
| Inverter | Yatai |
| Low voltage electrical appliance | Korea LS Power Generation |
| Temperature control table | Korea Autonics |
| Travel switch | South Korea Kaikun |
| Cylinder | WSN |
| Gas source parts | Billion days |
| Gear reducer | Taiwan Shan State |
| High speed motor | UFC |
| Rail | Gao Xin Kate |
| Feed rate | 15-23m/min |
| Sheet thickness | 10-60mm |
| Edge band thickness | 0.4-3mm |
| Sheet width | ≥60mm |
| Working pressure | 0.6Mpa |
| Total power | 10kw |
PS: Both the working area and specifications can be customized according to your requests.
