Description

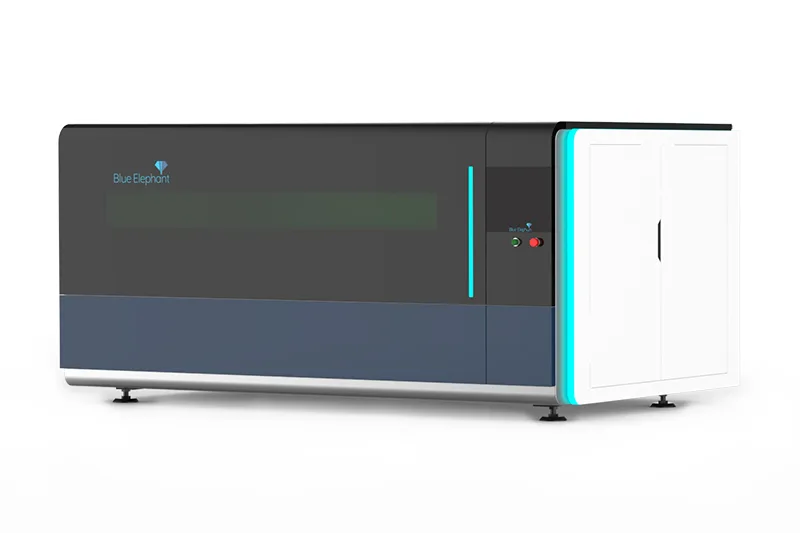

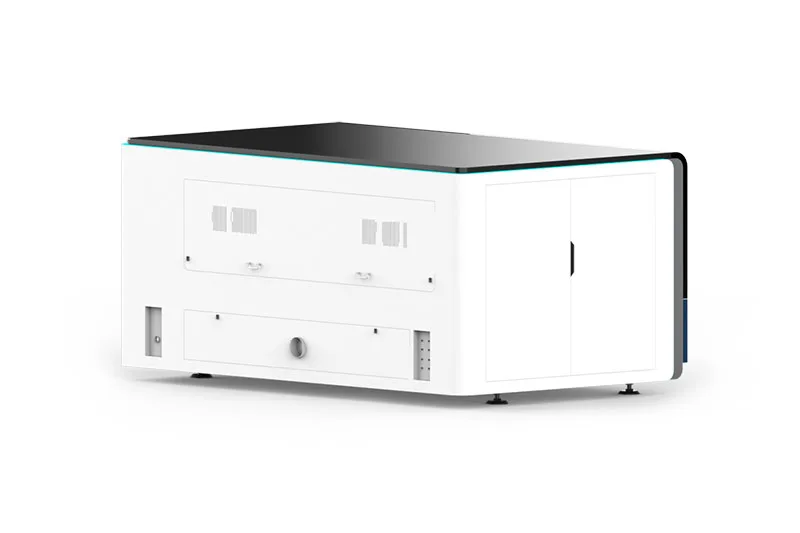

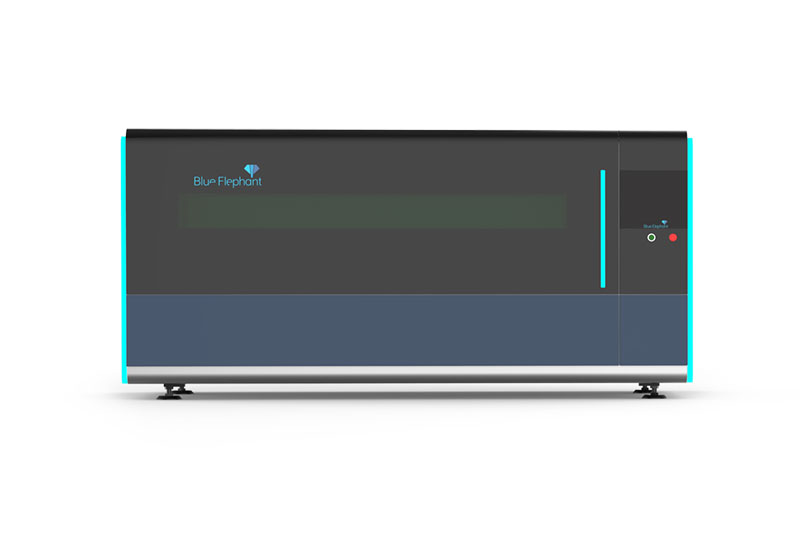

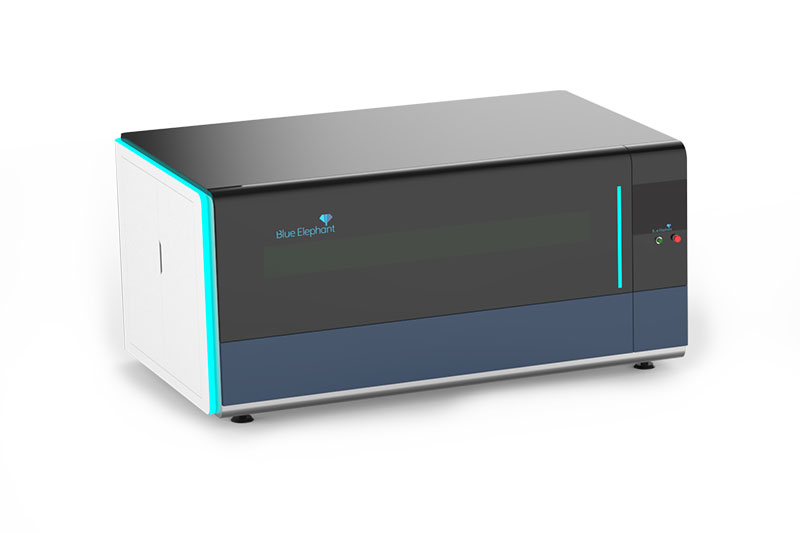

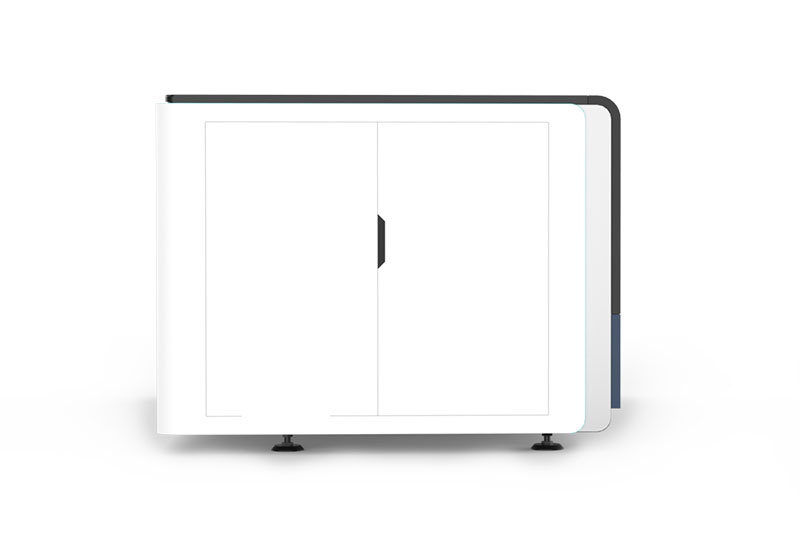

This high power fiber laser cutting machine stands out with its stable laser power, excellent beam pattern, high peak power, and high efficiency. It’s cost-effective, safe, stable, and easy to operate. The machine features a fully enclosed safety design, a large-format body, and high-speed maneuverability. It is hot selling in Jordan, Aqaba, Israel, Qatar.
Features
- High Efficiency: This machine boosts cutting efficiency by over 20%, providing stable and reliable performance. It’s capable of handling complex, high-performance application scenarios, catering to customers from various sectors.
- High Speed and Stability: The machine’s lightweight, high-density, and rigid structure ensures high stability and superior dynamic performance.
- Stable Machine Tool: The integrated bed is frameless and unaffected by thermal changes, effectively preventing the risk of bed thermal deformation due to high power.
- High Performance: This high-power fiber laser cutting machine excels in cutting a variety of materials, including stainless steel, tungsten steel, copper, alloy, cast iron, galvanized plate, color steel plate, sound insulation board, and more.
Parameters
| Model | ELECNC-9090Q | ELECNC-1390Q | ELECNC-1313Q |
| Working area | 905*905mm | 1305*905mm | 1305*1305mm |
| Machine size | 2500*2250*1950mm | 2500*2250*1950mm | 2500*2250*1950mm |
| Machine weight | 1.3t | 1.4t | 1.5t |
| Worktable bearing capacity | 140kg | 210kg | 300kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G | 1.2G |
| Laser power | 1kW – 3kW | 1kW – 3kW | 1kW – 3kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto | Auto | Auto |
| Machine bed | Sheet welded bed | Sheet welded bed | Sheet welded bed |
| Max. running speed | 100m/min | 100m/min | 100m/min |
