Description

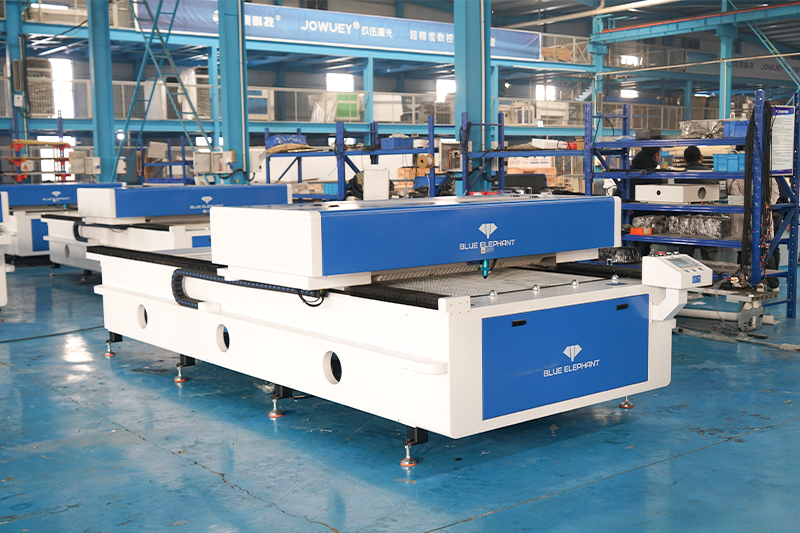

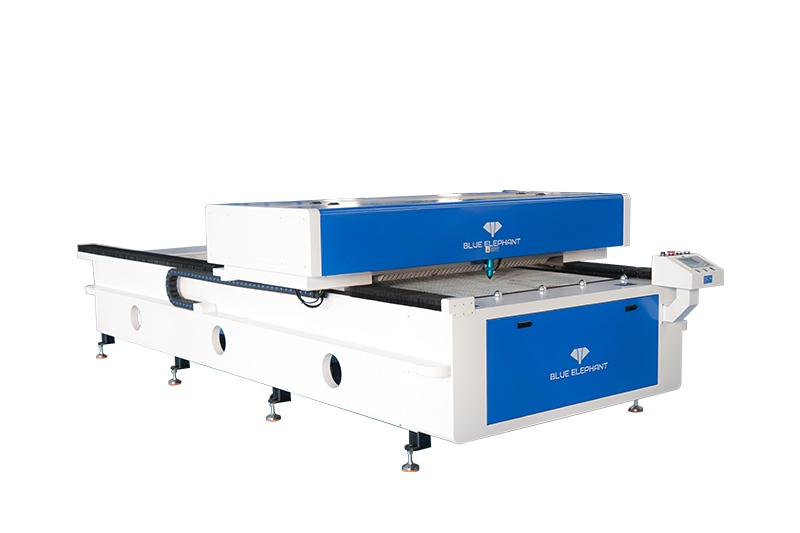

The CO2 laser engraving cutting machine is a high-powered device with up to 650W, offering fast processing efficiency and is warmly welcomed. It is capable of cutting non-metallic materials such as acrylic boards, PVC, wood, and MDF. For inquiries about material processing capabilities, our laboratory can provide the necessary answers. It is hot selling in Israel, Haifa, Ashdod, United Arab Emirates.
Features
- High power: Utilizes a 650W CO2 laser to enhance work efficiency.
- High security: Equipped with fire protection devices and smoke exhaust devices for safety.
- Format support: Supports graphic formats such as PLT, DXF, AI, BMP, RLD.
- Wide application: Applicable in various industries, including handicraft products, architectural models, decoration, clothing, textiles, and leather.
Parameters
| Model | ELECNC1331 |
| Processing area | 1300mm*3100mm |
| Color | Blue and White |
| Control System | RUIDA6445G |
| Laser power | 650w CO2 laser |
| Laser type | Sealed CO2 glass laser tube |
| Cutting speed | 0-600mm/s |
| Cutting thickness | For example, it can cut acrylic of 0-25mm thickness, the cutting thickness for other materials is determined by the material itself. |
| Position system | Red dot |
| Support graphic format | PLT、DXF、AI、BMP、RLD |
| Motor & drive | Servo motor and drive |
| Working voltage | 220V, 60Hz, 1Phase |
| Working table | Honeycomb working table |
| Packing | Wooden box |
| Application | Cut (acrylic, plexiglass, wood, MDF, textile) |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Cooling system | CW6200 water cooler |
