Description

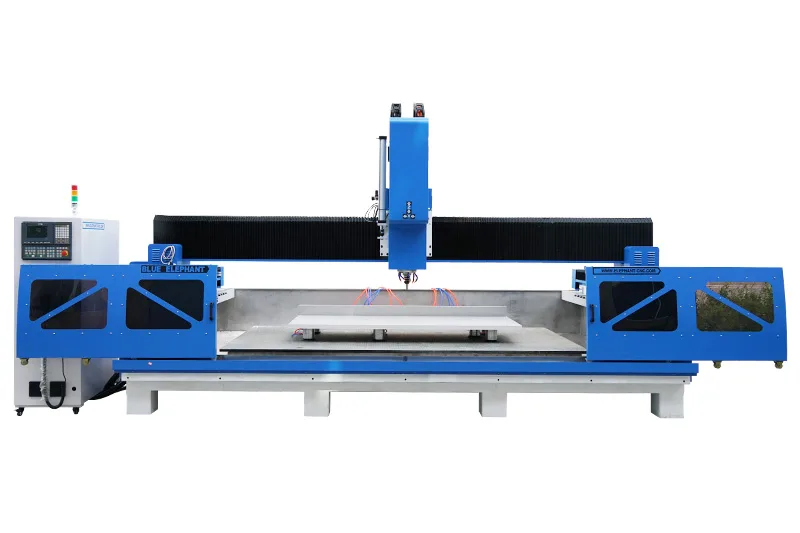

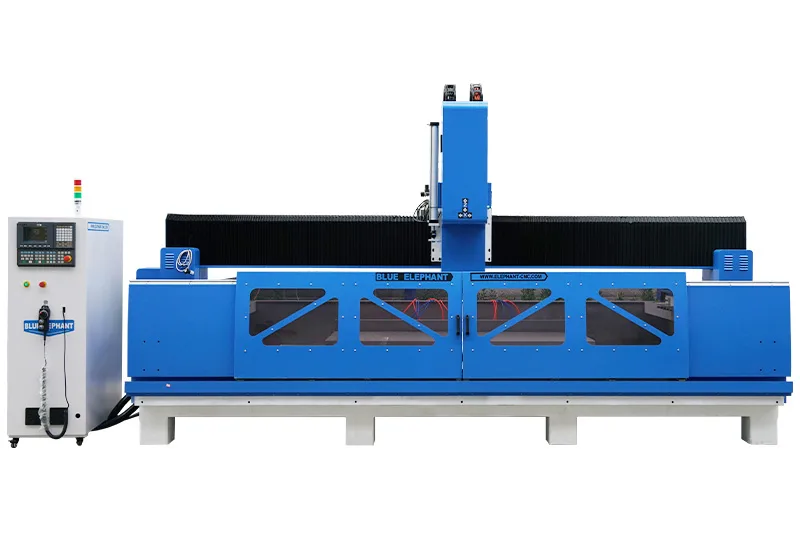

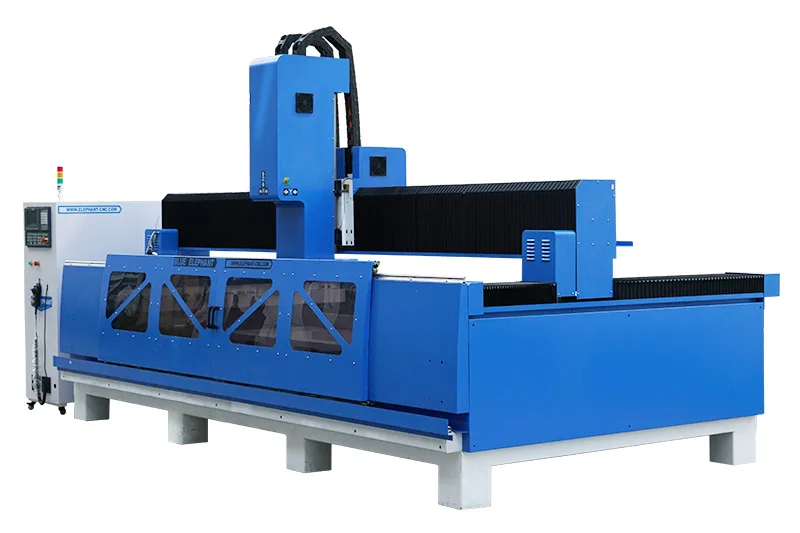

Experience the pinnacle of automation with our quartz stone CNC machine. This multi-functional stone CNC machine is adept at processing materials like marble and quartz stone, offering capabilities such as edge grinding, polishing, drilling, and milling. It’s the perfect tool for creating kitchen sinks, bathroom countertops, stone countertops, and more. With a 12-tool magazine that can be customized for additional capacity, this machine simplifies operation and enhances production efficiency. It is hot selling in Saudi Arabia, Jeddah, Jubail, Ras Tanura.
Features
- Intelligent one-click operation makes it simple and convenient, reducing labor costs.
- Equipped with a water-cooled spindle and a 16-tool magazine for high power, rapid tool changes, and efficient automatic loading and unloading.
- The work surface features a suction cup connected to a vacuum pump for better material fixation and high-precision processing.
- The z-axis can extend up to 500mm, and an automatic lubrication system ensures smooth processing and high-quality workpiece production.
Parameters
| Model | ELECNC3015 |
| X,Y axis travel | 3000*1500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 500mm, option: 400mm, etc |
| Spindle type | Kenturn 7.5kw water cooling ATC spindle |
| Inverter type | 7.5kw inverter |
| Tool magazine | 12pcs tool magazines |
| Tool holder with collet | 12pcs BT40 |
| Control system | Syntec 60WE |
| Driving system | 1KW YASKAWA servo driver and motor |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | TaiwanLinear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-30m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | More than 0.6mpa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
Optional Items
| Working area | 3000*1500*300mm |
| Spindle | KENTURN spindle |
| Inverter | Taiwan Fuling inverter |
| Tool magazine | 12 linear tool changer with 12 BT 30 tool holder |
| Motor and driver | Leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Tool sensor | Automatic tool sensor |
| Limit switch | OMRON limit switch |
