Description

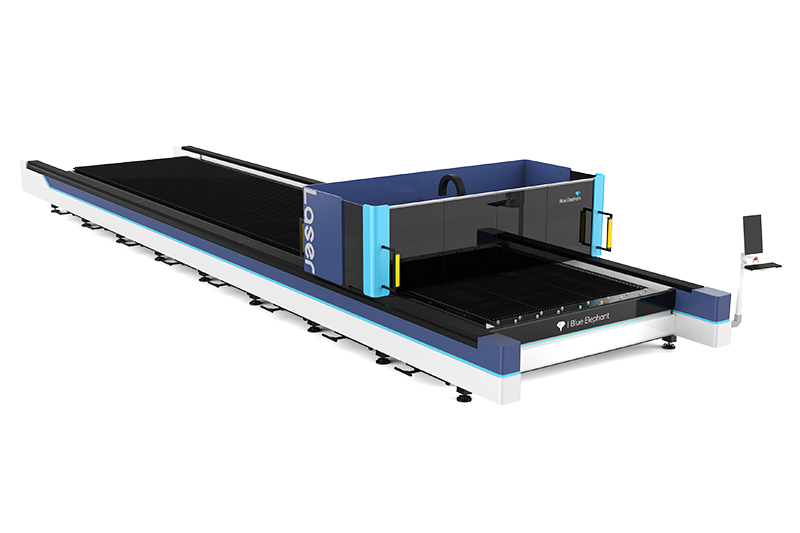

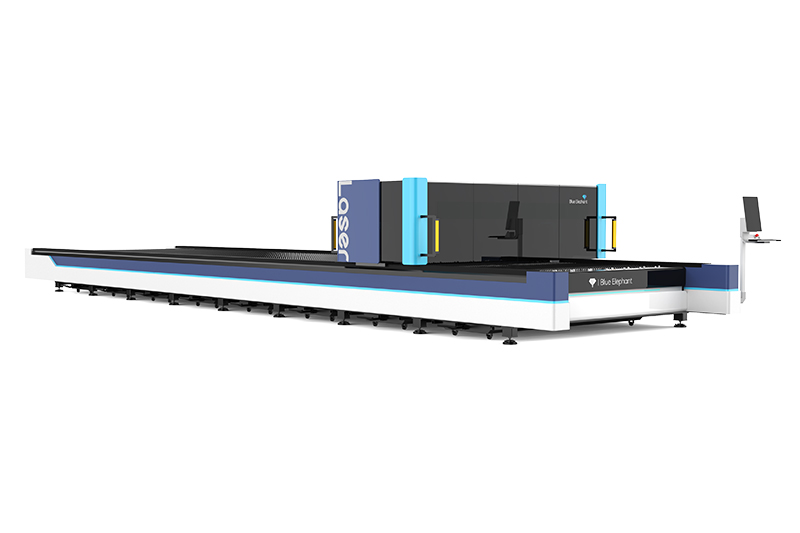

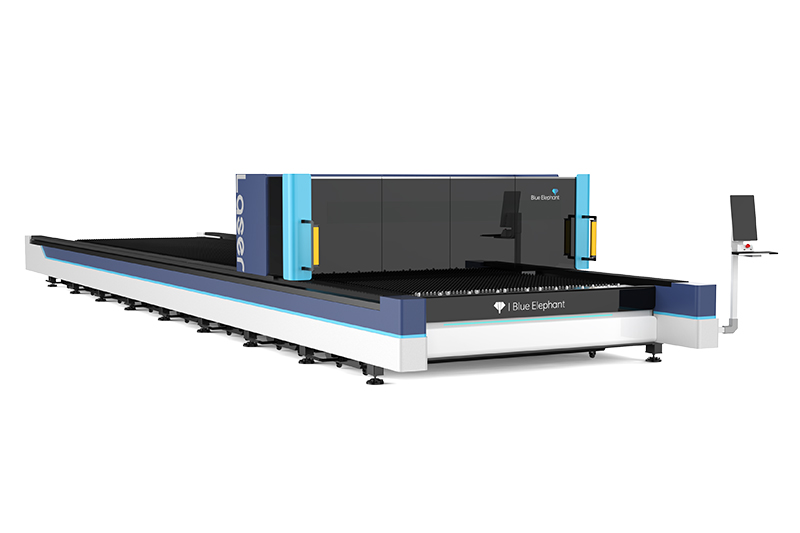

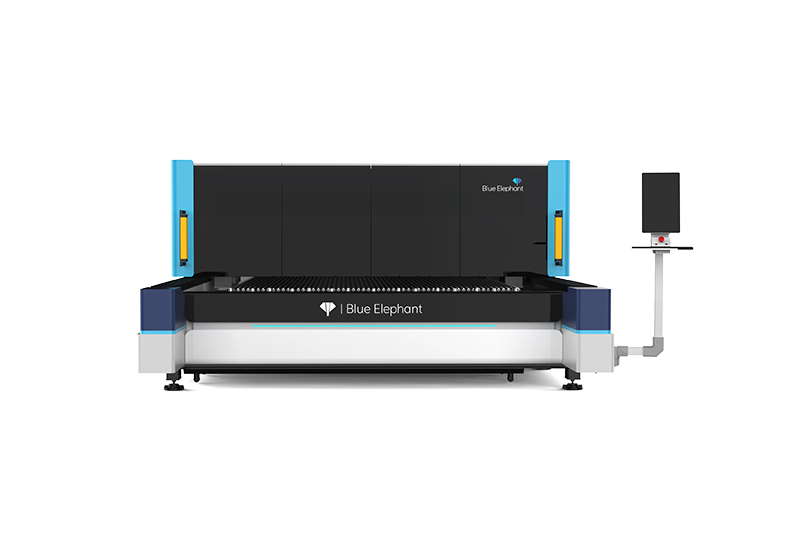

This high-powered laser metal cutting machine is capable of swiftly cutting and changing plates, making it ideal for handling large metal workpieces. It employs a fiber laser to emit a laser beam with high energy density, which is focused onto the workpiece surface, causing the focused spot on the workpiece to melt and vaporize instantly. It is hot selling in Saudi Arabia, Yanbu, Ras Al-Khair, Ras Tanura.
Features
- The machine is equipped with a precision laser cutting head, imported optical lenses for fine focusing, convenient adjustment, and precise cutting.
- It features a high-response double closed-loop control capacitance adjustment, ensuring stable and reliable cutting quality with low material requirements.
- The CNC system operation is straightforward and easy to learn, placing minimal demands on the operator.
- It comes with specialized cutting software, expert cutting technology, and a data saving and recall function.
Parameters
| Model | 1530SG | 2040SG | 2060SG | 2560SG | 2580SG |
| Laser power | 6KW-20KW | ||||
| Working area (mm) | 1500mm*3000mm | 2000mm*4000mm | 2000mm*6000mm | 2500mm*6000mm | 2500mm*8000mm |
| Positioning accuracy of X / Y axis | ±0.03mm | ||||
| Repeated positioning precision of X / Y axis | ±0.02mm | ||||
| Maximum speed | 200M/min | ||||
| Maximum acceleration | 2.0G | ||||
PS: All the working area and specifications can be customized according to your requests.
