Description

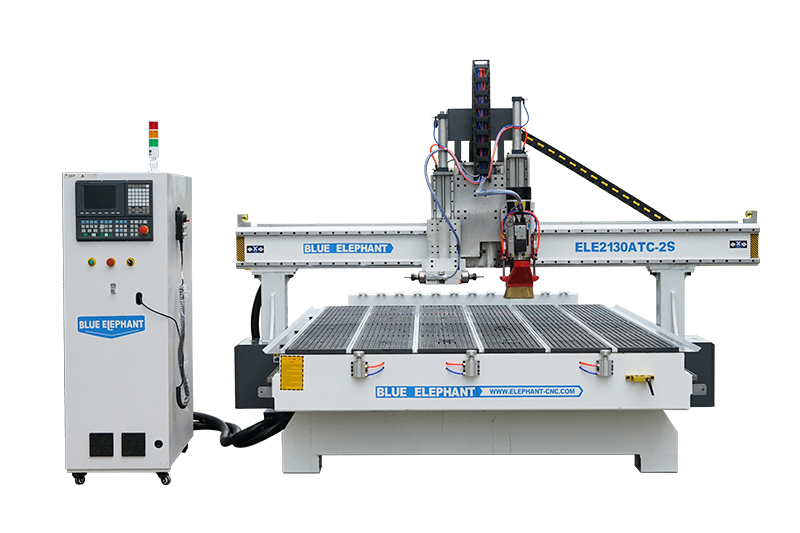

Introducing our dual spindle linear ATC CNC router with drill – a highly popular and efficient product. Equipped with HQD air-cooled spindles, this machine significantly extends the service life of the linear ATC CNC Router. The Japanese SHIMPO reducer ensures smooth and stable operation. It is hot selling in Saudi Arabia, Jubail, Ras Al-Khair, Ras Tanura.
Features

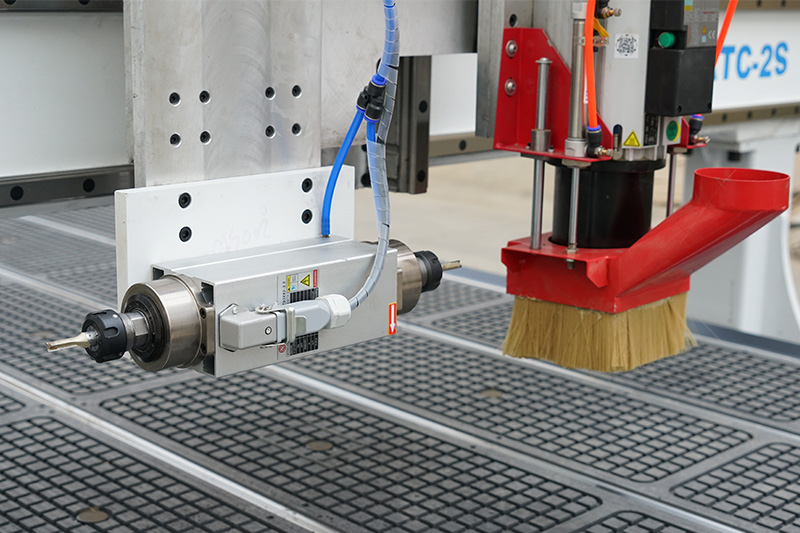

- Horizontal Spindle Design: Ideal for drilling side holes.
- Powerful Performance: Features an 850W Lexai servo motor for high power and speed.
- Versatile Material Compatibility: Suitable for wood, acrylic, artificial stone, marble, bamboo, PVC, aluminum, brass, and more.
- Advanced Components: Includes an 11kW Fuling inverter, Taiwan or Italy 5+4 vertical drills, and a heavy-duty body with quenching treatment.
Parameters
| Model | ELECNC2130 ATC |
| X,Y axis travel | 2100x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm,500mm, 600mm, etc |
| Spindle type | 9kw HQD air cooling spindle 3.5kw changsheng air cooling spindlein horizontal |
| Inverter type | 11kw Fuling inverter |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer 8pcs Option: carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 60WE controller, option：LNC MW2200 |
| Driving system | 850W Japan Yaskawa Servo Motor & driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot & vacuum work table option：aluminum working table |
| Positioning cylinder | 7 pieces (X3, Y4) |
| Linear guide | Taiwan linear guide |

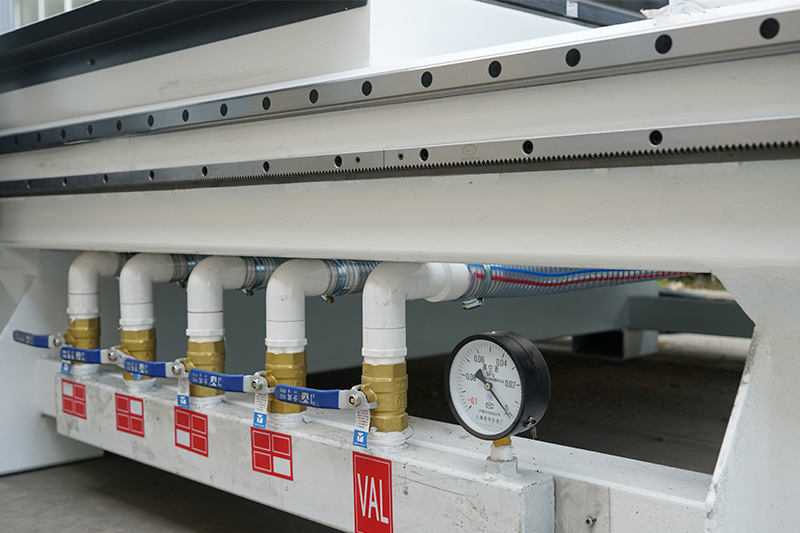

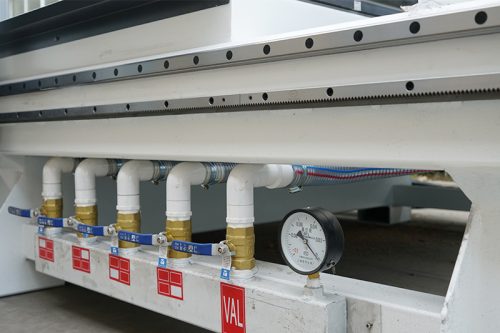

| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool sensor | Automatic tool setting |
| Cables | Germany Igus cables with CE certificate |
| Compatible software | Artcam, Aspire software |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-10m/min |
| Re-positioning accuracy | ±0.01mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.1mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
