Description

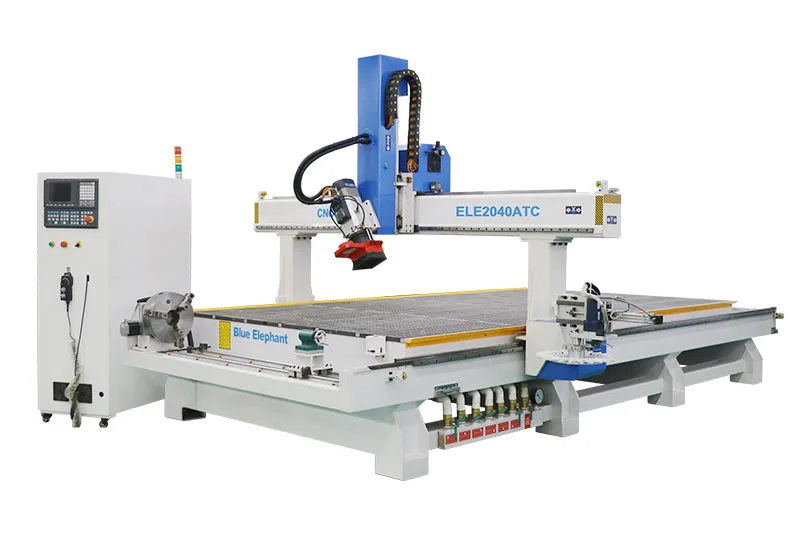

The 4 axis CNC router machine is a versatile 4-axis CNC machine equipped with a front-end rotating device. This machine is capable of processing column engravings such as table and chair legs, columns, and more. With a large work surface, it is convenient for processing large materials and a variety of materials including wood, plastics, stones, soft metals, and composite materials. It is sold in Saudi Arabia, Dammam, Khobar and passes through King Abdul Aziz Port.
Features
- The machine features an HSD ATC air-cooled spindle that can swing 180°. With automatic tool change and automatic direction reversal, it offers convenience and flexibility for processing various 3D complex workpieces.
- The front-end rotating device is positioned on the front side of the workbench to save space. It can cut cylindrical objects and has a wide range of applications.
- The size of the workbench and the diameter of the rotation axis can be customized according to specific needs.
- Equipped with an automatic lubrication system and ball screw, the machine ensures smooth transmission, prevents jamming, saves transmission time, and improves efficiency.
Parameters
| Descriptions | Parameters |
| Model | ELECNC-2040ATC-4 |
| Working size | 2060*4000*400mm |
| Color | White and Blue (customizable) |
| Working Voltage | 380V, 3Phase, 50Hz |
| Control system | Taiwan SYNTEC control system |
| Spindle | 9kw Italy HSD ATC air cooling spindle |
| Inverter | 11kw Delta Inverter |
| Motor & Driver | 850w Japan YASKAWA servo motor and 1kw driver |
| Table surface | T-slot and vacuum working table |
| Lubrication system | Auto Lubrication system |
| Automatic tool magazine | 12 |
| Gantry structure | Gantry moving |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Transmission | X,Y rack and pinion drive, Z Taiwan TBI ball screw |
| Rail | ABBA 25# |
| Vacuum pump | 2 sets 5.5kw water circulation vacuum pump (380V, 3Phase, 50Hz) |
| Dust collector | 1.5kw new type double packet dust collector (380V, 3Phase, 50Hz) |
| Tool sensor | Automatic tool sensor calibration |
| Rotary device diameter | 300mm |
