Description

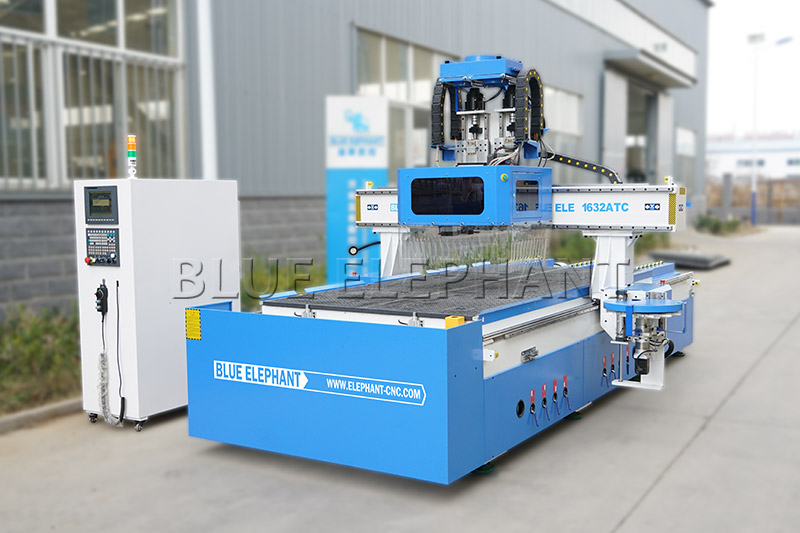

The ELECNC-1632 ATC CNC Router Machine offers versatile functionality with its drilling capability and 12-disc tool magazine. Featuring a robust design and advanced components, this machine ensures efficient and precise processing, making it an excellent investment for diverse production needs. It is in high demand in the State of Qatar, Doha, Sharjah, and Turkey.
Features
- Linear ATC with 7 tools and a circular ATC with 12 tools for high efficiency.

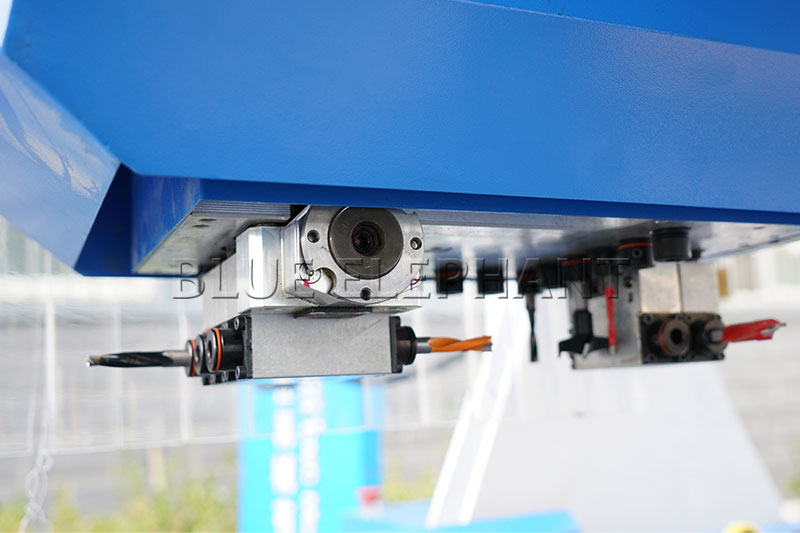

- Equipped with a BHZ24 row drill, enabling multiple drilling and cutting operations simultaneously.
- Advanced cooling system with an external air conditioner for superior heat dissipation and safety.
- Automatic oil lubrication system for easy maintenance and extended machine life.
Parameters
| Serial Number | S20191221Z |
| Model | ELECNC-1632 ATC |
| Working area | 1560x3200x400mm |
| Spindle | ATC 9.0KW Italy original HSD spindle, 6000-24000RPM |
| Inverter | Taiwan Delta B Model 11.0KW |
| Tool magazine | This machine comes with a linear ATC with 7 tools + a circular ATC with 12 ordinary tools, which is highly efficient. |
| Control system | Taiwan SYNTEC21MA control system with MPG handle wheel |
| Motor and driver | Japan YASKAWA 1.3KW servo motor and drivers with Japan Shimpo reducer |
| Frame | New type thicker and bigger heavy duty 8 mm |
| Working Table | Vacuum table |
| Transmission | This machine is equipped with X, Y spiral gear rack pinion and Z axis with 2510 TBI ball screw. |
| Lubrication system | Automatic oil lubrication system |
| Voltage | 380V, 3Phase, 50HZ |
| C axis | Italy HSD C axis with Japan Yaskawa 400w Servo motors |
| Boring Head | Italy HSD BHZ24 Boring Head |
| Tool sensor | Automatic tool sensor system |
| Software Compatibility | ARTCAM Software |
