Description

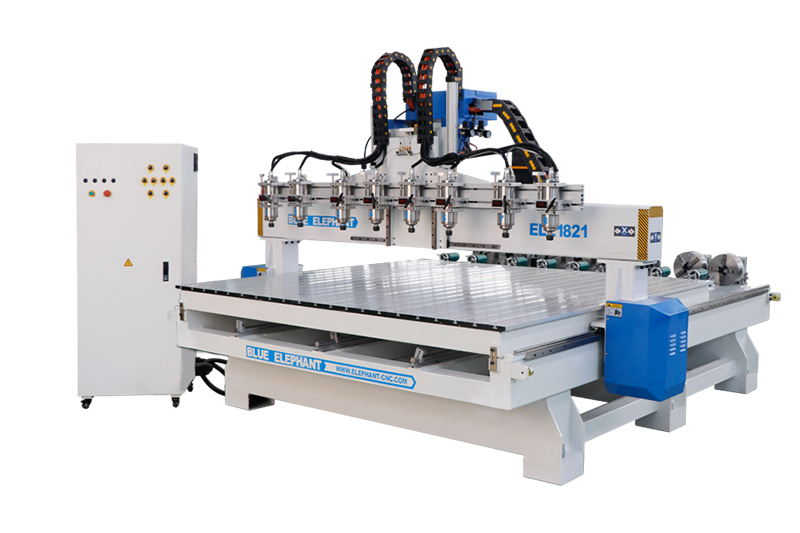

This is a woodworking CNC router machine equipped with 8 spindles, 8 rotating devices, a DSP B18 control system, and a Japan Yaskawa servo motor and driver. It is hot selling in Bahrain, Muharraq, Qatar.
Features
- The machine can be configured with 8 or more spindle groups.
- When used with the 2036 multi-axis CNC milling machine, the machine can automatically change tools.
- It features a rotating device that can carve cylindrical objects, offering multi-functional processing of 2D, 3D, and 4D graphics.
- The machine employs a renowned water-cooled spindle, known for its high cooling effect, durability, and long service life.
Parameters
| Model | ELECNC-1821-8S+8R |
| Working area | 1820*2100*200mm( can be customized) |
| Voltage | 380V, 3ph, 50Hz( can be customized) |
| Control system | DSP B18 control system |

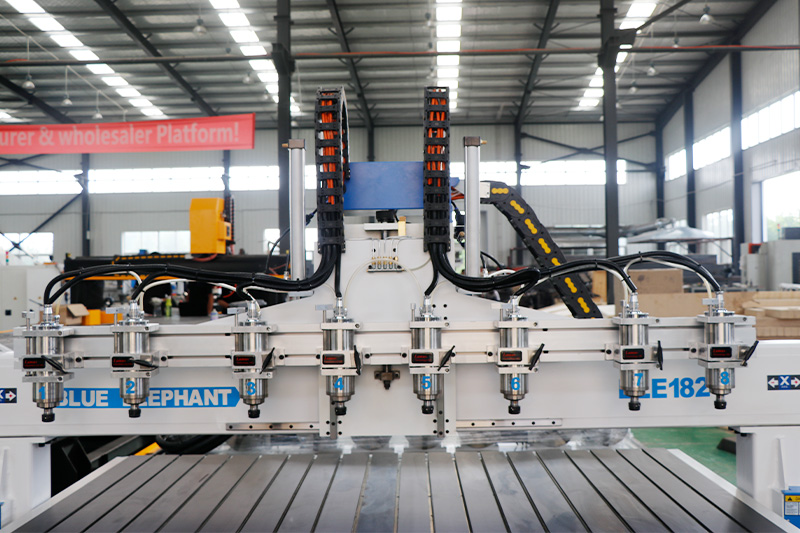

| Spindle | 2.2kw*8 Changsheng water cooling spindle |
| Inverter | 2.2kw*8 fuling inverter |
| Motor and driver | It uses 4 pieces of 850W Yaskawa servo motors and a 1KW Yaskawa motor driver, which makes the processing efficiency fast. |
| Table structure | This machine uses a new type of thicker and larger heavy-duty welded frame and gantry, which provides good stability. |
| Table surface | Removable T-slot work table |
| X,Y, Z axis transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| Linear rail | ABBA/PMI/HIWIN Linear square guide #20 |
| lubrication system | Manual lubrication system |

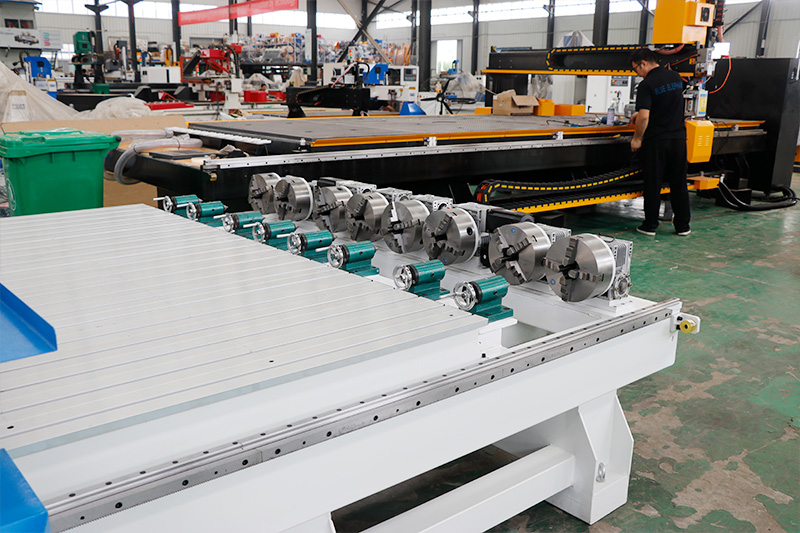

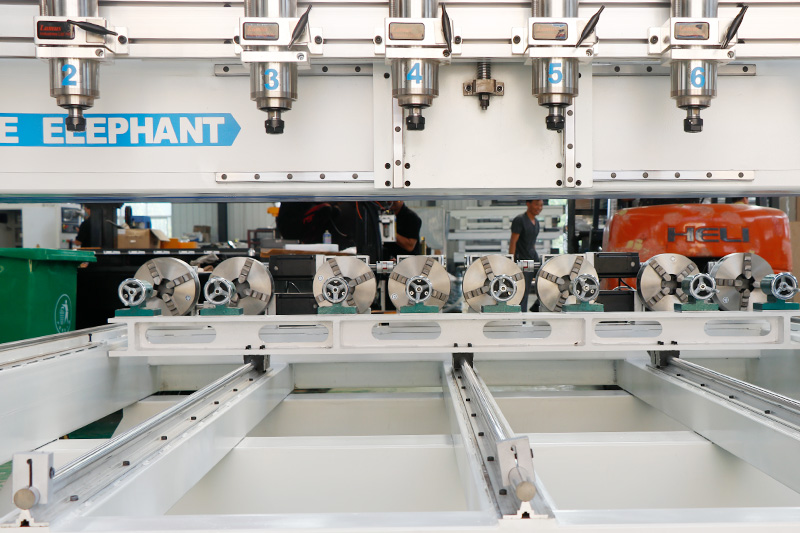

| Rotary device | Rotary device with 200mm diameter |
| Limited switch | Japan Omron limited switch |
