Description

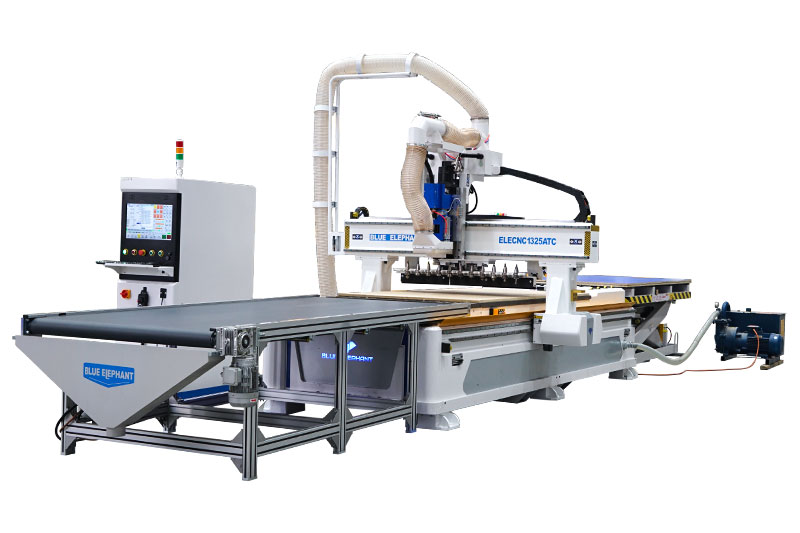

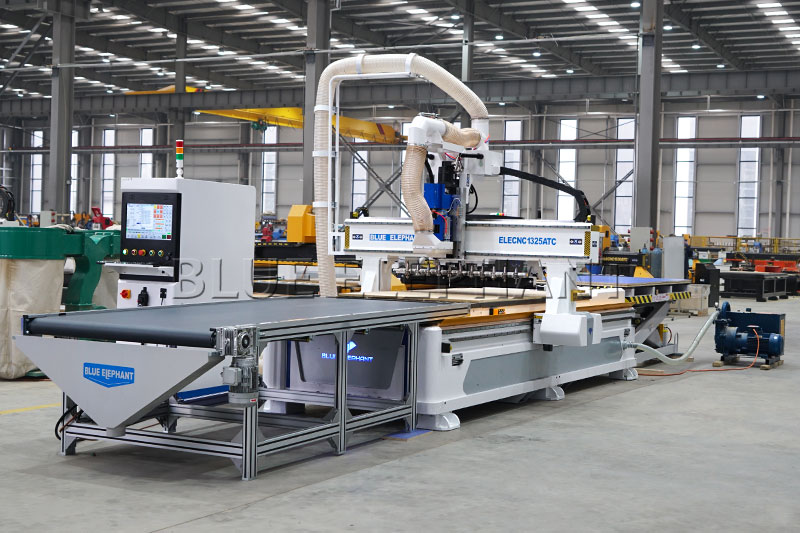

Experience the future of manufacturing with our high-efficiency nesting CNC router, featuring automatic loading and unloading capabilities. Designed with the best HQD spindle, visual operating system, and a robust frame structure, this machine guarantees unmatched power, precision, and speed. Elevate your production process and achieve superior results. This machine sells well in Aqaba, Jordan and Yanbu Commercial Port.
Features
- Advanced Automation: The nesting CNC router is equipped with an automated loading and unloading system, significantly increasing productivity and reducing labor costs.
- User-Friendly Operation: Intelligent control system simplifies operations and maximizes panel utilization, making it accessible even for operators with minimal technical expertise.

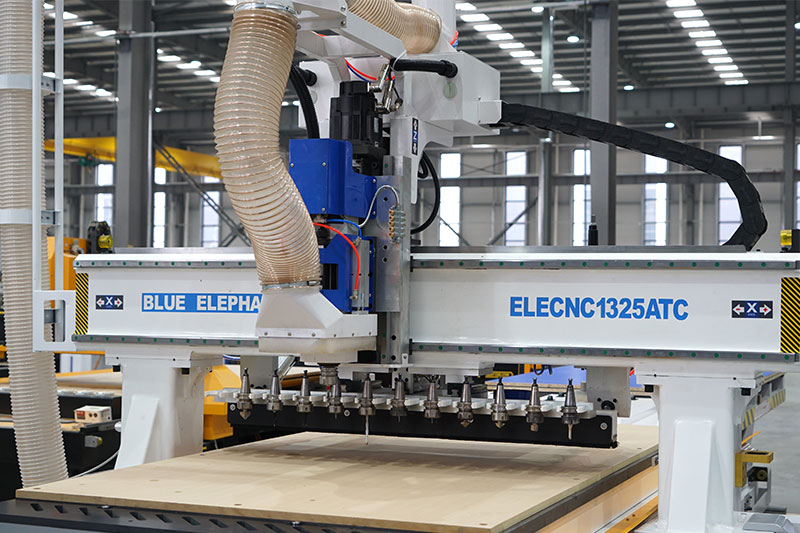

- Rapid Tool Changing: The automatic tool changer, located under the gantry, enhances the speed and efficiency of tool changes, ensuring continuous workflow.
- Versatile Processing: Capable of handling a wide range of complex products, this machine is perfect for producing customized furniture, from cabinets to wardrobes and more.
Parameters
| Items | Parameter |
| Model | ELECNC-1325 |
| Working area | 1300*2500*100 mm |
| Spindle | Chinse best HQD spindle 9KW |
| Spindle speed | 18000rpm |
| Motor and drive | 1.3KW Leadshine servo system |
| Control system | Taiwan LNC 2200 control system with MPG , keyboard and mouse |
| Inverter | 11kw Fuling |
| Collector | 5.5KW dust collector with two bags |
| Reducer | Japan Shimpo reducer |
| Voltage | 380V 3phase50HZ |
PS:All the working area and specifications can be customized according to your requests.
