Description

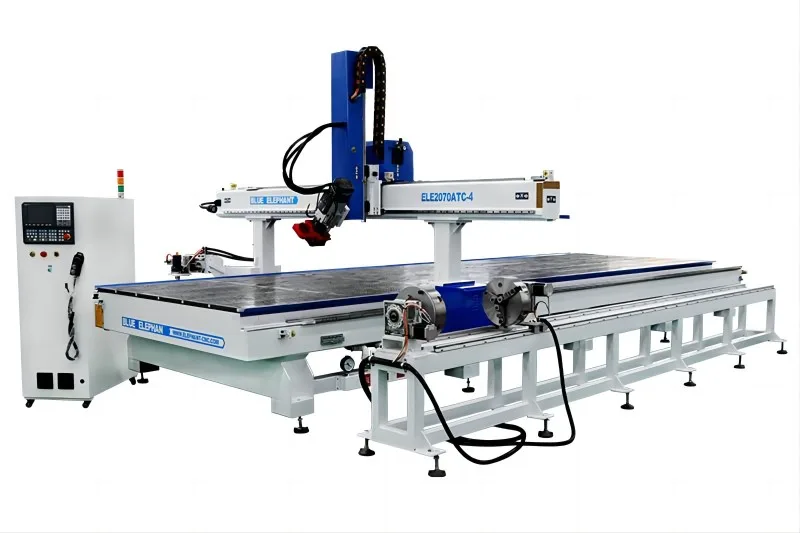

The 4 axis CNC router is a versatile machine equipped with a rotating device and an automatic tool changer. This 4 axis CNC router offers flexible and convenient operation, making it ideal for the 3D mold industry. The machine size can be customized to meet specific needs, and its robust, durable construction ensures stable performance. It is hot selling in Israel, Haifa, Ashdod, Iran.
Features
- The machine’s most notable feature is its movable rotating device, which can be positioned at the front or side of the workbench for easy operation and practicality.
- The z-axis can be elevated up to 700mm, and the specific size of the workbench can also be customized, allowing for a broader range of applications.
- The machine is equipped with a 9kw HSD air-cooled spindle that can swing between -90° and 90°, facilitating the engraving of cylindrical shapes and complex 3D designs.
- The machine uses German cable components certified by CE, ensuring operational safety and secure use.
Parameters
| Model | ELECNC2070ATC-4 |
| X,Y axis travel | 2000*7000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 500mm, 600mm, 700mm, etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw inverter |
| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: linear type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. Option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 9 pieces (X3, Y6) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
