Description

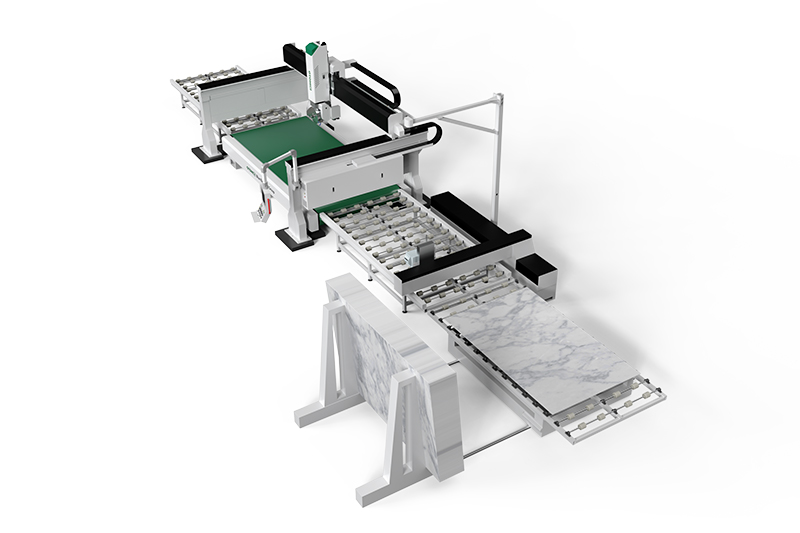

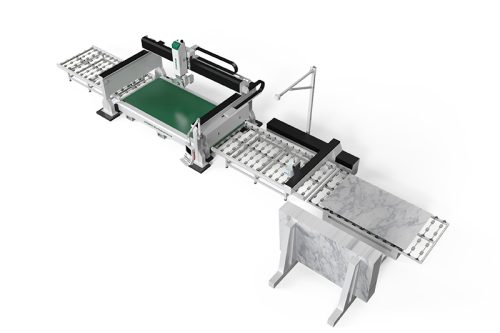

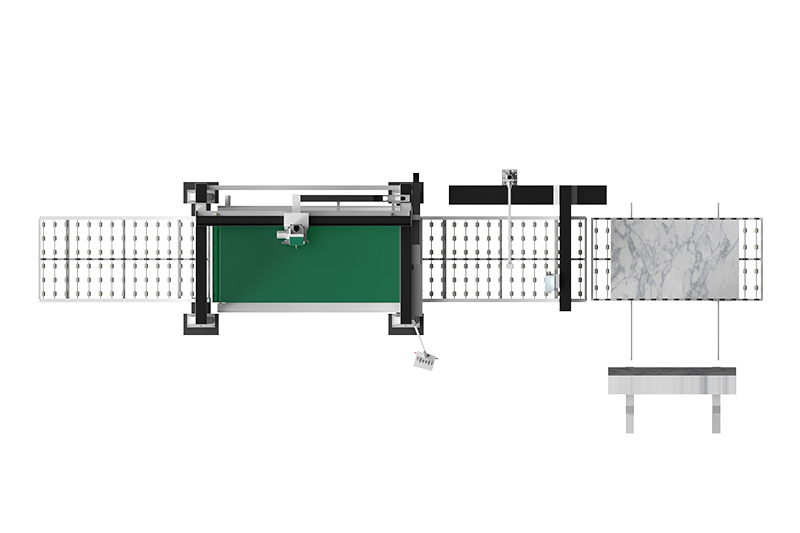

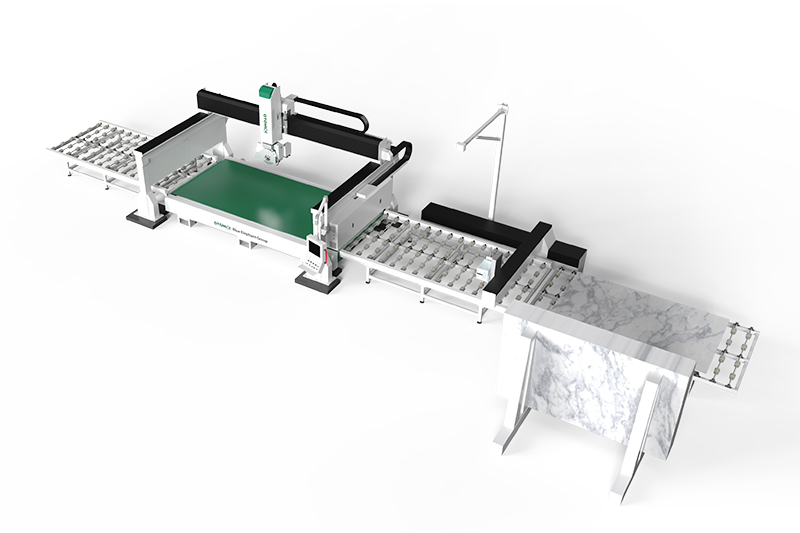

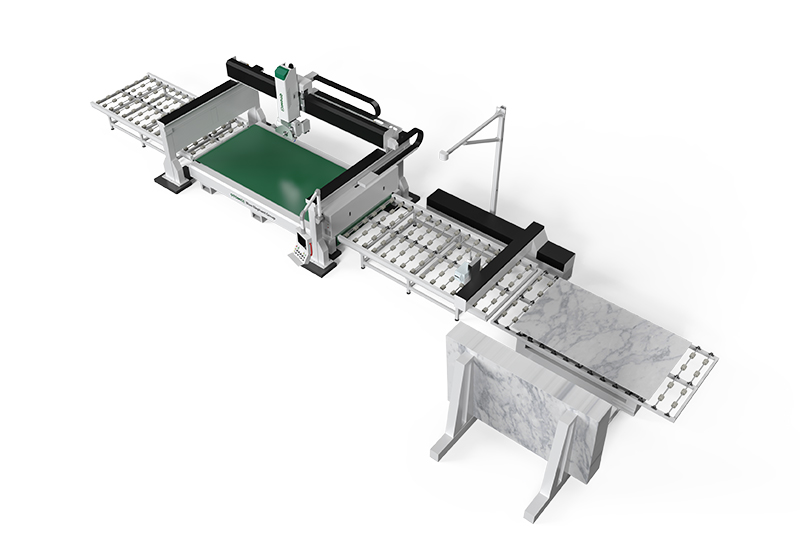

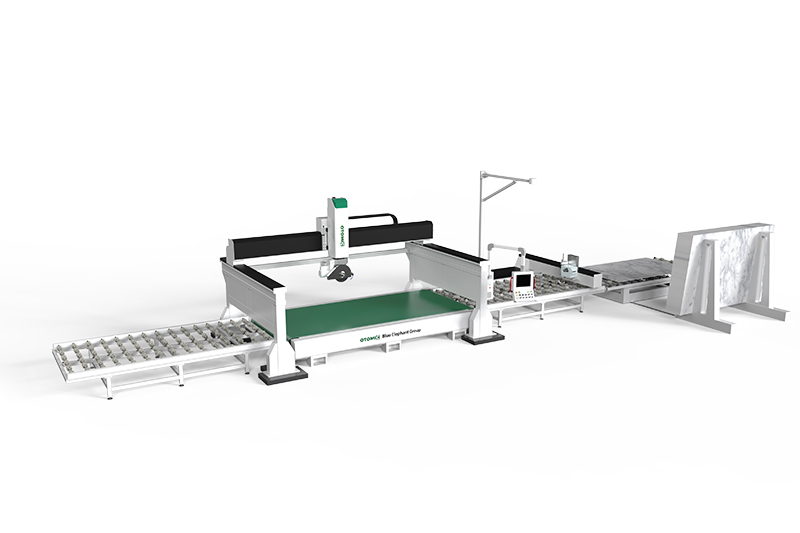

The CNC granite saw is a multi-functional machine capable of high-definition scanning, typesetting, and cutting. This cost-effective machine serves multiple purposes and is widely used in gardens, house construction, stone carving, and furniture industries. The cutting line comprises three parts: a loading machine, a five-axis bridge saw machine, and a cutting machine. This fully automatic production line significantly reduces manpower and accurately cuts marble, granite, and other stones. It is hot selling in Saudi Arabia, Dubai, Dammam, Tabuk.
Features
- Simply place the material on the loading machine for automatic transportation, saving loading time.
- The five-axis bridge saw machine is equipped with a camera for automatic picture taking and cutting position location, ensuring high processing accuracy and ease of operation.
- The unloading machine can automatically unload and classify, reducing the workload of workers.
- The automated integrated production line requires no downtime, resulting in high production efficiency.
Parameters
| QX3400-5X-LP Marble Stone Cutting Production Line | |||
| Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm |
| C axis | ±365° | ||
| A axis | 0-90° | ||
| Maximum thickness | 80mm | ||
| Moving speed | 25m/min | ||
| Spindle | 22kw water cooling spindle, 4000rpm | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Worktable (optional) | Max. weight for feeding | 1500kg | |
| Max. speed for feeding | 10m/min | ||
| Saw | Dimension | 450mm | |
| Size | 18000×3500×3600mm | ||
