Description

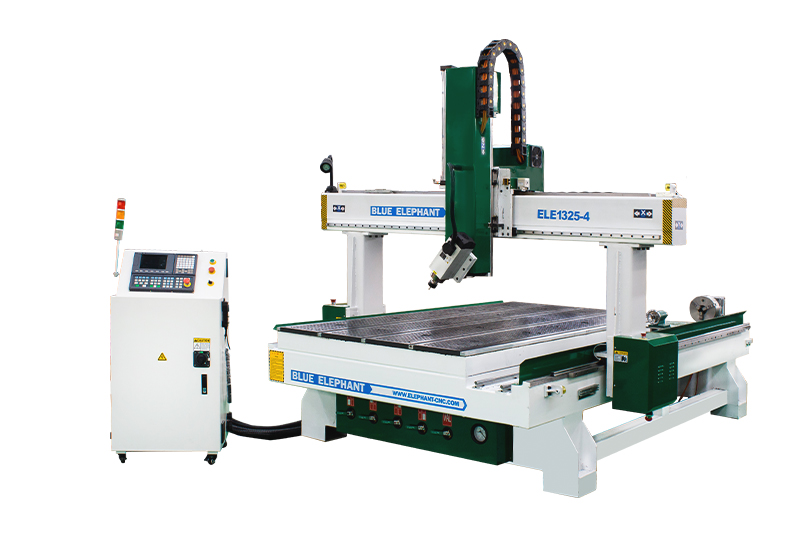

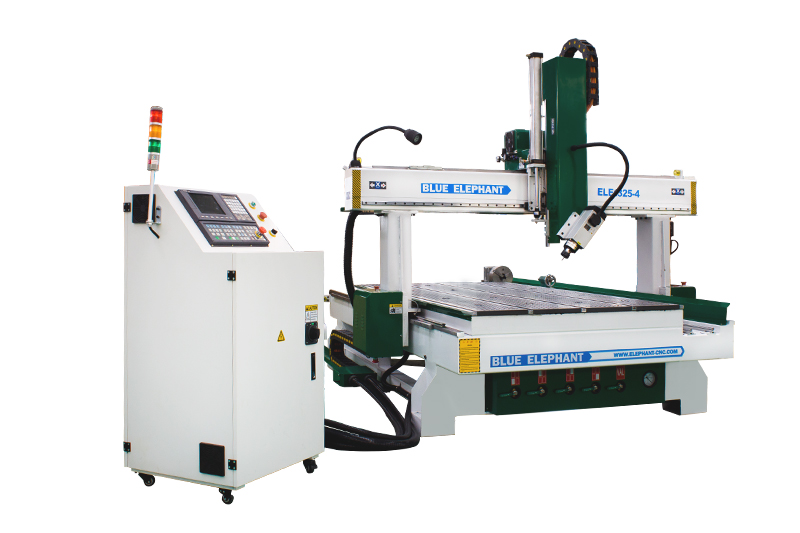

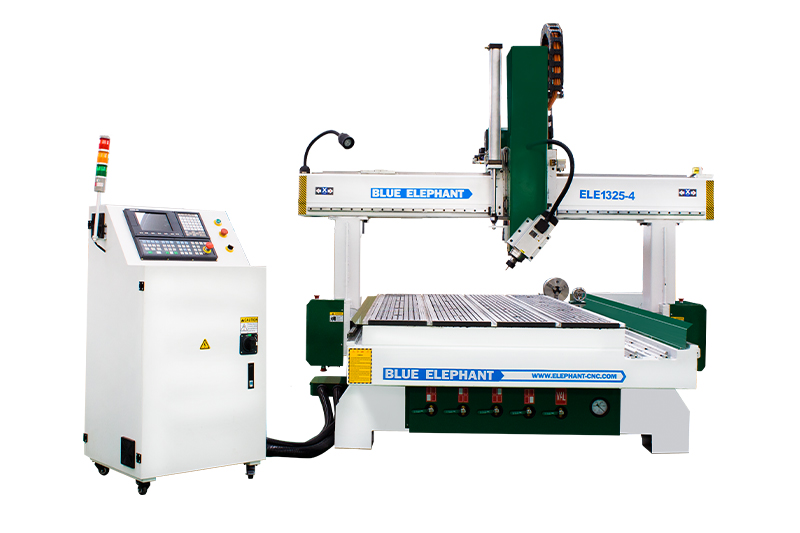

A high-performance rotary CNC engraver designed for both beginners and professionals. Equipped with a 6KW air-cooled spindle and Syntec 6MB control system, this machine offers unparalleled precision for 2D and 3D engraving tasks. Its robust construction ensures durability and stability, making it ideal for intricate woodworking and soft metal projects. It is hot selling in Saudi Arabia, Jeddah, Jubail, Yanbu.
Features
1. Customizable specifications to meet unique project needs.
2. Comprehensive training videos provided post-purchase for easy learning.
3. Advanced technology ensures superior performance and longevity.
4. Equipped with a rotary device for processing cylindrical objects.
Parameters
| Descriptions | Parameters |
| Model | ELE1325-4 |
| Working area | 1300*2500*400mm |
| Control system | Taiwan SYNTEC6MB Controller |
| Working Voltage | 380V or 220V |

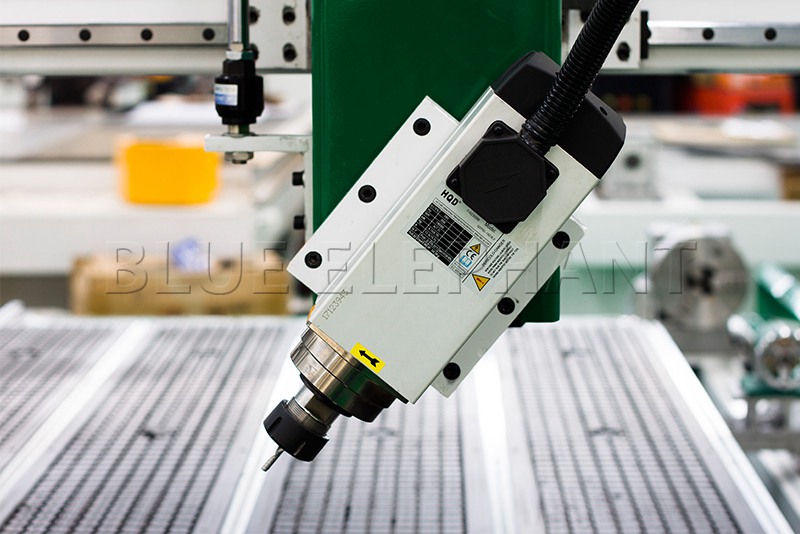

| Spindle | This machine uses a 6KW HQD air-cooled spindle, which can rotate 180 degrees. |
| Spindle speed | 0-18000rpm |
| Inverter | 7.5kw Fuling inverter |
| Motor and Driver | 750w Japan YASKAWA servo motor and driver |
| Table surface | T-slot and vacuum working table |
| Structure | It uses a heavy-duty 8mm steel bed and a 10mm moving steel gantry. |
| Lubrication system | Manual lubrication system |
| Transmission | X,Y axis: rack and pinion driveZ axis: Taiwan TBI ball screw
X,Y axis: Sweden ABBA square guide rails with 20mm |
| Vacuum pump | 5.5kw Votex vacuum pump |
| Control box | independent box |
| Software | UG |
| Rotary | 200mm diameter and 2000mm length of rotary device on Y axis |
