Description

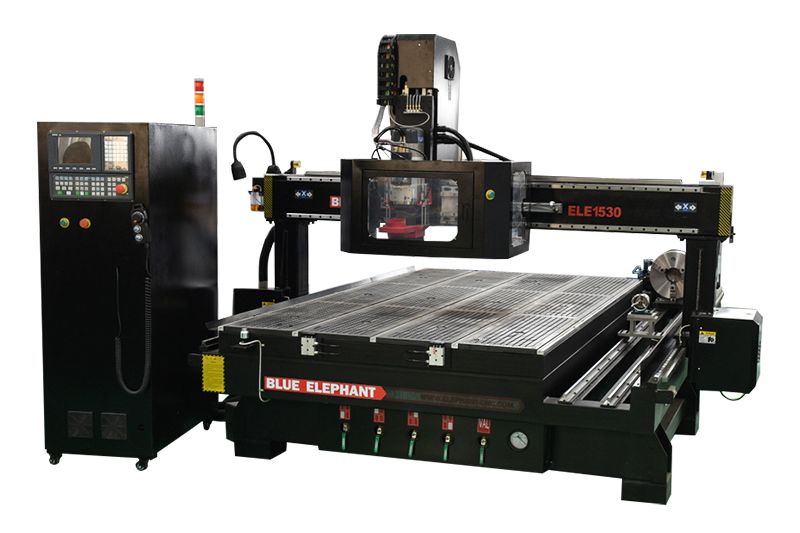

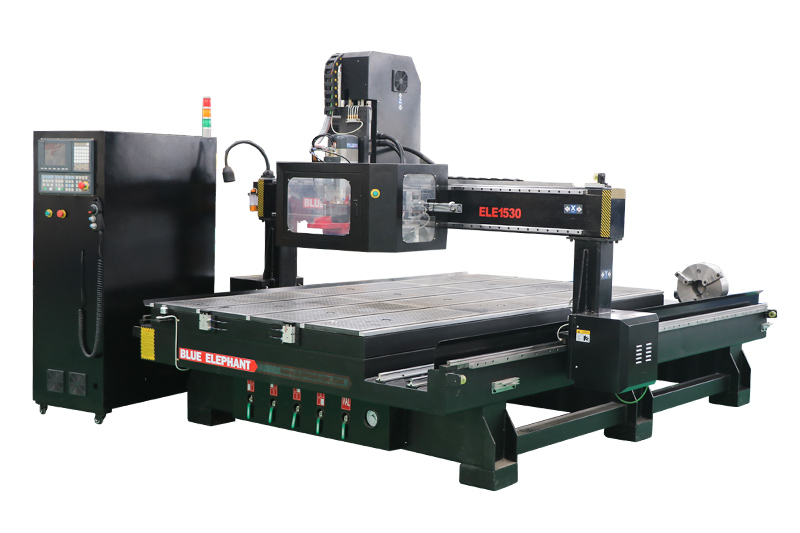

Introducing the Blue Elephant ELECNC-1530ATC-4, a state-of-the-art rotary CNC router designed for precision 3D wood carving. This machine features an automatic tool changer and rotary axis, enabling efficient and intricate designs on various materials. With its robust construction and automatic lubrication system, it ensures long-lasting performance and reliability. It is hot selling in Qatar, Kuwait City, Shuaiba, Israel.
Features
1. Equipped with an updated control system for enhanced efficiency.
2. Includes a dust collector for convenient and clean machine operation.
3. Utilizes high-quality components and accessories from well-known brands.
4. Stable gantry frame structure for consistent and accurate performance.
Parameters
| Description | Parameters |
| Model | ELECNC-1530ATC-4 |
| Working size | 1500*3000*400mm |
| Color | Black (customizable) |
| Working Voltage | 220V, 3Phase, 60Hz |

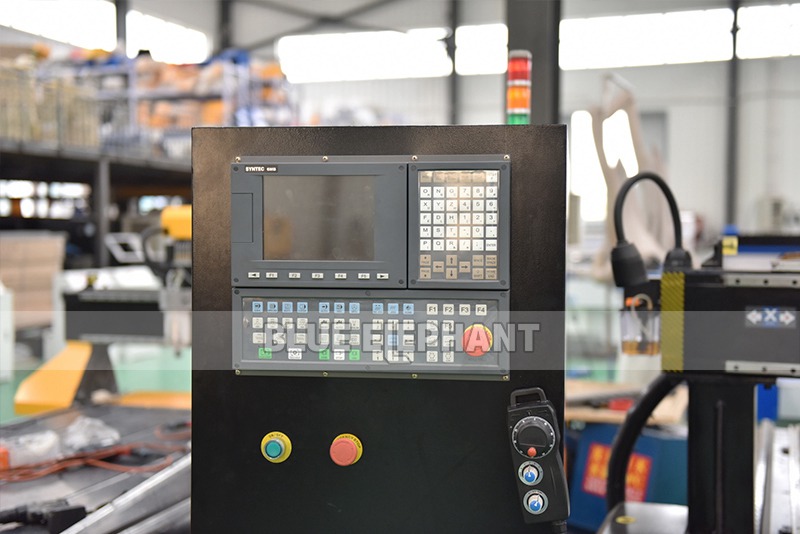

| Control system | Taiwan SYNTEC control system with handle |
| Spindle | 9kw Italy HSD ATC air cooling spindle |
| Tool holder | ISO30 |
| Inverter | 11kw Delta Inverter |
| Motor &Driver | 850W Japan YASKAWA motors and 1kw drivers |
| Traveling speed | 45m/min |
| Working speed | 25m/min |
| Auto tool changer magazine | Carousel |
| Tool slots | 8 |
| Table surface | T-slot and vacuum working table |
| Lubrication system | Automatic lubrication system |
| Gantry structure | Gantry moving |
| Structure | Bigger heavy duty welded frame and gantry |
| Transmission | Taiwan TBI ball screw |
| Rail | ABBA Linear square guide #25 |
| Vacuum pump | Water circulation vacuum pump |
| Dust collector | 1.5kw new type double packet dust collector(220V, 3Phase, 60Hz) |

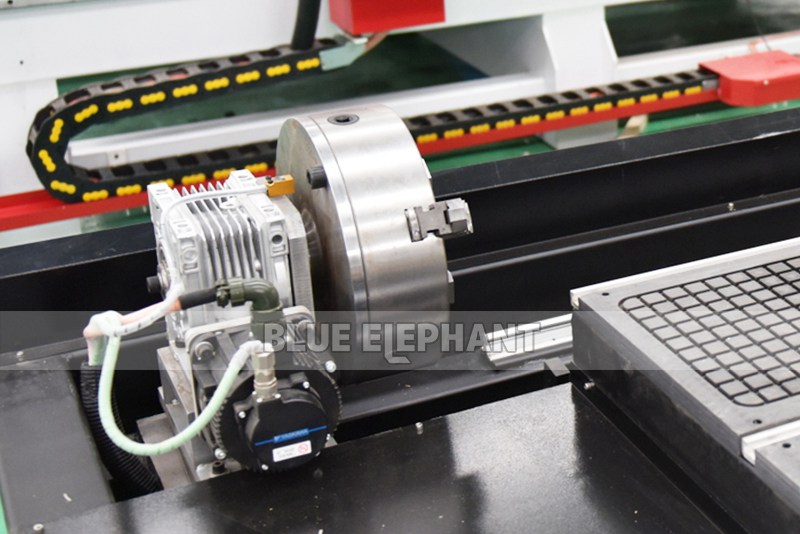

| Rotary device diameter | 300mm |
