Description

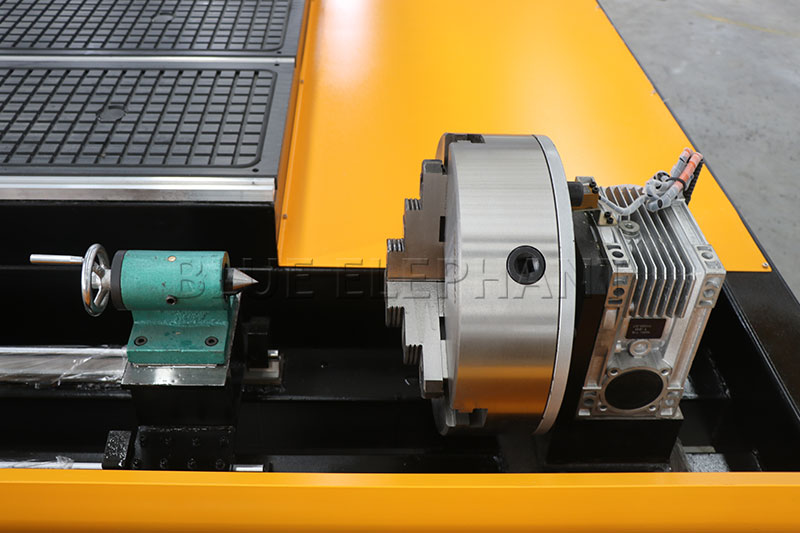

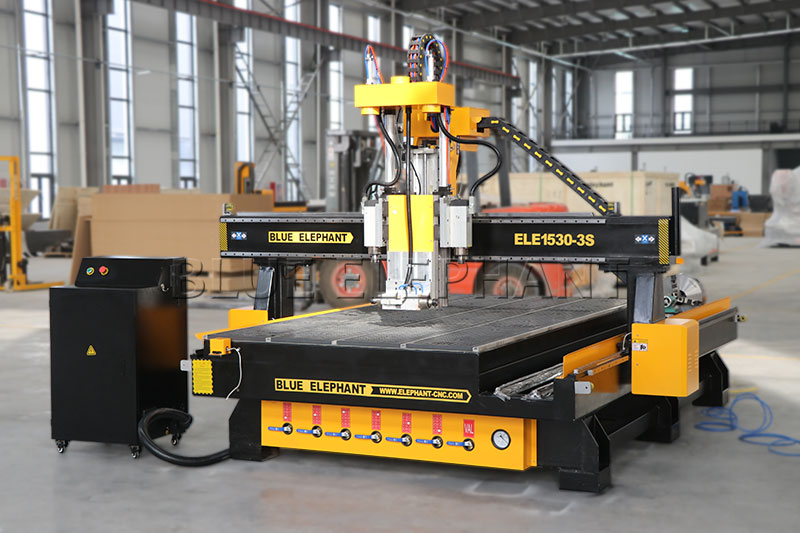

Rotary CNC router equipped with three spindles (two vertical and one horizontal) for enhanced processing efficiency. Featuring a DSP A123 control system and HQD air-cooled spindle, this machine is designed for long-term, efficient operation. Its rotary axis and rotating device expand its functionality, making it ideal for various industries. It is hot selling in Saudi Arabia, Ras Tanura, Dammam, Khobar.
Features
1. Robust heavy-duty pipe lathe ensures stable operation.
2. Vacuum workbench with strong adsorption force for secure material handling.
3. User-friendly design allows easy operation, even for beginners.
4. Equipped with a 1.5KW dual-bag dust collector for effective dust prevention.
Parameters
| Items | Parameter |
| Model | ELECNC-1530 |
| Working area | 1500 *3000*200mm |
| Spindle | 3.5KW HQD air cooling spindle |
| Dust collector | Carries a 1.5KW computer dual-bag dust collector, with good dust prevention effects. |
| Motor and drive | Stepper motor FL118 and Yako2811 bigger drivers |
| Control system | DSP A123 control system |
| Inverter | 3.7KW Fuling inverter |
| Working table | T-slot & vacuum working table |
| Vacuum pump | 7.5kw double stage air vacuum pump |
| Tool sensor | Auto tool sensor |
