Description

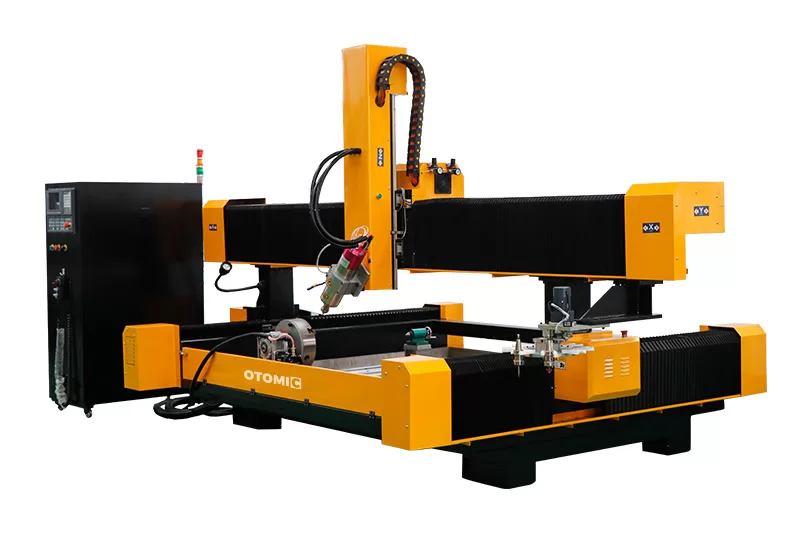

The CNC stone carving is equipped with a rotary automatic tool changer, and its rack and ball screw transmission ensure high efficiency, significantly improving the machine’s overall work performance. Assembled with a variety of well-known brand accessories, this machine is both durable and reliable. It is popular in Iran, Hormozgan Province, Abu Dhabi and passes through Bandar Abbas.
Features
- Sturdy Construction: The stainless steel worktable, combined with a heavy-duty body, ensures the machine is sturdy and wear-resistant.
- Safety and Cost Efficiency: German brand cables provide enhanced safety assurance and reduce maintenance costs.
- High Processing Efficiency: The rotary tool changer allows for convenient and quick tool changes, while the water-cooled spindle can reach speeds up to 18000rpm, enhancing overall processing efficiency.
- Customizable Rotary Device: The rotating device can be customized to meet diverse processing needs, providing flexibility for various applications.
Parameters
| Model | ELECNC2113ATC-4A |
| X,Y axis travel | 2100*1300mm, option: 1300*2500mm, 2100*3000mm, 2100*4000mm, etc. |
| Z axis travel | 600mm, option: 500mm, 600mm, 700mm, etc. |

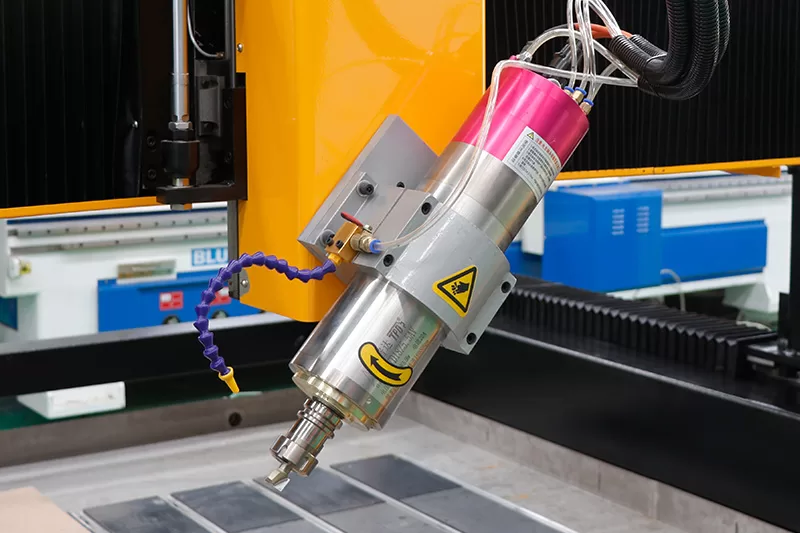

| Spindle type | 5.5kw ATC water cooling spindle, NBT30, ER32 |
| Inverter type | 5.5kw |

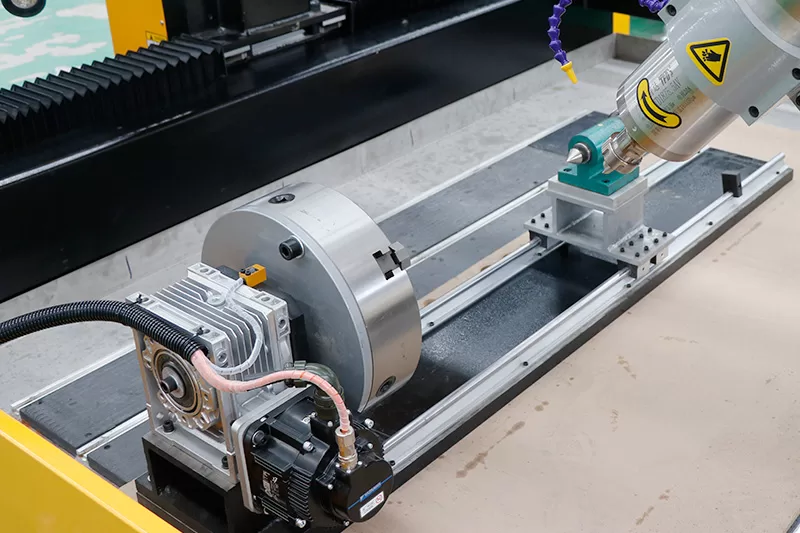

| The 4th axis | Cycloidal pin wheel precision reducer, with high transmission accuracy and torsional stiffness Can swing from -90 degree to +90 degree |

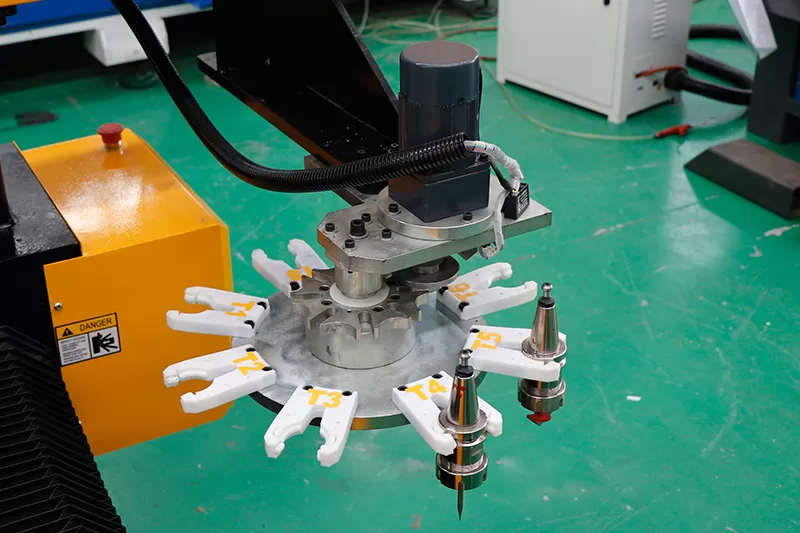

| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | NBT30,ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC /LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stainless work table |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |

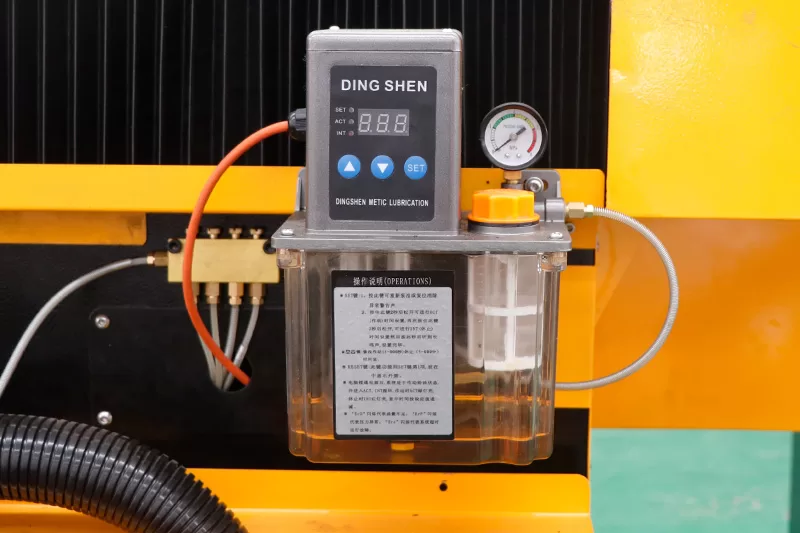

| Lubrication system | 1.5L automatic lubrication system |

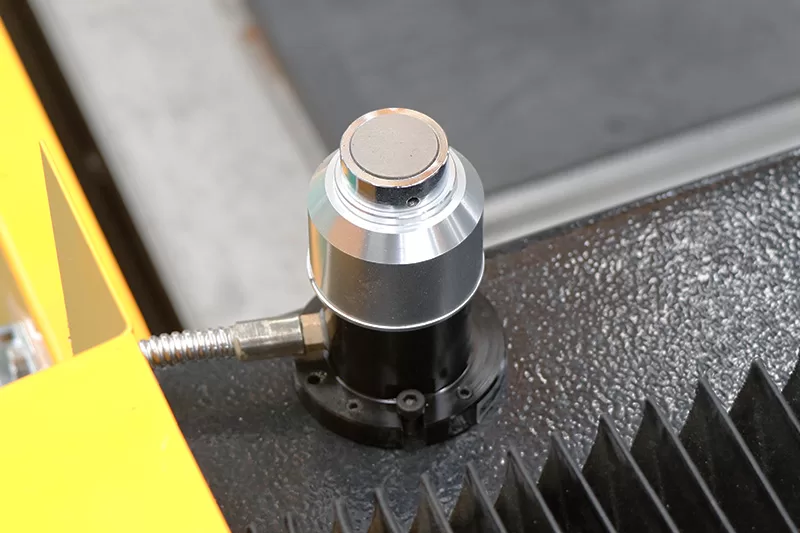

| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Cooling system | Water cooling |
| Compatible software | Powermill, UG, Alphacam, Fusion 360, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
