Description

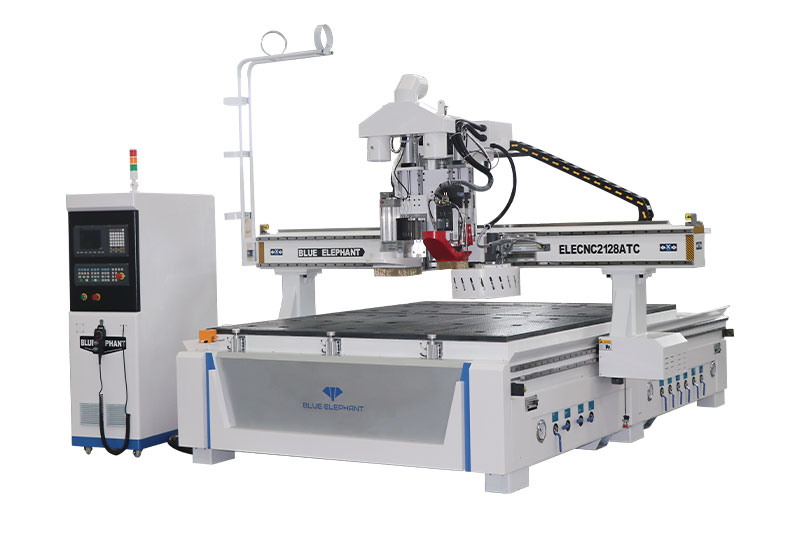

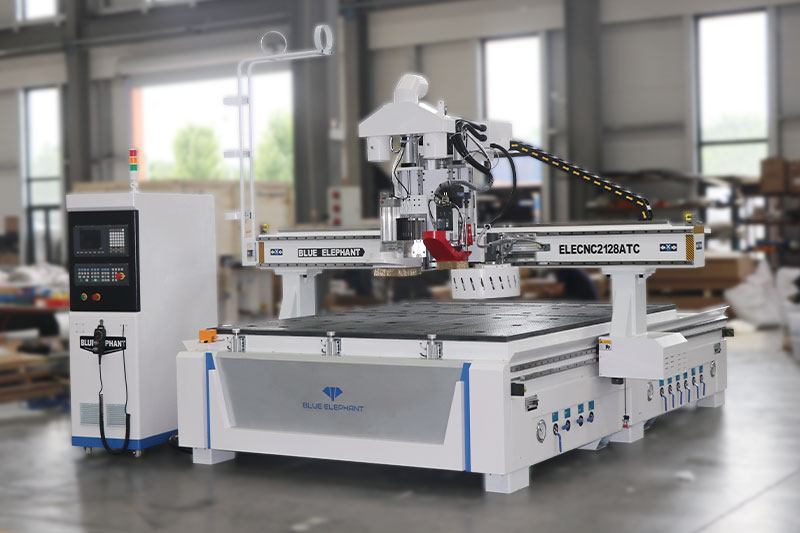

The Blue Elephant 2128 router ATC features an automatic tool changer with an 8-piece rotary tool magazine, ensuring high efficiency and smooth operation. Equipped with a Syntec 60WE control system and a 9.6kW Italy HSD spindle, this router ATC is perfect for precision woodworking and drilling tasks. It is popular in Khobar, Saudi Arabia, and Beirut, Lebanese Republic.
Features
- Equipped with a 9.6kW Italy HSD ATC air-cooled spindle for high-speed performance.
- Features an 8-tool rotary magazine for quick and efficient tool changes.
- Includes a Japan Shimpo reducer for smooth operation and stability.
- Comes with three 7.5kW water circulation vacuum pumps for easy maintenance.
Parameters
| Working area | 2070x2800x200mm |
| Spindle | 9.6kw Italy HSD ATC air cooled spindle, ES951 |
| Spindle speed | 24000RPM |
| Inverter | 11kW Taiwan Delta inverter |
| Tool magazine | This machine comes with a rotary tool library with 8 tools. |
| Control system | Syntec 60WE control system with MPG handwheel |
| Motor and driver | 850w Japan Yaskawa servo motor and 1000w driver |
| Working Table | Full vacuum working table |
| Limit switch | Japan OMRON limit switch |
| Tool holder | ISO30 tool holder |
| Reducer | Japan Shimpo reducer |
| Lubrication system | Automatic lubrication |
| Voltage | 380V, 50Hz, 3phase |
| Vacuum pump | 3*7.5kw water circulation vacuum pump |
| X,Y,Z Transmission | Taiwan J&T helical rack gears transmission |
| X,Y,Z Rail | Taiwan PMI linear guide rails, #30 |
