Description

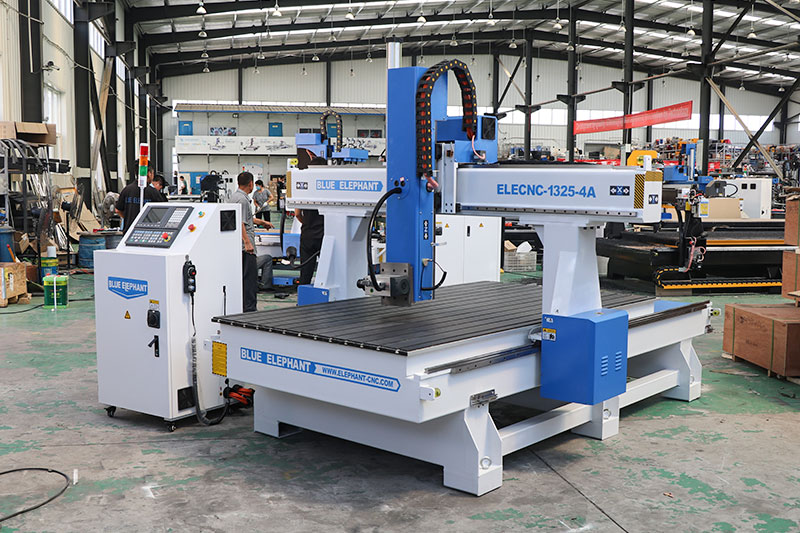

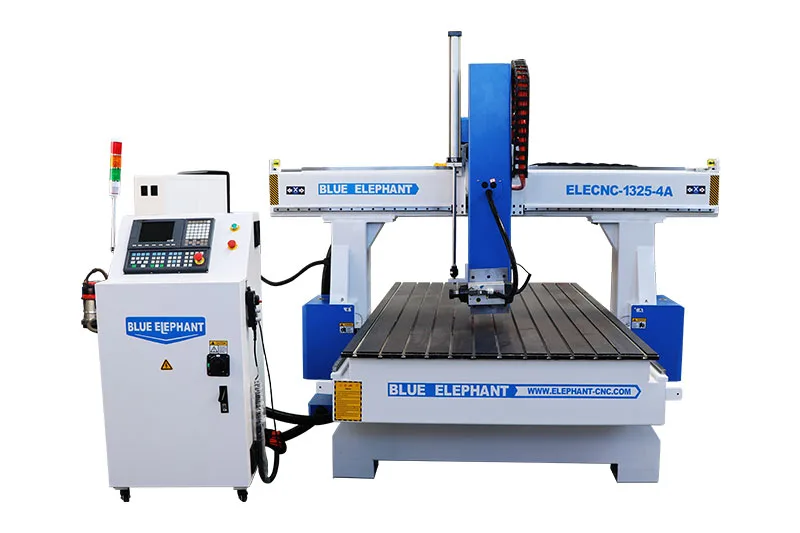

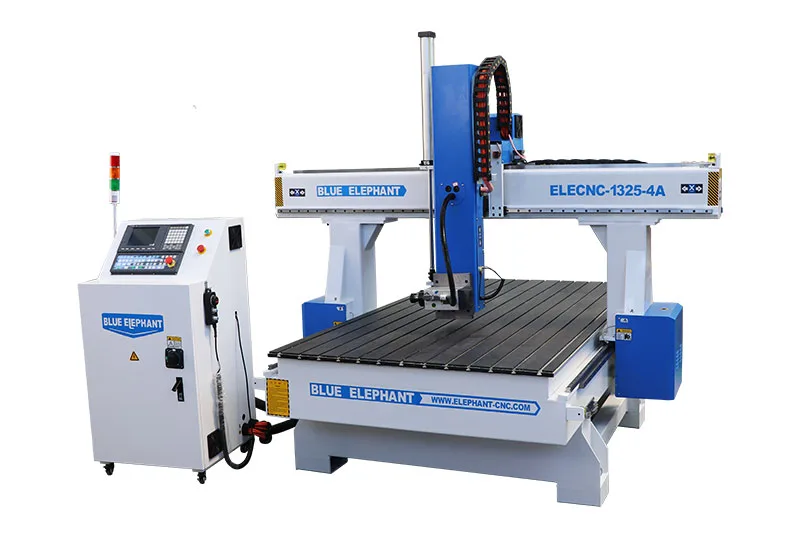

The 4 axis CNC woodworking machine is a potent tool for 3D wood carving. With a standard workbench size of 1300*2500mm (4*8 feet), this machine offers customization for specific specifications. It is an excellent aid for accomplishing intricate 3D carvings. It is hot selling in Iraq, Umm Qasr, Al Faw, Jordan.
Features
- The machine is customizable, allowing for specific workbench sizes, z-axis heights, and working voltage selections.
- It is equipped with an HSD air-cooled spindle that swings 180 degrees, specifically designed for processing 3D engravings.
- The machine features an automatic lubrication system and linear guide device, ensuring smooth processing and optimal processing speed.
- Powered by four servo motors and drivers, the machine boasts robust performance and can efficiently process complex objects.
Parameters
| Model | ELECNC1325-4A |
| X,Y axis travel | 1300*2500mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 400mm, option: 500mm, 600mm, etc |
| Spindle type | 6kw air cooling spindle |
| Inverter type | 7.5kw |
| The 4thaxis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Control system | Taiwan SYNTEC controller |
| Driving system | 1kw Japan YASKAWA AC servo driverand 850w AC servo motor, 4 sets. |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Powermill, UG, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
