Description

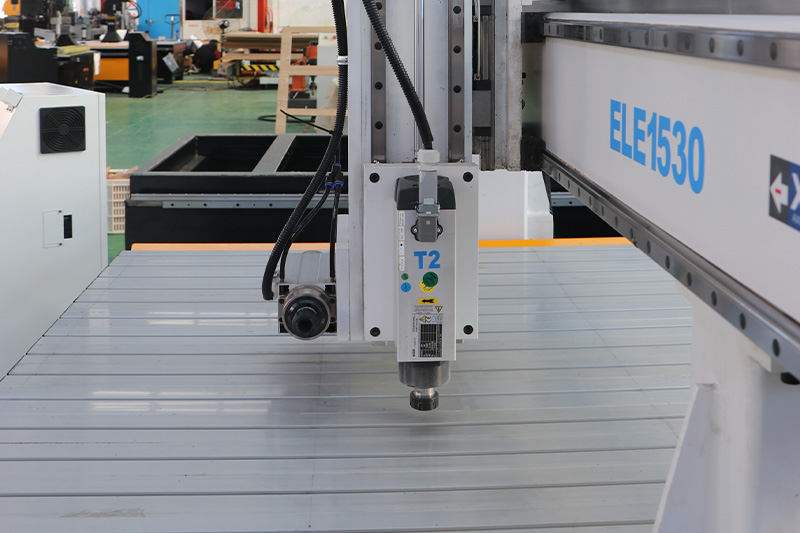

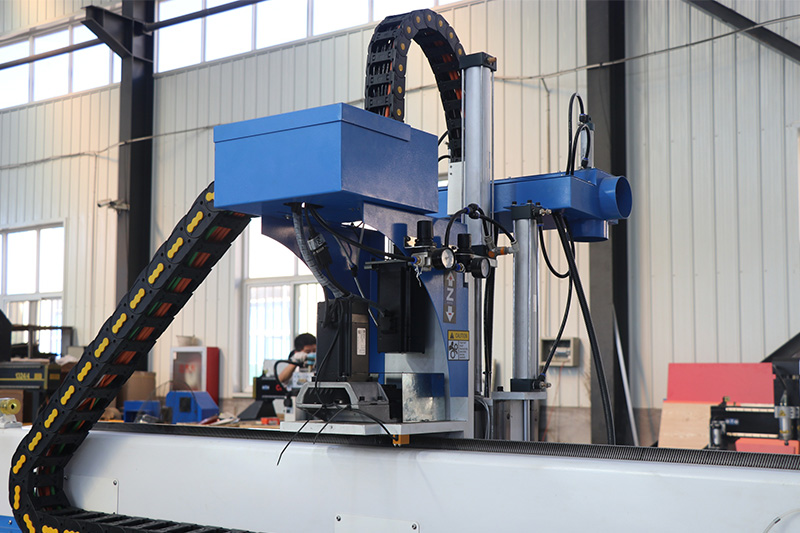

This is a cost-effective three-head 1530 CNC engraving machinery. It’s designed for ease of use, allowing you to get started in just one hour with no prior training required. The CNC engraving machinery is versatile and can be utilized as a plywood door furniture maker. It features a T-slot table with a vacuum table. It is hot selling in Saudi Arabia, Jeddah, Yanbu, Dammam.
Features

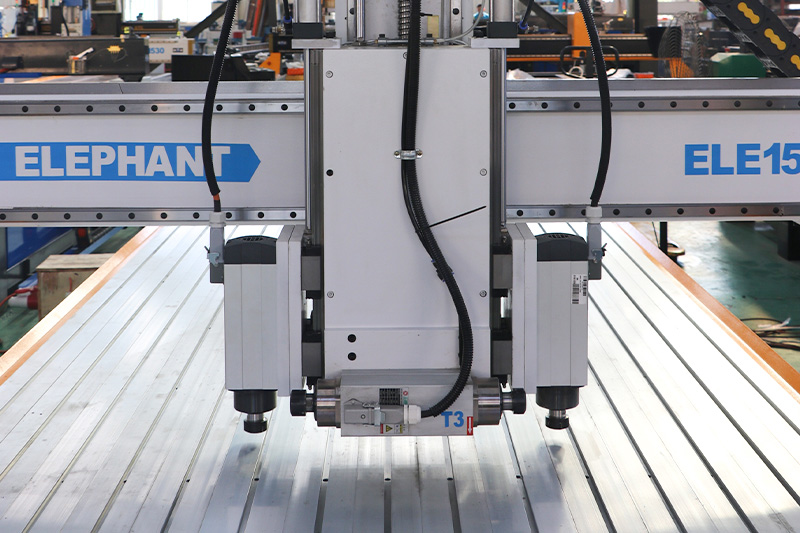

- The machine is equipped with three spindles that can operate independently, enhancing work efficiency.
- It comes with two sets of HSD air-cooled spindles and one set of Changsheng spindles.
- All specifications can be customized to suit your specific needs.
Parameters
| Description | Parameter |
| Model | ELECNC-1530-3S |
| X,Y,Z Working Area | 1500*3000*200mm |
| Control system | DSPA15 control system |
| Working Voltage | 380V 3phase, 50Hz(Option) |
| Spindle | 3kw Italy HSD Air Cooling Spindle*23.5kw Changsheng double head, Horizontal installed |
| Inverter | 3.7kw DELTA inverter |
| Motor and driver | This machine uses a 750W Leadshine servo motor and driver. |
| Table Surface | T-slot & vacuum working Table |
| Table structure | This machine uses a heavy-duty welded frame and gantry. |
| X, Y, Z Transmission | Helical rack on X,Y axis and Taiwan TBI ball screw on Z axis |
| X,Y, Z Rail | ABBA/PMI 25# linear guide |
| Lubrication system | Automatic lubrication system |
| Dust Collector | Classic type double bags dust collector 3.0kw |
| Wire | It uses a high-flex Shjeld with copper wire, which has the advantage of preventing static electricity and offers high safety. |
