Description

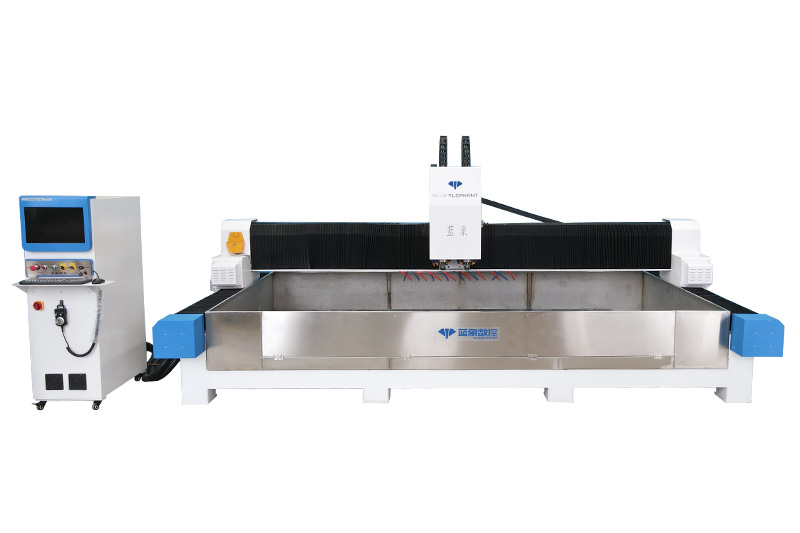

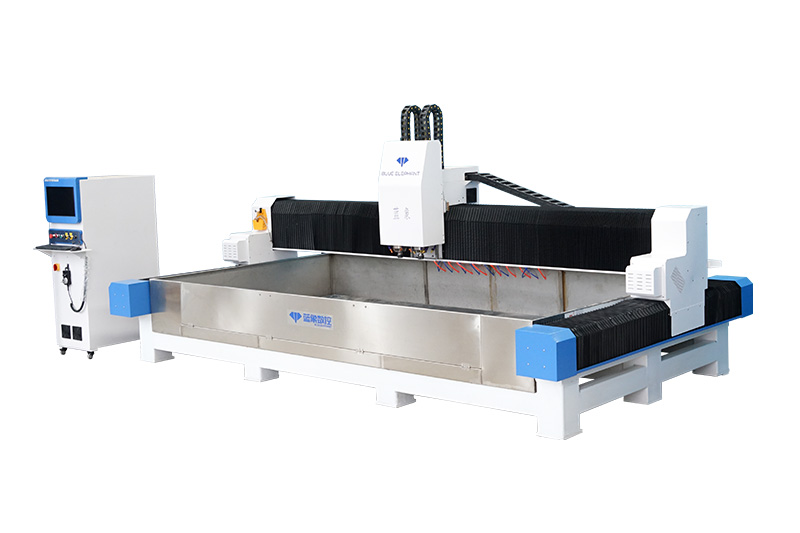

Our two-process stone cutting CNC center is a versatile machine designed for diverse stone processing needs. It features two independent spindles and is equipped with advanced accessories, making it ideal for cutting, grinding, and polishing granite and other materials. Customization options are available for voltage, working area, and more. It is hot selling in Jordan, Aqaba, Bahrain, Israel.
Features
- One-click switch between table edging and engraving, enhancing equipment utilization and offering practical and cost-effective solutions.
- Compact design saves floor space, with customizable working dimensions to suit specific needs.
- Employs a 1.5kw servo motor and driver for high power, fast speed, and efficient processing time.
- Robust machine body and dual-spindle automatic switching provide a blend of flexibility and reliability. The machine is sturdy, durable, and delivers high precision.
Parameters
| Model | ELECNC1530 |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm，etc |
| Spindle type | 5.5kw water cooling spindle*2, |
| Inverter type | 5.5kw inverter |
| Control system | Weihong 95A-3L controller |
| Driving system | 1.5kw servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Command Language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-30m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/ 3PH 50HZ/ 60HZ 380V 3PH 50HZ/ 60HZ |
Optional Items
| Working area | 1500x3000x300mm |
| Voltage | 380V/50Hz/3P |
| Spindle power | Shengfeng 5.5kWx2 water-cooled spindles |
| Control system | Ncstudio 95A-3S |
| Motor and driver | 1.5kW Dongling |
| Reducer | Shimpo |
