The slab & tile cutting line, equipped with multiple functions including scanning, automatic cutting, milling, drilling, and polishing, simplifies the production process. Its ability to automatically load and unload materials makes it an ideal choice for the stone processing industry.

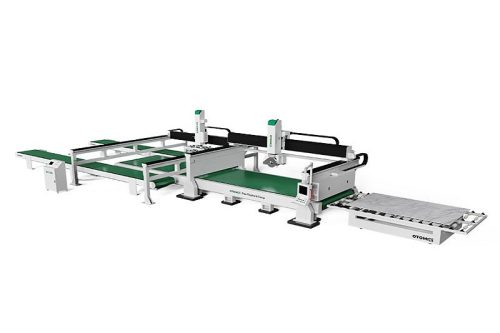

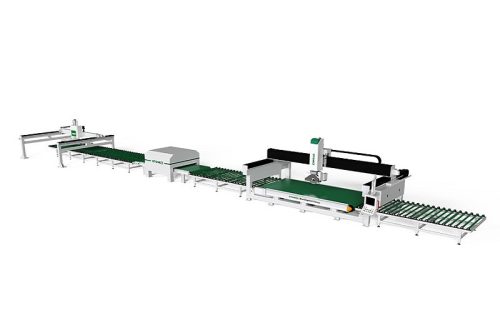

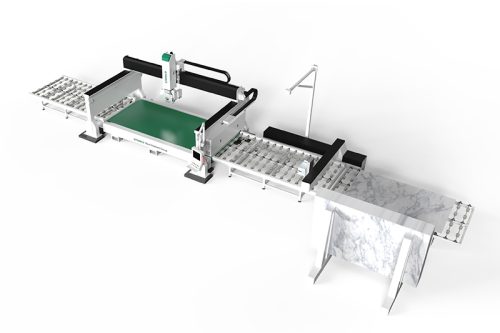

The slab & tile cutting line, with its high automation, low cost, and high efficiency, is composed of a 4-axis and 5-axis bridge cutting machine, loading and unloading equipment, and a plate thickness machine. It is suitable for multi-angle cutting and polishing of granite, marble, and quartz stone. The integrated production greatly improves production efficiency and saves labor. The machine is very popular in United Arab Emirates, Dubai, Fujairah.
Automatic Loading: Simply place the material on the loading machine and it will be transported automatically, saving both loading time and manpower.
High-Precision Cutting: The bridge saw machine can automatically take pictures through the camera, accurately locate the cutting point, and perform high-quality cutting according to the set path.
High Degree of Automation: The system automatically adjusts the knife and moves the stone slab when the spindle is cutting. There is no need to stop the machine for manual movement, which greatly improves work efficiency and saves manpower.
Automatic Unloading: The unloader can automatically classify and unload processed materials, saving unloading time.
| QX3400-5X-SP Quartz Stone Cutting Production Line | |||
| Bridge Saw | Working travel | X, Y, and Z | 3400*2000*250mm |
| C axis | ±365° | ||
| A axis | 0-90° | ||
| Maximum thickness | 80mm | ||
| Moving speed | 25m/min | ||
| Spindle | 22kw water cooling spindle, 4000rpm | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Worktable (optional) | Max. weight for feeding | 1500kg | |
| Max. speed for feeding | 10m/min | ||
| Saw | Dimension | 450mm | |
| Size | 6000×3500×3600mm | ||
| Loader | Working travel | X, Y, and Z | 3500*4000*1000mm |
| A axis | 0-90° | ||
| Control system | CutCam | ||
| Motor | CutCam servo | ||
| Reducer | Japan SHIMPO | ||
| Moving speed | 25m/min | ||
| Max suction size | 3200×1200mm | ||
| Min suction size | 300×150mm | ||
| Power | 8kw | ||
| Weight | 3000kg | ||
| Machine size | 5000×5800×3800mm | ||
The slab & tile cutting line integrates the production process into one, simplifying the process. It can process plates of multiple angles and shapes, and is capable of cutting natural stone, artificial stone, ceramic tiles, concrete, and other plates, bricks, etc.

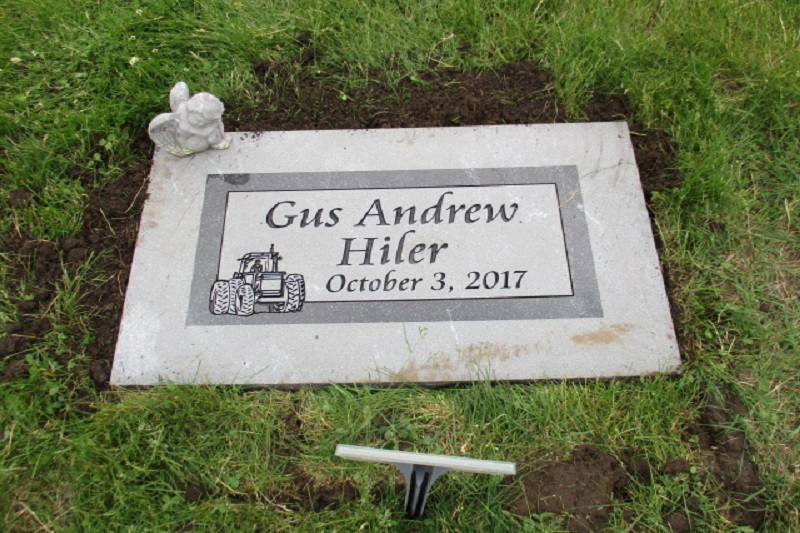

The slab & tile cutting line cuts and shapes slabs for precise production of kitchen countertops, sinks, etc.
High production efficiency, can batch process stones and ceramic tiles of various sizes.

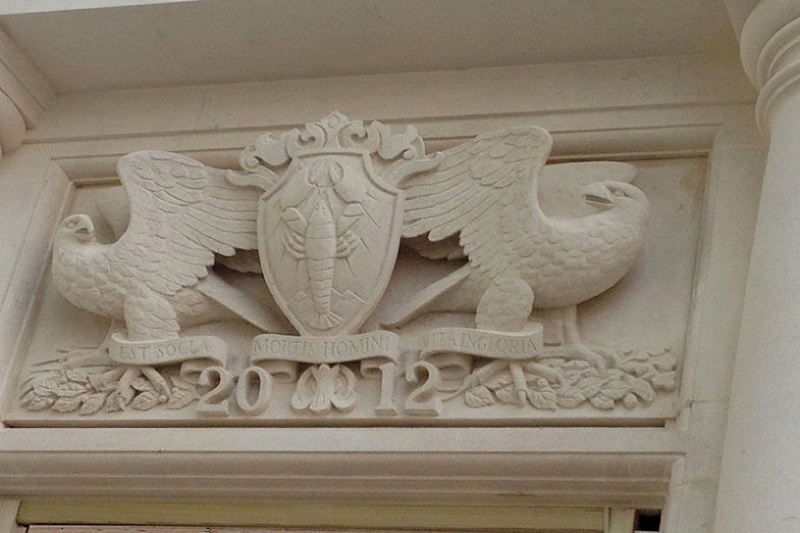

Processing complex and fine patterns, suitable for manufacturing complex special-shaped architectural elements.

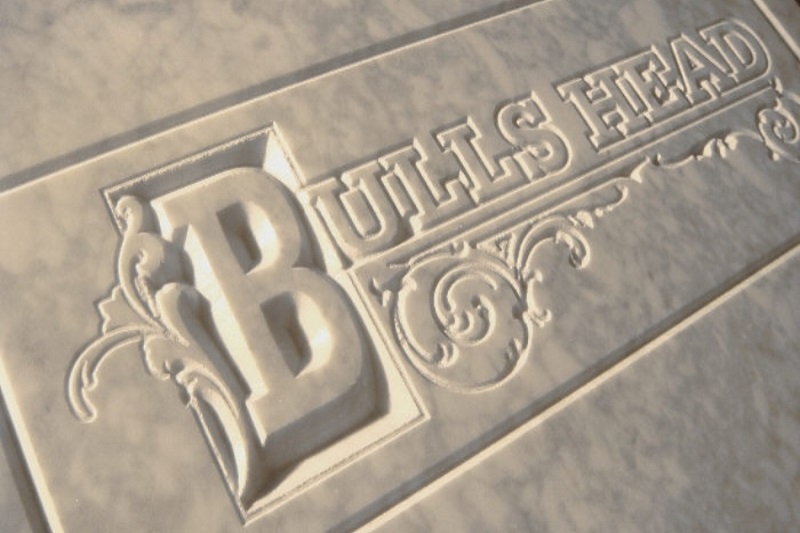

Camera positioning and cutting enables more precise processing, and can also realize the craftsmanship of stone tablet engraving.
High-precision carving can be performed from any angle, transforming artistic ideas into physical artworks more accurately.
You can fill out our form for customized cooperation
It can complete various stone processing such as stone edge milling, curved stone edge trimming, stone countertop cutting and milling, inclined stone edge trimming, curved stone edge trimming, and washbasin cutting.
1.Spindle power: One type is a low-power spindle, which has a small scope of application and is only suitable for processing materials such as color plates, small signs, and three-dimensional processes. The other is a high-power spindle, which is divided into two types. One is a large stone CNC machine tool, the working size is generally more than 1 meter, but the processing accuracy is generally very poor; the other is a medium-sized stone CNC machine tool, generally used for fine processing.
2.Spindle motor: The spindle needs to work when there is a high voltage. If the motor is not very good, the service life and efficiency will be affected.
3.Adjust the spindle speed range: Generally, the adjustable speed range is from several thousand to 30,000 revolutions per minute. If the speed is not adjustable or the adjustable speed is small, it indicates that its application range is very limited.
4.Car body manufacturing process: High-power machine tool car bodies must be precise and stable when working. Therefore, in order to ensure its processing accuracy and stability, machine tool body casting should be used.
5.Ball screws and guide rails: Affect the accuracy and usage time of the machine.
