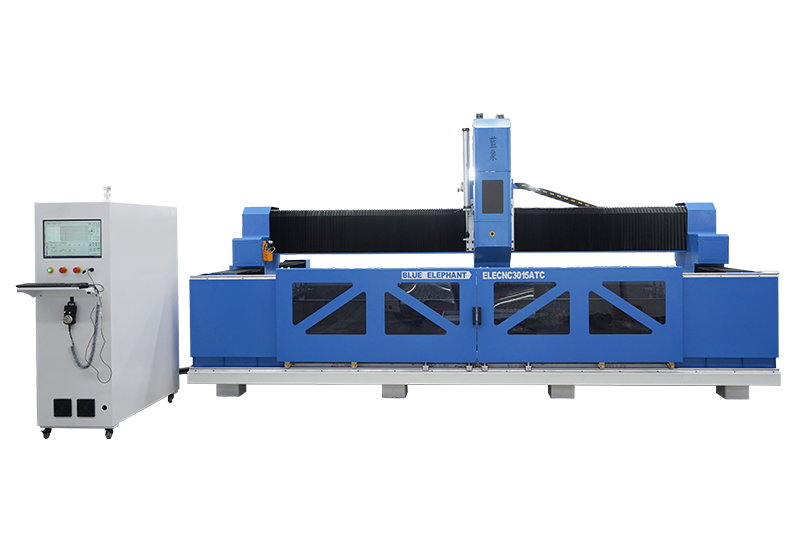

The stone machining center is primarily designed for the precise cutting and polishing of stone slabs. It excels in handling materials such as stone, kitchen countertops, ceramics, and more, enabling intricate and accurate carvings.
The stone machining center is a versatile and multifunctional CNC engraving machine designed for stone manufacturing. It integrates cutting, contouring, milling, and 3D engraving, enabling a variety of complex fine processes. The automation system enhances production efficiency, allowing for multifunctional and high-precision processing. It is warmly welcomed and widely used in Bahrain, Muharraq, Syria, Qatar.
Professional Design: The stone machining center is specifically engineered for refined stone cutting and is an ideal tool for large stone processing.
Multifunctional Processing: Equipped with a linear tool magazine with multiple knives and a professional stone processing spindle, it can perform fine cutting, engraving, polishing, and other types of stone processing.
Robust and Reliable: The heavy-duty machine tool and hard table design, along with a larger frame, ensure stronger and more stable operation performance, leading to a longer service life.
Wide Application: With its multifunctionality and high automation efficiency, it is widely used in stone plate cutting, tombstone milling, stone carving, advertising, and the kitchenware industry.
| Model | 5×10 ATC Stone CNC Machining Center for Stone Fabrication |
| Working area | 3000x1500x400mm |
| Spindle | KCA1410P-CTS spindle |
| Spindle speed | 10000RPM |
| Tool magazine | Linear tool magazine with 12 tools |
| Control system | NC60A control system for stone machine |
| Motor and driver | Japan YASKAWA servo motor, 7.5kw CTB servo motor for spindle |
| Working Table | Phenolic board hard table, equipped with 8 suction cups |
| Tool holder | BT40 tool holder |
| Reducer | Japan Shimpo reducer/ |
| Lubrication system | Automatic lubrication |
| Voltage | 380V, 50Hz, 3 phase |
| X,Y,Z Transmission | Helical rack gears transmission on X, Y axis, Taiwan TBI ball screw transmission on Z axis |
| X,Y,Z Rail | Taiwan PMI linear guide rails, #35 for Y axis, #30 for XZ axis |
The stone machining center, with its high degree of automation, multi-functionality, high efficiency, stability, and durability, enables multi-angle stone machining, relief, line carving, hollowing, and other processes. It finds wide applications in various industries such as kitchen sinks, countertops, mold industry, advertising industry, kitchenware industry, arts and crafts decorations, and more in Dubai.
The stone processing center can cut, chamfer, and polish granite, marble, etc., and is suitable for making kitchen sink incisions and water channels.

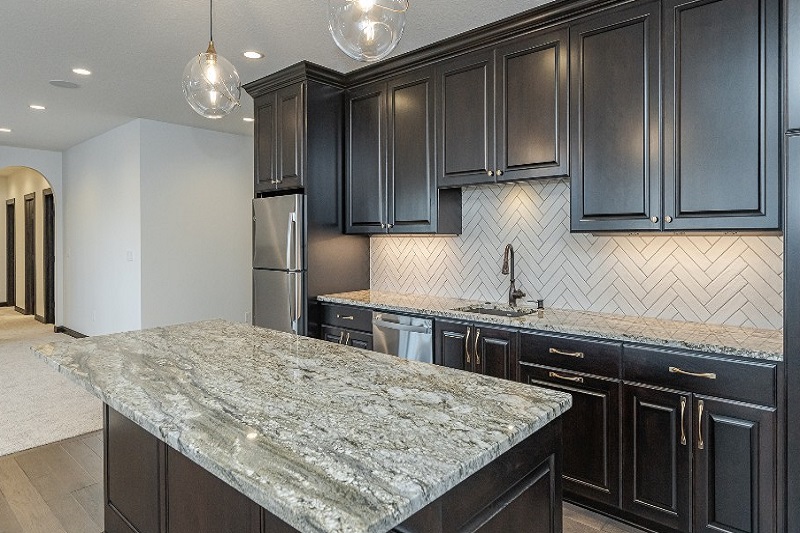

The stone processing center can cut plates of different sizes and angles, and is suitable for processing kitchen and bathroom countertops.
It can realize cutting and engraving at various angles, high-precision processing reduces errors, and can be used to process high-quality architectural elements.
Based on automated settings, creative designs can be accurately expressed on stone to achieve engraving and contour edge milling.
Advanced technical accessories can perform complex engravings and can be used in the decoration industry, such as relief and stone carving.
We have obtained more than 50 patents and certificates such as CE, ISO9001, BV, SGS, TUV, etc.
1. If the spindle cannot operate normally, first check whether an error code is displayed under the LED display. Check whether the reverse phase motor wire of the motor is interchanged at both ends of the output UVW terminal.
2. The stone engraving machine has a three-axis axis that cannot move. At this time, check whether the driving block corresponding to the corresponding axis is damaged. The inspection method can be replaced by the replacement method: unplug the plug corresponding to the fixed shaft, and unplug the plug corresponding to the driver of other aviation active shafts.
3. If the replacement shaft cannot move normally, it means that the corresponding shaft drive block is damaged and the drive block needs to be replaced. If the axis does not move or does not move, the cable or motor is faulty, replace the cable or motor. The three axes do not move. At this time, please check whether the three-axis control box is connected to the aviation plug and whether the control box is opened. Check whether the data cable is connected to the control box and computer host control card.
If all the above are normal, please contact us.
A machining center is a CNC milling machine that can mill, drill, drill, tap and perform various other tasks without changing the attachment of the workpiece. It is more efficient in small batch and multi-variety production because it can reduce cutting time and improve processing efficiency.
